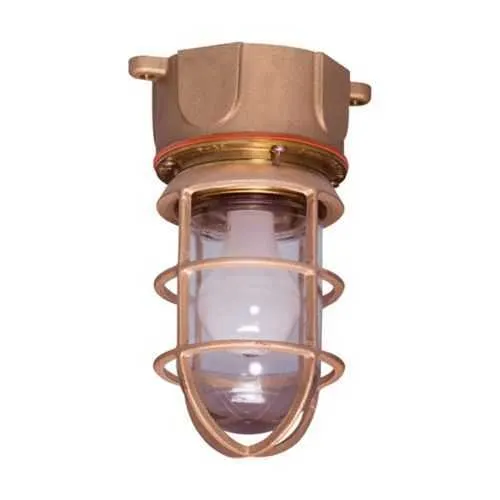

Eaton 717B-C1 Globe & Guard - IP66 Rated, 300VAC
Part Number: 717B-C1
Quick Summary
The Eaton 717B-C1 globe and guard provides rugged ceiling-mounted illumination for industrial environments. This compact globe assembly protects the lamp while delivering reliable light in manufacturing, maintenance bays, and warehouse spaces. A common challenge is keeping lighting resilient against vibration, dust, and incidental impact; the 717B-C1 addresses that with a brass guard and glass globe designed for through-feed wiring. It meets NEC/CEC standards and offers IP66 ingress protection for ordinary, non-hazardous locations, ensuring safe operation in harsh conditions. By leveraging a medium base incandescent lamp and a max 2 × 27 W configuration, this fixture delivers straightforward maintenance and predictable performance. In short, it supports uptime while keeping total cost of ownership low through durable construction.
Product Information
Extended Description
717B-C1 Eaton: Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard, Medium base, 50/60 Hz, Glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Ceiling mount, Through feed, 1/2", 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard
Catalog Number
717B-C1
UPC
662276385764
Product Length/Depth
4.5 in
Product Height
9.13 in
Product Width
5.13 in
Product Weight
6.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Trade size
1/2"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Special features
Through feed
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1390 - Pauluhn 717 Incandescent
Eaton Specification Sheet - 717B-C1
The brass guard and glass globe provide rugged protection for the lamp, reducing breakage and downtime in busy industrial spaces, which translates to fewer maintenance calls and longer interval maintenance planning. This feature directly supports reliability in environments with incidental impacts and exposure to dust, improving overall equipment uptime. The IP66 rating protects against dust intrusion and powerful jets of water, enabling safe operation in damp or dusty manufacturing areas while maintaining compliant lighting performance. Through-feed wiring with a 1/2" trade size simplifies field installation and future upgrades, reducing commissioning time and enabling easier retrofits in existing conduits. The 2 × 27 W incandescent lamps with a medium base permit straightforward lamp replacement and predictable color rendering, helping maintenance teams plan replacements without specialized parts. Ceiling mounting and brass guard compatibility align with Pauluhn 717 series fixtures for standardized installation across facilities. This combination supports cost-effective lifecycle management, easier stocking of spare parts, and reliable performance across 50/60 Hz electrical systems, while maintaining compliance with NEC/CEC standards and ordinary locations requirements.
Get a Quick Quote for a Eaton 717B-C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 717B-C1?
Enquire Now
FAQs
The 717B-C1 is designed for ceiling mounting with a 1/2" trade size and through-feed wiring. This simplifies retrofits in existing conduits and reduces downtime during installation. Ensure a secure mounting surface and appropriate wiring to support 300 VAC operation and 50/60 Hz supply. The medium base companion lamp also facilitates straightforward lamp replacement.
Its brass guard and glass globe provide robust protection against incidental impact and dust, while IP66 ingress protection guards against water intrusion in damp or dusty spaces. Combined with NEC/CEC compliance and ordinary/Non-Hazardous Location classification, the fixture offers reliable performance in manufacturing, warehousing, and maintenance areas without special safety concessions.
The fixture is specified for incandescent lamps with a total of 2 × 27 W, using a medium base and max lamp size of A-19. Substituting higher wattage or non-incandescent lamps is not recommended, as it can impact thermal performance, ballast independence, and IP66 protection. Always replace with approved A-19 incandescent lamps within the 2 × 27 W limit.
The 717B-C1 adheres to NEC/CEC standards and is certified for Ordinary/Non-Hazardous Locations. Its IP66 rating provides environmental protection, and the fixture is suitable for ceiling-mounted installations in general industrial settings, including manufacturing and warehousing, where non-hazardous locations apply.
The brass guard and glass globe design minimizes lamp breakage and shield damage, reducing maintenance frequency in tough facilities. Its straightforward installation, standard lamp replacement (2 × 27 W), and compatibility with through-feed wiring help shorten downtime during service windows. Over time, this translates to lower maintenance costs and improved uptime for critical industrial areas.
