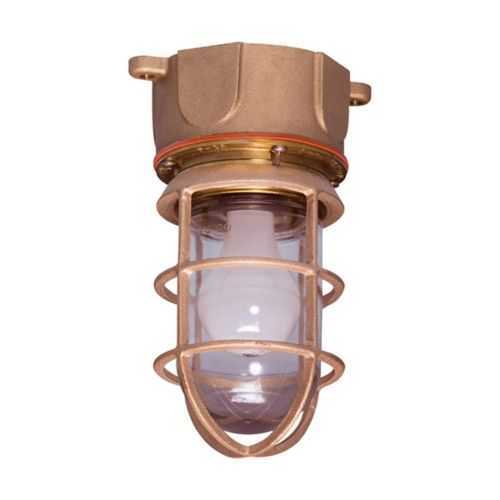

Eaton 717B7 Industrial Globe and Guard - IP66
Part Number: 717B7
Quick Summary
Eaton 717B7 industrial globe and guard provides rugged illumination for demanding industrial environments. This ceiling-mounted fixture shields a 150W incandescent lamp with a glass globe and brass guard, helping to reduce breakage and maintenance downtime. The design complies with NEC/CEC requirements and is rated IP66 for dust and water ingress, making it suitable for ordinary/non-hazardous locations. By leveraging a brass guard and durable brass components, facilities can improve uptime while simplifying procurement and maintenance planning. The fixture supports a medium base lamp up to A-21 size at 300 VAC, aligning with standard industrial wiring schemes. For contractors and procurement teams, this fixture offers reliable performance with straightforward installation and long service life.
Product Information
Extended Description
717B7 Eaton: Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard, Medium base, 50/60 Hz, Glass globe, With cast brass guard, Incandescent, Brass, A-21 max. lamp size, Ceiling mount, 300 Vac, 150W
Product Name
Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard
Catalog Number
717B7
UPC
662276385740
Product Length/Depth
4.5 in
Product Height
9.88 in
Product Width
5.13 in
Product Weight
7.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling
Lamp type
Incandescent
Wattage
150W
Lamp size - max
A-21
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds 717B7 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1390 - Pauluhn 717 Incandescent
Eaton Specification Sheet - 717B7
Feature: Brass guard and glass globe protect the lamp. Benefit: Reduces lamp breakage and maintenance downtime in harsh environments. Application: Ideal for manufacturing floors and warehouses where overhead lighting endures physical exposure. Feature: IP66 ingress protection. Benefit: Keeps dust and moisture out, improving reliability in damp or dusty areas. Application: Washdown zones and maintenance bays in non-hazardous spaces. Feature: Electrical compatibility with 300 VAC and 50/60 Hz. Benefit: Broad wiring compatibility lowers installation time and avoids custom transformers. Application: General industrial power distribution and control rooms. Feature: Medium base and max A-21 lamp size (150W). Benefit: Easy retrofits with standard incandescent lamps, reducing replacement costs. Application: Upgrading legacy lighting in existing ceilings. Feature: Ceiling mounting and brass guard construction. Benefit: Simple installation and long service life with robust protection. Application: Overhead lighting in assembly lines and storage areas. Feature: NEC/CEC compliance. Benefit: Meets essential regulatory requirements, aiding audits and procurement. Application: Facility engineering and compliance documentation. Feature: Availability of 3D CAD drawings and catalogs. Benefit: Accelerates design reviews and procurement decisions. Application: BIM, electrical design, and project planning.
Get a Quick Quote for a Eaton 717B7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 717B7?
Enquire Now
FAQs
The 717B7 is designed for ceiling mounting, using a medium base and supporting lamps up to 150W with an A-21 size maximum. This makes retrofits straightforward on existing ceilings and in new installations where standard incandescents are still preferred. The fixture accommodates 300 VAC power and 50/60 Hz lighting systems, streamlining electrical coordination on site.
717B7 is specified for Ordinary/Non-Hazardous Locations and carries an IP66 rating for dust and water ingress protection. While it excels in dusty, damp, or washdown-adjacent spaces, it is not intended for hazardous locations. For such environments, consider dedicated hazardous-location lighting models compatible with NEC/CEC requirements.
This fixture adheres to NEC/CEC standards, ensuring compliance with common electrical codes for industrial installations. The IP66 ingress protection rating provides assurance against dust and powerful jets of water, while the Ordinary/Non-Hazardous Locations classification informs proper application in non-explosive settings. These certifications support safe procurement and regulatory audits.
The 717B7 measures approximately 4.5 inches in depth, 9.88 inches in height, and 5.13 inches in width, with a total weight of about 7.1 pounds. This compact, ceiling-mounted form factor simplifies installation in existing ceiling grids and reduces load impact on mounting structures while providing robust protection for the lamp.
Installers and designers can access multiple resources, including installation instructions IF LBL1390, the Eaton 717B7 specification sheet, and 3D CAD drawing packages. Catalog pages for the Crouse-Hinds Pauluhn 700 series provide broader context, while downloadable PDFs support accurate part selection, wiring, and mounting guidance for fast, compliant deployments.
