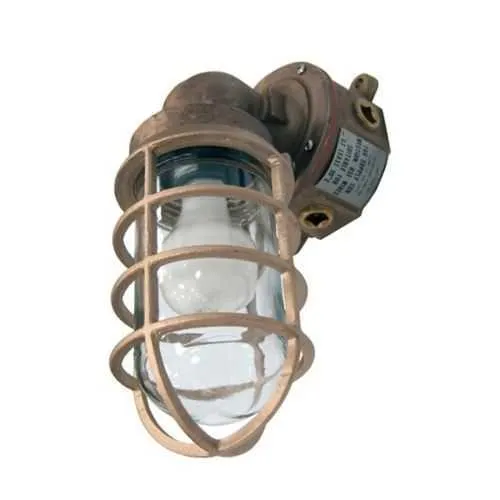

Eaton 717BM7D2SP Hazardous Globe and Guard - IP66
Part Number: 717BM7D2SP
Quick Summary
The Eaton 717BM7D2SP hazardous globe and guard provides reliable illumination for hazardous-area applications. The globe and brass guard design protects the glass from impact while enabling straightforward maintenance in demanding environments. A common pain point is fixture downtime caused by moisture ingress, improper sealing, or fragile enclosures; this model addresses that with tough brass construction, IP66 ingress protection, and a rugged shockproof lamp holder. It carries NEC/CEC compliance with Class I, Division 2 and Zone 2 ratings and NEMA 4X weather resistance, ensuring reliable operation and worker safety. In addition to meeting stringent codes, its ceiling-mount with junction box option and compatibility with A-21 incandescent lamps offer long-term value for retrofit or new installs.
Product Information
Extended Description
717BM7D2SP Eaton: Eaton Crouse-Hinds series Pauluhn 717 hazardous area globe and guard, Medium base, Clear glass globe, With cast brass guard, Incandescent, Brass, A-21 max. lamp size, Ceiling with junction box mount, Shockproof lamp holder, 250 Vac, 150W
Product Name
Eaton Crouse-Hinds series Pauluhn 717 hazardous area globe and guard
Catalog Number
717BM7D2SP
UPC
662276385801
Product Length/Depth
4.5 in
Product Height
9.88 in
Product Width
5.13 in
Product Weight
6.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling with junction box
Lamp type
Incandescent
Lamp size - max
A-21
Wattage
150W
Base type
Medium
Guard type
With cast guard
Guard material
Brass
Globe color
Clear
Globe material
Glass
Voltage rating
250 Vac
Special features
Shockproof lamp holder
Pauluhn 700 Series Incandescent Hazardous Area Globe and Guard Fixture catalog page
Eaton Specification Sheet - 717BM7D2SP
Brass guard with a clear glass globe delivers rugged protection for hazardous area lighting, reducing lens breakage and maintenance downtime. This guard design also preserves visibility for operators and inspectors in busy production zones, making ceiling-mounted fixtures in chemical plants and refineries more durable and easier to service. Incandescent lamp, up to 150W with a medium base, aligns with existing industrial power systems and minimizes retrofitting costs, while the 250 VAC rating supports common plant electrical distribution and simplifies parts inventory. IP66 ingress protection and NEMA 4X enclosure ratings provide washdown-ready safety and regulatory compliance for Class I, Division 2 / Zone 2 environments. Ceiling-with-junction-box mounting streamlines installation in retrofit projects and new builds, reducing field labor and disruption. The shockproof lamp holder mitigates vibration-related failures, extending lamp life and lowering maintenance costs. Together, these features deliver reliable illumination, lower total cost of ownership, and confidence in safety-critical operations across oil & gas, chemical processing, and heavy manufacturing facilities.
Get a Quick Quote for a Eaton 717BM7D2SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 717BM7D2SP?
Enquire Now
FAQs
Installers should plan for ceiling-mounted placement with a junction box, ensuring the fixture is securely fastened and grounded per NEC guidelines. Use appropriate armored cable or conduit, maintain the IP66/NEMA 4X enclosure integrity, and verify Class I, Division 2 / Zone 2 compliance during wiring. Allow access for lamp replacement with the brass guard intact to preserve protection.
The 717BM7D2SP supports up to 150W incandescent lamps with a medium base and a 250 VAC rating. It uses A-21-sized lamps and is designed for standard industrial electrical distributions. The shockproof lamp holder further protects against vibration, reducing premature lamp failures and maintenance costs in demanding environments.
Yes. The fixture is certified for hazardous locations under NEC/CEC with Class I, Division 2 and Zone 2 ratings, plus IP66 and NEMA 4X protection. This combination ensures safe operation in corrosive or washdown-prone areas, meeting regulatory requirements for oil, gas, chemical processing, and other hazardous industries.
It carries NEC/CEC compliance for hazardous locations (Class I, Division 2; Zone 2), IP66 ingress protection, and a NEMA 4X enclosure rating. The brass guard and shockproof lamp holder enhance durability in harsh environments, while the ceiling-mount design supports easy installation in retrofit and new-build projects.
The brass cast guard protects the glass globe from impact and reduces lens replacement frequency, lowering maintenance downtime. IP66/NEMA 4X protection supports washdowns without compromising safety, and the robust construction extends service life. Together with a straightforward ceiling-mount installation, these features contribute to lower total cost of ownership in hazardous-location facilities.
