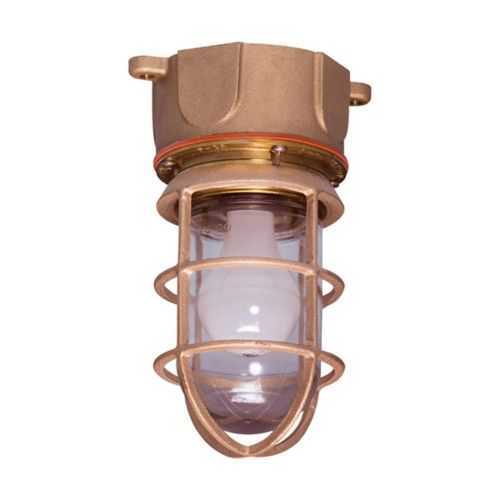

Eaton 717BRED Industrial Globe and Guard - IP66
Part Number: 717BRED
Quick Summary
The Eaton 717BRED industrial globe and guard provides reliable overhead lighting for industrial ceilings. Maintenance teams often struggle with brittle fixtures, difficult lamp changes, and exposure to dust and moisture in harsh environments. This fixture meets rigorous standards with IP66 ingress protection and NEC/CEC compliance, ensuring safer, code-compliant operation in ordinary/non-hazardous locations. Its brass guard and red glass globe deliver durable protection while enabling straightforward lamp replacement and servicing, helping facilities reduce downtime. For businesses seeking long-lasting illumination with proven reliability, the 717BRED supports cost-effective retrofits and predictable maintenance planning in a variety of industrial settings.
Product Information
Extended Description
717BRED Eaton: Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard, Medium base, 50/60 Hz, Red glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Ceiling mount, 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard
Catalog Number
717BRED
UPC
662276385825
Product Length/Depth
4.5 in
Product Height
9.13 in
Product Width
5.13 in
Product Weight
6.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Base type
Medium
Globe color
Red
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1390 - Pauluhn 717 Incandescent
Eaton Specification Sheet - 717BRED
Feature: Ceiling mounting with a cast brass guard and a red glass globe. Business Impact: Provides robust physical protection against handling and incidental contact, improving uptime in high-traffic areas. Application: Suitable for warehouses and manufacturing floors where overhead lighting sees regular activity and needs durable guarding. Feature: Dual 27W incandescent lamps on a medium base (A-19 max) running at 300 Vac and 50/60 Hz. Business Impact: Enables straightforward lamp sourcing and replacement using common, long-lasting lamps, reducing maintenance costs. Application: Ideal for retrofit installations where standard lamp inventories are prioritized. Feature: Brass construction with glass globe and ceiling mounting. Business Impact: Delivers superior heat dissipation and corrosion resistance in non-hazardous locations, extending fixture life and reducing replacement cycles. Application: Heavy-use production lines and assembly areas demanding reliable illumination. Feature: IP66 ingress protection and NEC/CEC compliance. Business Impact: Ensures compliance and resilience in dusty or damp environments, minimizing regulatory risk and downtime. Application: Facilities operating in ordinary locations that require robust environmental protection. Feature: Bright red globe for high-visibility signaling. Business Impact: Improves visual recognition and safety signaling in work zones, contributing to safer operations. Application: Maintenance bays and service desks where quick identification matters.
Get a Quick Quote for a Eaton 717BRED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 717BRED?
Enquire Now
FAQs
The 717BRED is designed for ceiling mounting with a robust brass guard and globe assembly. The mounting method secures the fixture to overhead structures, protecting the lamp and providing durable illumination in warehouses, workshops, and other industrial spaces where overhead lighting must withstand impacts and dust exposure.
Yes. The fixture is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. Its IP66 ingress protection guards against dust and moisture, supporting reliable operation in typical industrial environments without requiring special hazardous-location installation.
The 717BRED uses two 27W incandescent lamps on a medium base (A-19 max) and operates at 300 VAC with a 50/60 Hz frequency. This combination enables easy sourcing of replacement lamps from standard inventories and straightforward electrical compatibility for standard line power systems.
Lamp replacement is designed for ease while maintaining protective guarding. The fixture accepts standard incandescent lamps with a medium base (A-19 max), and the globe/guard assembly is accessible to facilitate lamp changes with minimal downtime, aided by Eaton installation guidance.
Eaton provides multiple resources, including the Crouse-Hinds Pauluhn 700 Globe and Guard catalog pages, IF LBL1390 installation sheets, and the Eaton Specification Sheet for 717BRED. These documents offer wiring diagrams, mounting guidance, and compliance references to ensure correct installation and ongoing maintenance.
