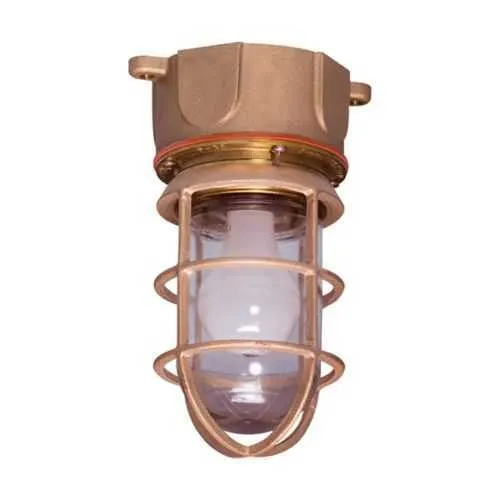

Eaton 717BSP Industrial Globe and Guard - IP66
Part Number: 717BSP
Quick Summary
717BSP industrial globe and guard by Eaton provides rugged ceiling lighting for harsh industrial environments. This fixture addresses the frequent challenges of bulb replacement and globe protection in dusty or impact-prone facilities. Key certifications include IP66 ingress protection, NEC/CEC compliance, and suitability for ordinary/non-hazardous locations, helping facilities stay code-compliant while reducing risk. The design pairs a brass guard with a glass globe and a shockproof lamp holder to deliver durable illumination with minimal downtime. By fitting standard medium-base incandescent lamps up to 2x27W, it integrates smoothly with existing Pauluhn fixtures and legacy wiring, offering a cost-effective upgrade path for reliable, compliant industrial lighting.
Product Information
Extended Description
717BSP Eaton: Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard, Medium base, 50/60 Hz, Glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Ceiling mount, Shockproof lamp holder, 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 717 industrial globe and guard
Catalog Number
717BSP
UPC
662276385849
Product Length/Depth
4.5 in
Product Height
9.13 in
Product Width
5.13 in
Product Weight
6.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Special features
Shockproof lamp holder
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1390 - Pauluhn 717 Incandescent
Eaton Specification Sheet - 717BSP
Ceiling mounting with a standard medium-base design simplifies installation and ensures plug-and-play compatibility with common wiring practices across facilities. This reduces field labor and commissioning time while maintaining reliable operation. It’s well-suited for factory ceilings and warehouse retrofits where rugged, no-frills lighting is required, with the glass globe providing stable diffusion and easier cleaning. Brass guard and glass globe paired with a shockproof lamp holder deliver robust protection against impact and vibration in busy spaces. This minimizes breakage and maintenance downtime in high-traffic areas such as production lines and loading zones, helping protect assets and personnel. The design supports consistent illumination even with routine cleaning, pallet handling, and occasional incidental contact. IP66 protection and NEC/CEC compliance support safe operation in ordinary/non-hazardous locations, even in dusty or humid environments. This combination helps facilities meet code requirements while reducing safety risk and downtime associated with damaged luminaires. It's suitable for general manufacturing floors, assembly cells, and packaging lines where reliable light is essential. Lamp configuration uses 2 x 27W incandescent lamps with a maximum 100W lamp size (A-19) on a medium base, powered from 300 VAC at 50/60 Hz. The arrangement delivers ample brightness with modest energy use, supporting energy budgeting across multiple shifts. Designed for straightforward lamp changes and maintenance, it minimizes downtime during service and reduces training needs for maintenance staff. Dimensions are 4.5 in depth, 9.13 in height, and 5.13 in width, with a weight of 6.6 lb, enabling predictable installation planning. Compact sizing suits constrained ceilings and tight retrofit spaces, while brass-glass construction provides durability against routine cleaning and impact. This combination supports reliable, long-life operation in busy industrial spaces and lowers total cost of ownership over the fixture lifecycle.
Get a Quick Quote for a Eaton 717BSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 717BSP?
Enquire Now
FAQs
To install the 717BSP on a standard ceiling, shut off power, mount the fixture using the existing ceiling box, and connect to a medium-base socket with a 300 VAC supply at 50/60 Hz. Use compatible incandescent lamps up to 2x27W and up to 100W A‑19 as specified. Secure the brass guard and glass globe, then perform a final voltage check and light test.
The 717BSP carries IP66 ingress protection and NEC/CEC standards compliance, suitable for Ordinary/Non-Hazardous Locations. This combination supports safe operation in dusty or humid facilities and helps with regulatory verification during audits. It does not carry SIL or hazardous-location approvals, so use in non-hazardous spaces only.
Yes. The 717BSP is part of Eaton's Pauluhn 700 Globe and Guard family, designed for compatible mounting methods and fittings. It uses a medium-base lamp and accommodates up to 2x27W incandescent lamps, with a maximum 100W A‑19 lamp. When upgrading existing Pauluhn fixtures, verify same base type and glass globe, Brass guard compatibility.
Maintenance involves lamp replacement and cleaning of the glass globe. Because the unit uses a shockproof lamp holder and brass guard, lamp changes are straightforward and safer in busy areas. Schedule periodic checks for damage to the guard and globe, and inspect the 300 VAC wiring and mounting hardware. The IP66 rating helps protect against ingress during routine washdowns in dust-prone spaces.
The 717BSP reduces downtime through a durable brass guard, glass globe, and shockproof holder, while carrying 2x27W incandescent lamps that provide adequate brightness with moderate energy use. Its IP66/NEC-CEC compliance minimizes risk of regulatory issues and costly repairs in non-hazardous locations. Long service life and compatible Pauluhn ecosystem reduce maintenance and replacement costs over time.
