Eaton 718B Industrial Globe and Guard - IP66 Rating
Part Number: 718B
Quick Summary

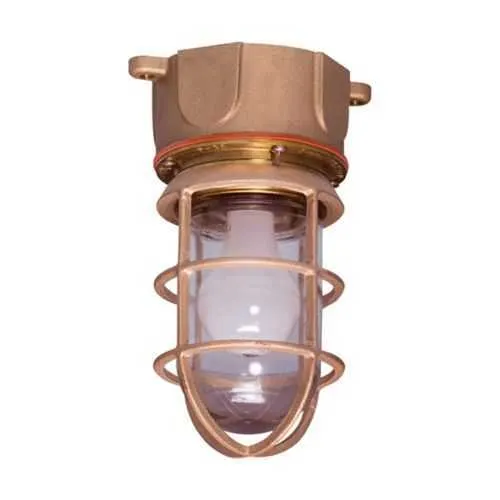

The Eaton 718B industrial globe and guard delivers rugged light enclosure for ceilings in industrial facilities. Maintenance teams struggle with globe breakage and dust exposure, leading to downtime and costly replacements; the brass guard and heavy-glass globe help reduce that risk while withstanding daily shop-life abuse. It carries NEC/CEC compliance and IP66 protection, making it suitable for Ordinary/Non-Hazardous Locations and damp environments where dust and moisture are present. This luminaire also aligns with PS-25 lamp size and 300 VAC electrical standards, offering compatibility with common maintenance inventories. By simplifying installation and extending lamp life, the 718B supports lower lifecycle costs and improved uptime for plant operations.
Product Information
Extended Description
718B Eaton: Eaton Crouse-Hinds series Pauluhn 718 industrial globe and guard, Medium base, 50/60 Hz, Glass globe, With cast brass guard, Incandescent, Brass, PS-25 max. lamp size, Ceiling mount, 300 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn 718 industrial globe and guard
Catalog Number
718B
UPC
662276413597
Product Length/Depth
6 in
Product Height
12.5 in
Product Width
5.13 in
Product Weight
9.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Ceiling
Lamp type
Incandescent
Wattage
300W
Lamp size - max
PS-25
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds 718B 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1394 - Pauluhn 718 Incandescent
Eaton Specification Sheet - 718B
Feature: Brass guard and glass globe construction deliver robust protection. Business impact: Guard and globe resist impact and dust ingress, reducing maintenance costs and extending lamp life. Application: Ideal for manufacturing floors, warehouses, and other spaces with high activity and debris. Feature: IP66-rated enclosure seals out dust and water jets. Business impact: Increases uptime by mitigating ingress in challenging environments with minimal cleaning. Application: Suitable for damp locations and clean manufacturing areas where environmental exposure is routine. Feature: 300W incandescent lamp capability with PS-25 max size and medium base. Business impact: Provides familiar, cost-effective illumination options and straightforward lamp replacements. Application: Retrofit or new installs in Pauluhn 718B fixtures across maintenance regimes. Feature: Ceiling mounting design. Business impact: Simplifies installation, reduces mounting time, and enables flexible placement across ceilings. Application: Plant retrofits, new facilities, and retrofit projects seeking quick deployment. Feature: NEC/CEC compliance with Ordinary/Non-Hazardous Location rating and IP66 protection. Business impact: Ensures regulatory alignment and safer operation, minimizing compliance risk. Application: Industrial environments requiring code-compliant lighting and durable protection. Feature: 50/60 Hz, 300 VAC operation supports common electrical systems. Business impact: Enables compatibility with standard facility power, reducing inventory complexity. Application: Facilities with mixed supply networks and routine maintenance.
Get a Quick Quote for a Eaton 718B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 718B?
Enquire Now
FAQs
The 718B is ceiling-mounted and designed for straightforward installation in ordinary locations. It uses a medium base, PS-25 maximum lamp, and a 300 VAC supply, aligning with common electrical and fixture standards. For retrofit projects, mount brackets and the brass guard are secured to a ceiling box, attach the glass globe, and connect to a suitable transformer and 50/60 Hz power source. Always verify IP66 sealing after installation to maintain ingress protection.
Key performance specs include IP66 ingress protection, 300 VAC voltage rating, 50/60 Hz frequency, and a 300W incandescent lamp capability with PS-25 maximum size. This combination delivers durable protection against dust and moisture while supporting standard electrical infrastructure. The brass guard and glass globe reduce lamp damage from impact, contributing to longer intervals between maintenance and lower total cost of ownership.
Yes, the 718B is appropriate for warehouses and other ordinary locations due to its IP66 protection and brass guard. It carries NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. This ensures regulatory compliance while delivering reliable illumination in spaces with dust, debris, or occasional moisture exposure, helping maintain safe and compliant operations.
The unit is designed for 300W incandescent lamps with a PS-25 maximum size on a medium base. When replacing lamps, ensure the new lamp matches PS-25 size and voltage rating, and reseal the globe and guard to preserve IP66 protection. This approach preserves brightness, reduces premature failure, and minimizes downtime during maintenance cycles.
The 718B offers a durable, protected lighting solution that reduces lamp breakage and ingress-related downtime, lowering maintenance costs over time. Its compatibility with common PS-25 lamps, 300 VAC systems, and NEC/CEC compliance simplifies procurement and regulatory alignment. In addition, access to Eaton’s specifications, installation sheets, and catalogs supports faster deployment and long-term after-sales support.
