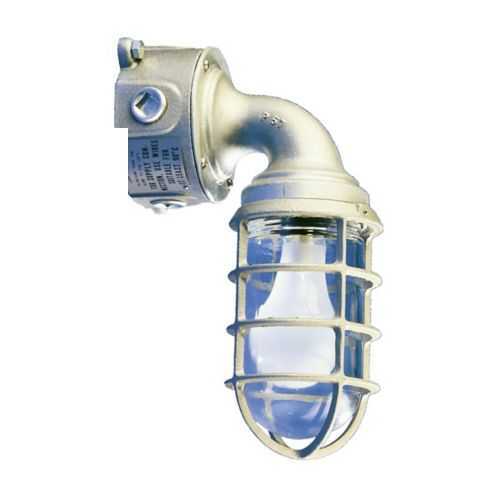

Eaton 727AM7D2 Hazardous Area Globe and Guard - IP66
Part Number: 727AM7D2
Quick Summary
Eaton 727AM7D2 hazardous area globe and guard provides reliable illumination for hazardous locations. Customers face brittle enclosures and corroding hardware in demanding environments, leading to downtime and costly replacements. This fixture carries NEC/CEC classifications, including Class I Division 2 / Zone 2, IP66 protection, and NEMA 4X ratings, delivering safer operation and longer service life. Designed for hazardous location lighting, it supports compliant procurement and reduces maintenance costs through a durable copper-free aluminum guard, glass globe, and robust mounting options. By integrating with standard 250V circuits and up to 150W incandescent lamps on a medium base, it offers straightforward installation and predictable performance for mission-critical facilities.
Product Information
Extended Description
727AM7D2 Eaton: Eaton Crouse-Hinds series Pauluhn 727 hazardous area globe and guard, Medium base, Clear glass globe, With cast copper-free alum guard, Incandescent, Copper-free aluminum, A-21 max. lamp size, Pendant mount with junction box, 250 Vac, 150W
Product Name
Eaton Crouse-Hinds series Pauluhn 727 hazardous area globe and guard
Catalog Number
727AM7D2
UPC
662276385955
Product Length/Depth
4.5 in
Product Height
9.88 in
Product Width
4.5 in
Product Weight
4.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Pendant with junction box
Lamp type
Incandescent
Lamp size - max
A-21
Wattage
150W
Base type
Medium
Guard type
With cast guard
Guard material
Copper-free aluminum
Globe color
Clear
Globe material
Glass
Voltage rating
250 Vac
Pauluhn 700 Series Incandescent Hazardous Area Globe and Guard Fixture catalog page
Eaton Specification Sheet - 727AM7D2
Feature: Pendant with junction box enables clean wiring, quick retrofits, and easy future upgrades. Business Impact: Reduces installation time and minimizes field wiring errors, lowering labor costs and commissioning risk. Application: Ideal for new builds and refurbishments in chemical plants, refineries, and offshore facilities where a sealed, code-compliant feed is essential. Feature: Copper-free aluminum guard and glass globe deliver corrosion resistance in harsh environments. Business Impact: Extends service life and reduces maintenance intervals in aggressive atmospheres, improving plant uptime. Application: Suitable for locations with chemical exposure, humidity, or saline atmospheres where durable protection is required. Feature: 150W incandescent lamp rated for 250 Vac with A-21 max lamp size on a medium base. Business Impact: Maintains legacy lighting inventories while delivering predictable lumen output and compatibility with existing circuits. Application: Supports upgrades in facilities currently using incandescent hazardous-location lighting without extensive rewiring. Feature: IP66, NEMA 4X protection plus hazardous area ratings (Class I, Division 2; Zone 2). Business Impact: Ensures compliance with stringent safety standards and minimizes risk of ingress from water, dust, or chemicals. Application: Essential in wash-down areas, outdoor enclosures, and environments with dust, water jets, or chemical vapors. Feature: Pendant mounting with junction box and copper-free aluminum guard ensures compatibility with standard enclosure configurations. Business Impact: Simplifies installation, reduces need for special mounting hardware, and accelerates regulatory inspections. Application: Fits existing Pauluhn protection ecosystems and new builds requiring secure, market-standard hazardous location lighting.
Get a Quick Quote for a Eaton 727AM7D2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 727AM7D2?
Enquire Now
FAQs
Compatible with pendant mounting using a junction box and designed for hazardous locations. It accepts up to 150W incandescent lamps on a 250V supply with a medium base and copper-free aluminum guard. It meets Class I Division 2 and Zone 2 requirements, IP66 and NEMA 4X protection, suitable for refineries, chemical plants, and offshore facilities.
The fixture adheres to NEC/CEC standards and hazardous location classifications, specifically Class I Division 2 and Zone 2. IP66 and NEMA 4X ratings protect against dust, water, and harsh chemicals. The copper-free aluminum guard and glass globe contribute to enclosure integrity, supporting compliance audits and safe operation in demanding environments.
Typical applications include chemical processing plants, refineries, offshore platforms, and other hazardous or classified locations where reliable glow protection is needed. The 150W incandescent illumination on 250V supply with a medium base makes it suitable for legacy lighting schemes while maintaining safety and code compliance.
Maintenance should address the glass globe and guard integrity, checking for micro-cracks or impact damage and ensuring seals remain intact. Replace lamps promptly to maintain lumen output. Periodic inspections should confirm continued IP66/NEMA 4X protection and that the pendant mounting remains secure in vibration-prone environments.
The fixture weighs approximately 4.25 lb. Shipping dimensions align with a compact pendant globe assembly: length about 4.5 in, width about 4.5 in, and height around 9.88 in. These measurements support straightforward packaging, handling, and installation in constrained hazardous-location spaces.
