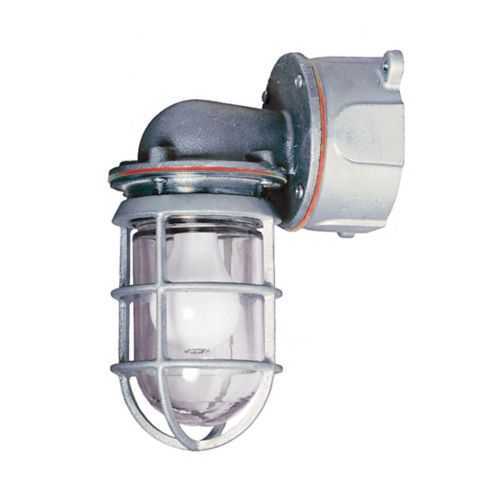

Eaton 729A Industrial Globe and Guard - IP66
Part Number: 729A
Quick Summary
The Eaton 729A Industrial Globe and Guard is a wall-mounted lighting solution engineered for ordinary locations in warehouses and manufacturing spaces. It addresses the common challenge of protecting fragile glass bulbs in busy industrial environments by pairing a glass globe with a copper-free aluminum guard. This fixture operates at 300 Vac, 50/60 Hz, using a medium-base lamp with two 27W incandescent modules and an A-19 maximum size, enabling straightforward, cost-effective maintenance. It aligns with NEC/CEC standards for non-hazardous areas, supporting safe, compliant installations. For facilities seeking reliable, readily serviceable lighting that minimizes downtime, the 729A delivers consistent illumination and long-term operational value across general industrial spaces.
Product Information
Extended Description
729A Eaton: Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Glass globe, With cast copper-free aluminum guard, Incandescent, Copper-free aluminum, A-19 max. lamp size, Wall mount, 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard
Catalog Number
729A
UPC
662276385986
Product Length/Depth
7.13 in
Product Height
10.13 in
Product Width
5.13 in
Product Weight
3.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Wall
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Box depth
2"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Copper-free aluminum
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds 729A 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1399 - Pauluhn 729 Wall Mount Incandescent
Eaton Specification Sheet - 729A
Durable protection with glass globe and copper-free aluminum guard reduces risk of damage in busy facilities, lowering maintenance costs and downtime by preserving light output during routine operations. The IP66 rating defends against dust and water exposure common in warehouses and production floors, boosting uptime and reducing service calls. Electrical compatibility with 300 Vac and 50/60 Hz, plus two 27W incandescent lamps (A-19 max), simplifies lamp sourcing and replacement, keeping inventory lean and maintenance quick. Wall mounting and a compact 2" box depth streamline retrofit projects and new installations, saving ceiling space and facilitating safer, faster installation in tight work areas. The copper-free aluminum construction resists corrosion in harsh cleaning schedules, extending service life and lowering total cost of ownership. Compliance to NEC/CEC standards provides confidence for multi-site rollouts and routine audits, while standard dimensions support easy part substitution and quick repairs. This combination of protection, ease of maintenance, and code compliance makes the 729A a practical choice for general industry lighting.
Get a Quick Quote for a Eaton 729A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 729A?
Enquire Now
FAQs
729A is designed for wall mounting using a medium base lamp socket and a 2" deep junction box. It accepts two incandescent lamps totaling 2x27W with a maximum lamp size of A-19. The assembly uses a glass globe and a copper-free aluminum guard for impact resistance, and it can be installed in ordinary locations with NEC/CEC compliance.
Key specifications include 300 Vac operation, 50/60 Hz frequency, and IP66 ingress protection, which guards against dust and heavy water exposure. The fixture is rated for ordinary/non-hazardous locations and uses a medium base for easy lamp changes. This combination minimizes downtime and ensures stable illumination in warehouses and light industrial spaces.
The 729A is well suited for warehouses, manufacturing floors, loading docks, and maintenance areas where non-hazardous environments prevail. Its rugged guard and glass globe tolerate routine exposure, while the wall-mount design saves ceiling space. It’s a practical option for retrofit projects or new builds requiring compliant, readily available incandescent lighting.
The 729A complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. Its IP66 rating provides reliable protection in dusty or damp environments, and the copper-free aluminum construction mitigates corrosion risk. This combination supports code compliance and predictable performance across general plant facilities.
Maintenance centers on lamp replacement with two 27W incandescent units and periodic inspection of the glass globe and guard for chips or cracks. Clean the fixture to maintain light output and replace components as needed. The standard dimensions and availability of replacement parts simplify stocking and service, delivering a favorable total cost of ownership in general industry applications.
