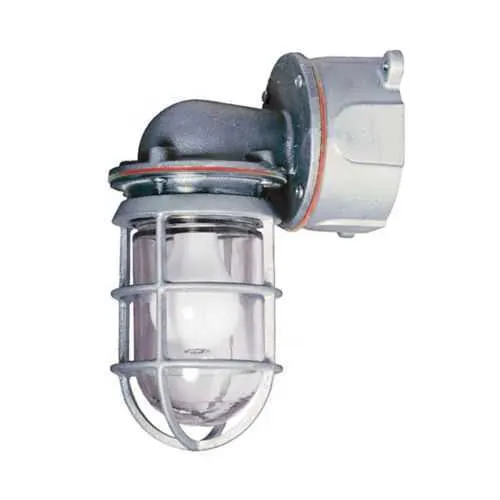

Eaton 729AF Industrial Globe & Guard - IP66 Rated
Part Number: 729AF
Quick Summary
Eaton 729AF industrial globe and guard delivers robust illumination for flush-mounted lighting in non-hazardous industrial spaces. The challenge in harsh environments is sourcing compatible, readily replaceable components that fit Pauluhn fixtures without complicating installation. This solution meets NEC/CEC standards and IP66 ingress protection, pairing a copper-free aluminum guard with a glass globe for reliable performance in ordinary locations. With 2x27W incandescent lamp capability and a medium base, it offers a familiar, cost-effective retrofit option. The combination of flush mounting and standard lamp compatibility supports faster maintenance cycles, reduced inventory complexity, and improved uptime for critical facilities.
Product Information
Extended Description
729AF Eaton: Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard, Medium base, 2-3/8" box depth, 50/60 Hz, Glass globe, With cast copper-free alum guard, Incandescent, Copper-free aluminum, A-19 max. lamp size, Flush mount, 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard
Catalog Number
729AF
UPC
662276386037
Product Length/Depth
7.63 in
Product Height
10.13 in
Product Width
5.63 in
Product Weight
4.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Flush
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Box depth
2-3/8"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Copper-free aluminum
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds 729AF 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1401 - Pauluhn 729 Flush Mount Incandescent
Eaton Specification Sheet - 729AF
Copper-free aluminum guard and glass globe protect the lamp from impact and contamination, delivering longer service life and corrosion resistance in tough environments. This translates to lower replacement costs and reduced maintenance downtime in manufacturing or process facilities where debris and moisture are considerations, especially in flush-mounted Pauluhn configurations. IP66 ingress protection combined with ordinary/non-hazardous location suitability ensures compliance without over-specifying equipment, streamlining procurement for non-hazardous settings and saving cycle time during audits. The 2x27W incandescent lamps with a medium base provide familiar, readily available lighting options, enabling simple lamp swaps and minimizing lighting downtime during maintenance windows. Flush mounting with a 2-3/8" box depth offers a neat, space-saving install that reduces clutter and simplifies retrofits in constrained installations. At 300 Vac and 50/60 Hz, the unit aligns with standard plant electrical systems, supporting common industrial power architectures and enhancing compatibility across facilities.
Get a Quick Quote for a Eaton 729AF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 729AF?
Enquire Now
FAQs
To install the 729AF, ensure your enclosure provides a flush-mount opening compatible with a 2-3/8" box depth. Use a medium-base socket for 2x27W incandescent lamps (A-19 max). Mount the copper-free aluminum guard over the glass globe, then secure the globe assembly with the appropriate screws. Verify 300 Vac supply and 50/60 Hz operation, and confirm the fixture is in ordinary/non-hazardous locations per NEC/CEC requirements before energizing.
The 729AF supports 300 Vac at 50/60 Hz with a lamp setup of 2x27W incandescent lamps sized to A-19 maximum. It uses a medium base and is designed for flush mounting. The IP66 rating provides substantial protection against dust and water ingress, making it suitable for ordinary locations in industrial settings where environmental exposure is a concern.
Yes. The 729AF is rated for Ordinary/Non-Hazardous Locations and carries NEC/CEC standards compliance. Its IP66 ingress protection makes it resistant to dust and moisture, which is advantageous in general factory environments. This combination enables reliable operation without requiring specialized explosion-proof or hazardous-location certifications, simplifying procurement and installation for routine industrial lighting needs.
The 729AF adheres to NEC/CEC standards and is certified for Ordinary/Non-Hazardous Locations. It also offers IP66 ingress protection, indicating robust dust and water resistance. Together, these certifications support safe, compliant operation in standard industrial spaces and streamline regulatory considerations during audits or facility upgrades.
Using the 729AF delivers maintenance efficiency through compatibility with standard A-19 incandescent lamps and a familiar medium-base socket, reducing stocking complexity. Its flush-mount design saves space and simplifies retrofits in crowded installations, while the copper-free aluminum guard and glass globe enhance durability in non-hazardous environments. Overall, this translates to lower downtime, straightforward replacements, and consistent NEC/CEC compliance across facilities.
