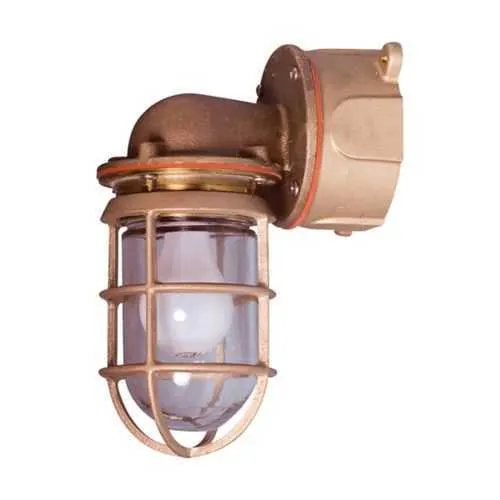

Eaton 729BT Industrial Globe and Guard - IP66
Part Number: 729BT
Quick Summary
The Eaton 729BT industrial globe and guard provides rugged, wall-mounted illumination for ordinary locations. In busy facilities, protecting the glass globe from impacts while keeping bulb replacement straightforward is a common challenge. This fixture meets NEC/CEC standards and carries IP66 ingress protection for reliable operation in non-hazardous environments. By pairing a brass guard with a glass globe and a 4-pole terminal block, it delivers durable industrial lighting with easy maintenance. The design supports standard incandescent lamps up to 100W (two 27W lamps) and a medium base, delivering consistent performance with simple field service and predictable total cost of ownership for facility managers and procurement teams.
Product Information
Extended Description
729BT Eaton: Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Wall mount, 4-pole terminal block, 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 729 industrial globe and guard
Catalog Number
729BT
UPC
662276386174
Product Length/Depth
7.13 in
Product Height
10.13 in
Product Width
5.13 in
Product Weight
8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Box depth
2"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Special features
4-pole terminal block
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1399 - Pauluhn 729 Wall Mount Incandescent
Eaton Specification Sheet - 729BT
Feature: Brass guard and glass globe protection → Business Impact: Reduces globe breakage and maintenance cost while preserving light output → Application: Harsh factory corners, equipment rooms, and high-traffic corridors. Feature: Two 27W incandescent lamps with a 100W max capacity → Business Impact: Cost-effective illumination with straightforward lamp replacement and predictable energy use → Application: Upgrading legacy fixtures in assembly lines and maintenance bays. Feature: Wall mounting with 2" box depth and 7.13" depth overall → Business Impact: Simplified installation and retrofit compatibility with existing wiring enclosures → Application: Retrofit projects and new plant builds where fast deployment matters. Feature: IP66 ingress protection and brass guard → Business Impact: Suitable for damp or dusty spaces, reducing risk of equipment exposure and downtime → Application: Wet-dusty production areas, wash-down zones, and non-hazardous environments. Feature: 4-pole terminal block and medium base with Glass globe → Business Impact: Wiring reliability and compatibility with standard electrical components minimize field errors → Application: New builds and facility upgrades that require dependable, code-conscious lighting components. Feature: NEC/CEC compliance and 300 Vac, 50/60 Hz operation → Business Impact: Streamlines procurement and ensures regulatory alignment across projects → Application: Commercial and industrial facilities adhering to unified electrical standards.
Get a Quick Quote for a Eaton 729BT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 729BT?
Enquire Now
FAQs
The 729BT is wall-mounted with a 2" box depth and overall dimensions of 7.13 in (length) by 10.13 in (height) by 5.13 in (width). It uses a medium-base socket for two 27W incandescent lamps (up to 100W total) and a 4-pole terminal block. It operates at 300 VAC and 50/60 Hz. Installers should follow NEC/CEC guidelines and ensure adequate clearance for the brass guard and glass globe.
The fixture runs on 300 VAC with a 50/60 Hz frequency, and accepts two 27W incandescent lamps (max 100W). The medium base and 4-pole terminal block simplify wiring, while the glass globe and brass guard protect the lamp. Plan for standard industrial supply, compatible conduit, and ensure the load does not exceed the 300 VAC rating during design.
Yes. It is classified for Ordinary/Non-Hazardous Locations and features IP66 ingress protection, making it suitable for non-hazardous industrial spaces that may have dust or moisture exposure. The wall-mount design and robust brass guard provide durable performance in factories, workshops, and equipment rooms while complying with NEC/CEC standards.
The 729BT complies with NEC/CEC standards and carries an IP66 ingress protection rating, appropriate for Ordinary/Non-Hazardous Locations. It uses incandescent lamps and operates at 300 VAC, 50/60 Hz. These certifications support regulated procurement, safer operation, and standardization across electrical installations in industrial facilities.
Maintenance benefits come from the brass guard protecting a glass globe, reducing replacement frequency. It supports standard A-19 scale lamps up to 100W and uses two 27W lamps for balanced illumination. The 4-pole terminal block simplifies wiring, and the wall-mount design speeds installation. While incandescent efficiency is lower than modern LEDs, durability and straightforward servicing can lower lifecycle costs in non-hazardous environments.
