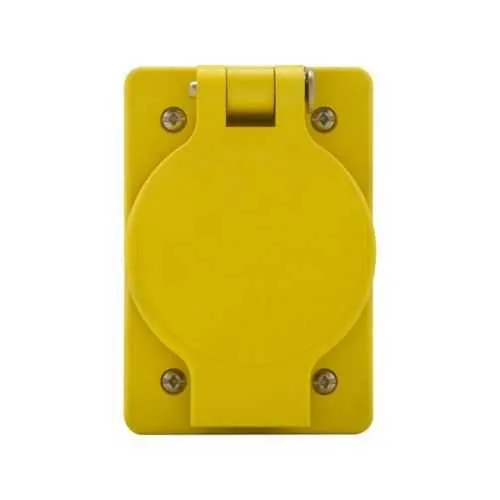

Eaton 7314RWBK Watertight Locking Receptacle - IP66
Part Number: 7314RWBK
Quick Summary
The Eaton 7314RWBK watertight locking receptacle ensures reliable power connections for industrial enclosures and outdoor equipment. This design addresses moisture ingress, vibration, and back-wiring challenges that slow repairs and uptime. With cULus Listed certification, IP66 protection, and NEMA 3R/4X compatibility, it thrives in harsh environments. The device supports back wiring and #14-8 AWG conductors at 20A and 125/250V, simplifying installation while keeping a code-compliant connection. Built from glass-filled nylon and nickel-plated bronze, it resists corrosion and wear, delivering long service life. Overall, it provides a robust, easy-to-service solution for industrial-grade locking receptacles in demanding facilities, improving reliability and lowering maintenance costs over time.
Product Information
Extended Description
7314RWBK Eaton: Eaton Arrow Hart watertight locking receptacle, #14-8 AWG, 20A, Industrial, 125/250V, Back wiring, Black, Single, Watertight, Three-pole, Three-wire, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
7314RWBK
UPC
032664708671
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
0.85 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
Non-NEMA
Number Of Poles
Three-pole
Number of wires
Non-grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125/250 V
Environmental resistance
NEMA 3R NEMA 3 NEMA 12 NEMA 4X IP66 NEMA 4
Allowable wire size
#14-8 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Feature: Watertight locking design provides moisture exclusion and secure connections that minimize corrosion and downtime. Business impact: reduces field failures in wet or dusty environments, improving equipment uptime. Application: suitable for outdoor enclosures, wet locations, and rugged machinery. Feature: Back wiring with #14-8 AWG permits fast, error-free terminations and easier field service; business impact: reduces installation time by enabling clean, reusable connections; Application: panel assemblies and industrial control boxes. Feature: 20A, 125/250V rating supports common industrial loads; business impact: commonize stock and improve energy management; Application: conveyors, pumps, and control panels. Feature: Glass-filled nylon body and nickel-plated bronze contacts deliver durability and corrosion resistance; business impact: longer service life, lower replacement costs; Application: harsh environments. Feature: IP66/NEMA 3R/4X/12 protection and watertight sealing provide reliable performance in adverse conditions; business impact: minimizes ingress risk and maintenance cycles; Application: outdoor equipment, damp facilities, and mobile machinery. Torque and wiring specs ensure secure terminations: 14-16 lbf-in for #10-14 AWG, 20 lbf-in for #8 AWG; business impact: consistent performance across wire sizes; Application: high-vibration environments.
