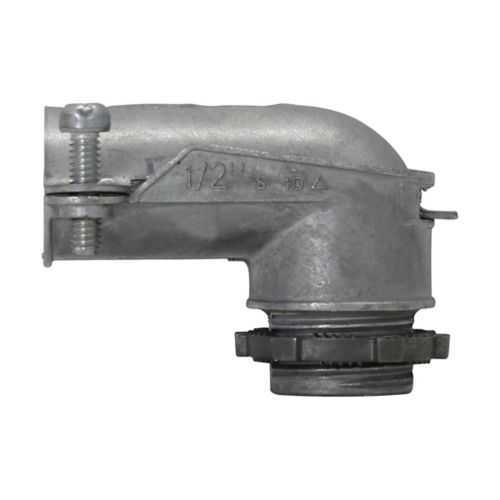

Eaton 736DC Squeeze Type Connector - 90° FMC NEC/CEC
Part Number: 736DC
Quick Summary
The Eaton 736DC squeeze type connector terminates FMC in control panels and equipment enclosures. In tight spaces and on fast-moving lines, unreliable terminations slow startups and drive maintenance costs. It complies with NEC and CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with UL Canada certifications referenced in listings. Its compact footprint and 1/2" trade size provide a versatile, standards-aligned termination solution that reduces part counts and simplifies spares management for industrial wiring and machine wiring projects.
Product Information
Extended Description
736DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, 90° angle, Non-insulated, Zinc die cast, 1/2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
736DC
UPC
784564003553
Product Length/Depth
6.22 in
Product Height
1.94 in
Product Width
3.43 in
Product Weight
0.11 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
90° angle
Insulator
Non-insulated
Trade size
1/2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC Canadian certification
Connectors and Couplings - FMC Canadian certification
Eaton Specification Sheet - 736DC
Feature: 90° squeeze-type geometry enables space-efficient terminations. Business Impact: reduces misalignment risk and speeds installation in crowded panels. Application: ideal for FMC conduit terminations in electrical panels and junction boxes. Feature: Zinc die cast housing delivers rugged durability and corrosion resistance. Business Impact: longer service life reduces maintenance cycles and replacement costs. Application: suitable for harsh industrial environments and frequent equipment cycles. Feature: Non-insulated design supports faster terminations with fewer steps. Business Impact: lowers labor time and accelerates commissioning. Application: field installations where quick, reliable connections are required. Feature: 1/2" trade size compatibility standardizes components across equipment. Business Impact: lowers inventory complexity and simplifies sourcing. Application: widespread use in panel builds and industrial automation cabinets. Feature: NEC/CEC compliance with Ordinary/Non-Hazardous location suitability. Business Impact: regulatory readiness and risk mitigation. Application: compliant terminations in standard industrial facilities.
Get a Quick Quote for a Eaton 736DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 736DC?
Enquire Now
FAQs
The 736DC is a 90° squeeze type connector designed for 1/2" FMC conduit. Installation requires aligning the conduit with the connector body, tightening the squeeze mechanism to establish a secure grip, and verifying that the connection is mechanically stable and electrically continuous. Use standard hand tools appropriate for zinc die-cast squeeze connectors and follow manufacturer torque guidance to ensure reliable terminations.
The 736DC is rated for ordinary/non-hazardous locations under NEC/CEC standards. It uses a non-insulated, zinc die-cast housing suitable for FMC conduits and a 1/2" trade size. The unit is designed to resist typical industrial vibration and environmental factors found in standard control panels, providing dependable performance in non-restricted environments.
No. The 736DC is specified for Ordinary/Non-Hazardous Locations. For hazardous or restricted environments, you should select a connector with appropriate ignition protection, insulation, and certification to meet the applicable safety standards and local regulations. Always verify location classification and enclosures before selection.
The 736DC carries NEC/CEC compliance and is identified for Ordinary/Non-Hazardous Locations. Canadian certification references are available through UL listings for FMC connectors, as noted in the product downloads. This ensures regulatory alignment for electrical installations in North American facilities and supports concurrent compliance with multiple market requirements.
The 736DC’s squeeze-type, non-insulated design enables faster field terminations with fewer components and tools, reducing labor time during commissioning. The zinc die-cast body provides durable performance with low maintenance needs, translating to lower replacement rates and fewer panel reworks over the lifecycle of standard control cabinets and automation equipment.
