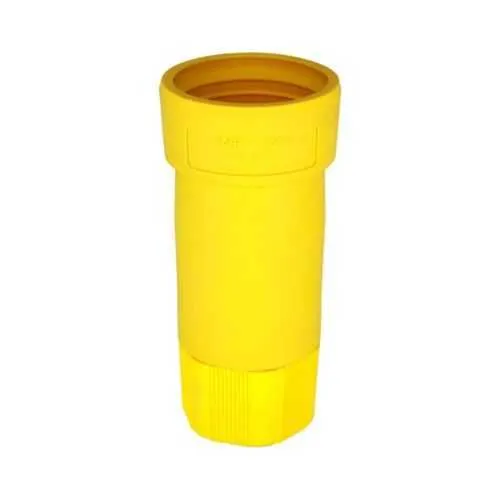

Eaton 7413CWBK Watertight Locking Connector - cULus Listed
Part Number: 7413CWBK
Quick Summary
Eaton 7413CWBK watertight locking connector is designed to deliver secure, moisture-resistant power connections for industrial equipment. This rugged four-pole device supports #18-10 AWG conductors at 20A and 120/208V, making it ideal for control panels, motors, and equipment enclosures. This design addresses downtime caused by water intrusion and dirty environments in harsh plant conditions. It carries certifications such as cULus Listed, IP67, and NEMA 6/4X, adding assurance for code compliance and hazardous environments. By combining reliable performance with back-wire installation and a compact footprint, it reduces maintenance costs and accelerates panel builds while maintaining safety and reliability.
Product Information
Extended Description
7413CWBK Eaton: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 120/208V, Black, Watertight, Four-pole, Four-wire, Santoprene thermoplastic elastomeric
Product Name
Eaton Arrow Hart watertight locking connector
Catalog Number
7413CWBK
UPC
032664708695
Product Length/Depth
6.75 in
Product Height
3.86 in
Product Width
4.38 in
Product Weight
1.055 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
Non-NEMA
Number Of Poles
Four-pole
Number of wires
4 Non-grounding
Torque rating
14-16 lbf-inch
Voltage rating
3ØY 120/208 V
Environmental resistance
NEMA 6 IP67 NEMA 4 NEMA 6P NEMA 4X
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated brass
Application
Industrial
Design type
Watertight locking connector
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Nylon
Material
Santoprene thermoplastic elastomeric
Special features
Watertight
Type
Locking connector
Watertight locking design provides a secure, moisture-resistant connection that minimizes corrosion and accidental disconnections, improving uptime in wet or dusty environments and translating to lower maintenance costs. The four-pole, four-wire configuration supports up to 20A at 120/208V, enabling clean, simple integration for motors, actuators, and control panels with minimal wiring complexity. A nylon face/body paired with a Santoprene elastomeric seal delivers rugged durability and chemical resistance, extending service life in industrial settings and reducing replacement cycles. Back-wire termination supports quick, tool-friendly installation compatible with #18-10 AWG conductors, while maintaining reliable current pathways and consistent torque after enclosure mounting. With nickel-plated brass contacts, the connector delivers low contact resistance, ensuring stable performance under vibration and temperature fluctuations. The combination of environmental ratings (IP67/NEMA 6, NEMA 4X) and a compact footprint enables flexible panel design, outdoor placements, and safer, code-compliant installations. Torque rating of 14–16 lbf-in ensures a secure, repeatable connection during assembly, reducing rework and field service calls.
Get a Quick Quote for a Eaton 7413CWBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 7413CWBK?
Enquire Now
FAQs
The 7413CWBK supports #18-10 AWG conductors with a back-wire wiring method, allowing a compact, efficient installation inside control panels. Ensure conductors are properly stripped and seated, and torque each terminal to 14–16 lbf-in for a reliable, code-compliant connection.
This connector is cULus Listed and rated for harsh environments with IP67 and NEMA ratings including 6, 4X, and 4. The combination of these ratings supports operation in wet, dusty, and corrosive conditions typical of industrial and outdoor applications.
The device is a four-pole, four-wire connector rated at 20A and 120/208V, with a non-grounding wiring configuration. It uses nickel-plated brass contacts within a nylon housing to deliver reliable current transfer in demanding applications.
Ideal for industrial control panels, motors, and outdoor equipment enclosures where moisture, dust, and temperature variation are concerns. Its watertight seal, locking mechanism, and back-wire design streamline panel builds and reduce field maintenance, delivering safer and more reliable operation in harsh environments.
By providing a robust, watertight connection with a secure locking mechanism and durable contact materials, the connector minimizes water ingress and connection failures. This leads to reduced downtime, lower maintenance costs, and faster assembly of industrial panels, contributing to a favorable total cost of ownership.
