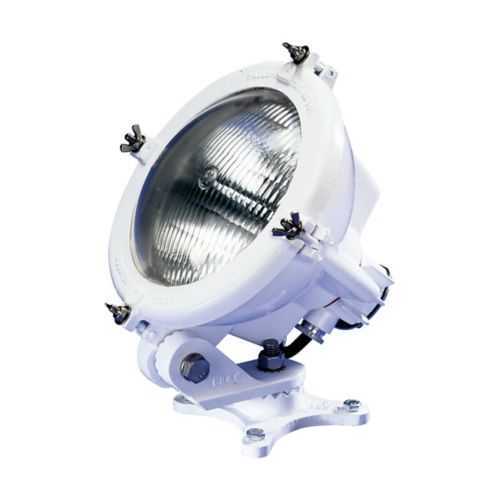

Eaton 741ASM Spot Light - Industrial Lighting IP66

Part Number: 741ASM
Manufacturer
Eaton
Part number
741ASM

Quick Summary

The Eaton 741ASM Spot Light is a durable surface-mounted lighting fixture that delivers reliable 120 Vac illumination for industrial environments. It addresses common operator pain points such as heat buildup, lens wear, and corrosion by using a copper-free aluminum housing and a heat-resistant glass lens. This fixture is suitable for ordinary and non-hazardous locations and carries NEC/CEC compliance, a NEMA 4 enclosure rating, and IP66 ingress protection for dust and water resistance. By combining rugged construction with straightforward installation and scalable retrofit options, it supports predictable performance, minimizes downtime, and enhances lighting consistency across temperature variations. The design also aligns with Pauluhn 700 Series compatibility, enabling streamlined upgrades and deployments in both new and retrofit projects.

Product Information

Extended Description

741ASM Eaton: Eaton Crouse-Hinds series Pauluhn 740/741 spot light, Incandescent lamp, Heat resistant glass lens, Copper-free aluminum, Surface mount, Medium optical distribution, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn 740/741 spot light
Catalog Number
741ASM
UPC
662276386518
Product Length/Depth
10.06 in
Product Height
12.69 in
Product Width
8.88 in
Product Weight
8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Wattage
300W
Lamp type
Incandescent
Optical distribution
Medium
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Feature copper-free aluminum housing → Business Impact: excellent corrosion resistance and lighter weight for easier handling and longer service life. Application: ideal for harsh industrial and outdoor environments where durability reduces maintenance costs and downtime. Feature heat-resistant glass lens → Business Impact: preserves lens integrity under incandescent lamp heat, reducing replacement frequency. Application: supports reliable illumination in high-temperature zones within manufacturing and warehousing. Feature 300W incandescent lamp, 120 Vac → Business Impact: high-output illumination with standard electrical supply, enabling effective work areas and safer operations. Application: suitable for general factory floors and equipment rooms requiring strong visibility. Feature surface mounting with medium optical distribution → Business Impact: fast installation and uniform light coverage, enabling quick retrofits and scalable deployments. Application: retrofit projects and new builds across multiple production lines. Feature IP66 and NEMA 4 ratings → Business Impact: robust ingress protection and enclosure sealing for dust and water resistance, minimizing failures in non-hazardous locations. Application: outdoor enclosures and wet/dust-prone areas. Feature compatibility with Pauluhn 700 Series → Business Impact: leverages existing asset ecosystems, reducing spare-part inventories and training needs. Application: streamlined upgrades and cross-model replacements in established facilities. Feature Ordinary/Non-Hazardous area classification → Business Impact: regulatory alignment reduces compliance risk and speeds project approvals. Application: standard facilities without hazardous classifications benefit from proven protection and performance.

Get a Quick Quote for a Eaton 741ASM

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton 741ASM? Enquire Now

FAQs

The 741ASM uses a surface-mount configuration. Attach the fixture to a flat, sturdy surface using the supplied mounting points, ensuring a secure electrical connection to a 120 Vac supply. Follow NEC/CEC wiring practices and install an appropriate disconnect switch. Verify that seals remain intact for IP66 protection and NEMA 4 enclosure integrity, and consult Eaton installation sheets for wiring diagrams and torque specs.
The 741ASM operates at 120 Vac with a 300W incandescent lamp and uses a medium optical distribution for balanced area illumination. It features a heat-resistant glass lens, copper-free aluminum housing, an IP66 ingress protection rating, and a NEMA 4 enclosure rating. It is intended for ordinary/non-hazardous locations and provides reliable performance in typical industrial settings.
Yes. The fixture is designed for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards. Its IP66 protection and NEMA 4 rating offer robust dust and water resistance, which is well-suited for manufacturing floors, warehouses, and equipment rooms. The surface-mount design also enables straightforward retrofits and scalable deployment across multiple zones.
The 741ASM carries NEC/CEC compliance, a NEMA 4 enclosure rating, and IP66 ingress protection. These certifications ensure suitability for ordinary/non-hazardous locations and provide confidence in resistance to dust and water exposure, supporting reliable operation in typical industrial environments.
The copper-free aluminum housing and heat-resistant glass lens resist corrosion and heat-related wear, extending service life and reducing replacement cycles. The fixture’s robust construction and straightforward mounting lower maintenance labor, while compatibility with Pauluhn 700 Series components supports easier spares management and faster retrofit projects, delivering a favorable total cost of ownership over time.
