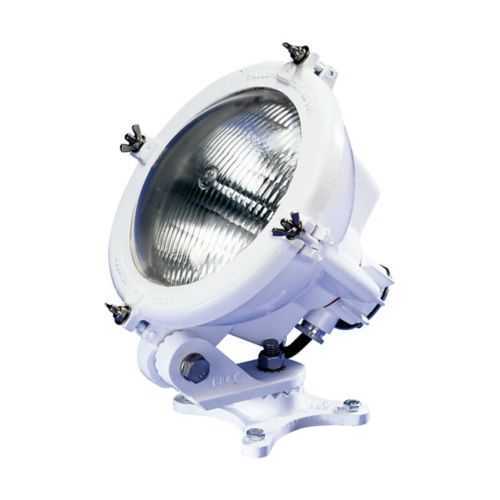

Eaton 741ASM/WFL Industrial Spot Light - IP66
Part Number: 741ASM/WFL
Quick Summary
The Eaton 741ASM/WFL industrial spot light provides robust illumination for harsh industrial environments and outdoor installations. In real-world facilities, lamps fail during peak demand or due to heat, dust, and vibration, causing costly downtime. The 741ASM/WFL combines a copper-free aluminum housing with a heat-resistant glass lens to resist corrosion and thermal stress. Its surface-mount design and wide optical distribution simplify installation, reduce wiring complexity, and improve light coverage in irregular layouts. Certified for NEC/CEC, NEMA 4, and IP66, it meets industry standards while supporting predictable maintenance and uptime. Designed for 120 Vac, 300 W incandescent operation, this unit delivers reliable performance with cost-effective spare parts and long service life.
Product Information
Extended Description
741ASM/WFL Eaton: Eaton Crouse-Hinds series Pauluhn 740/741 spot light, Incandescent lamp, Heat resistant glass lens, Copper-free aluminum, Surface mount, Wide optical distribution, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn 740/741 spot light
Catalog Number
741ASM/WFL
UPC
662276386525
Product Length/Depth
10.06 in
Product Height
12.69 in
Product Width
8.88 in
Product Weight
8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Wattage
300W
Lamp type
Incandescent
Optical distribution
Wide
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Crouse-Hinds Pauluhn 700 Series Industrial Spot Lights catalog page
IF LBL1482 - Lens Replacement for 746M Industrial Spot Lights
Eaton Specification Sheet - 741ASM/WFL
Feature → Business Impact → Application: Copper-free aluminum housing and heat-resistant glass lens deliver corrosion and thermal stress resistance, extending service life in dusty, high-heat environments and reducing maintenance frequency for critical lighting. This translates to lower total cost of ownership and fewer unscheduled outages in manufacturing lines. Feature → Business Impact → Application: Surface-mount installation with wide optical distribution enables rapid retrofits and uniform illumination across broad work areas, improving operator visibility and safety in machine rooms and outdoor enclosures. Feature → Business Impact → Application: IP66 and NEMA 4 protection provide reliable operation in wet, dusty environments, ensuring compliance with facility standards and reducing enclosure ingress-related failures in non-hazardous locations. Feature → Business Impact → Application: 120 Vac, 300 W incandescent operation offers a straightforward, readily available power solution with predictable lifecycle costs, simplifying electrical design and spares provisioning. Feature → Business Impact → Application: Copper-free construction and standard Pauluhn series compatibility streamline procurement, aftermarket support, and replacement parts, minimizing downtime during lamp or component replacements. Feature → Business Impact → Application: Clear, durable lens and rugged housing support long service life, enabling extended maintenance intervals and improved asset reliability for industrial lighting assets such as walkways, enclosures, and general area lighting.
Get a Quick Quote for a Eaton 741ASM/WFL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 741ASM/WFL?
Enquire Now
FAQs
The 741ASM/WFL is designed for surface mounting and is compatible with Pauluhn 740/741 spot light installations. Its copper-free aluminum housing and heat-resistant glass lens are standard features that align with 700 Series mounting footprints, simplifying retrofit projects. Use the provided installation instructions (LBL1482) for lens replacement guidance if upgrading from older models.
Plan for 120 Vac supply and a 300 W incandescent load. The fixture is rated for ordinary/non-hazardous locations and uses conventional incandescent lighting. Ensure appropriate circuit protection, wiring gauge for continuous 300 W operation, and verify compatibility with existing control gear or relays in your lighting circuit to maintain consistent brightness and uptime.
Yes. The unit features IP66 ingress protection and a NEMA 4 enclosure rating, making it suitable for wet, dusty, and harsh non-hazardous locations. Its copper-free aluminum housing and heat-resistant glass lens further enhance durability in challenging environments, supporting reliable performance for exterior walkways and exposed industrial areas.
The 741ASM/WFL complies with NEC/CEC standards and carries a NEMA 4 rating with IP66 protection. These certifications ensure electrical safety, enclosure integrity, and environmental resistance, meeting industry requirements for non-hazardous industrial locations and simplifying regulatory approvals during audits and facility upgrades.
Plan for periodic inspection of lens integrity and electrical connections, with potential lens replacement per OEM guidelines (IF LBL1482). The copper-free aluminum construction and durable glass lens reduce corrosion and breakage risk, lowering maintenance frequency. Use the Eaton 700-series catalog and specification sheets for part compatibility and recommended spare parts strategy.
