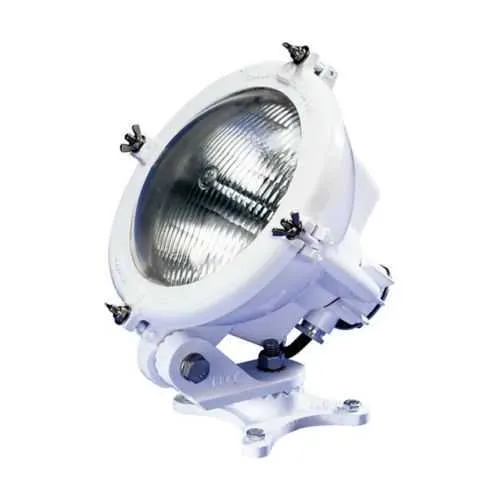

Eaton 741ASMRSWFL Spot Light - Surface Mount, IP66
Part Number: 741ASMRSWFL
Quick Summary
The Eaton 741ASMRSWFL Spot Light delivers rugged illumination for industrial facilities. Your maintenance teams need fixtures that endure vibration, moisture, and dusty environments without frequent replacements. With IP66 protection, NEMA 4 enclosure, and NEC/CEC compliance, this light balances rugged durability with regulatory certainty. Its surface-mount design and copper-free aluminum housing support fast retrofits, reduce corrosion risk, and lower long-term maintenance costs. By combining wide optical distribution with a robust heat-resistant glass lens, it delivers reliable coverage across work cells. This makes it a compelling choice for retrofits and new builds alike.
Product Information
Extended Description
741ASMRSWFL Eaton: Eaton Crouse-Hinds series Pauluhn 740/741 spot light, Incandescent lamp, Heat resistant glass lens, Copper-free aluminum, Surface mount, Wide optical distribution, Shock mount, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn 740/741 spot light
Catalog Number
741ASMRSWFL
UPC
662276386549
Product Length/Depth
10.06 in
Product Height
12.69 in
Product Width
8.88 in
Product Weight
10.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Wattage
300W
Lamp type
Incandescent
Optical distribution
Wide
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Special features
Shock mount
Crouse-Hinds Pauluhn 700 Series Industrial Spot Lights catalog page
IF LBL1482 - Lens Replacement for 746M Industrial Spot Lights
Eaton Specification Sheet - 741ASMRSWFL
The 300W incandescent lamp delivers bright, wide-distribution illumination that reduces dark spots across large enclosures. The business impact is improved operator visibility, fewer misfeeds, and safer work zones, especially in production lines and utility rooms. It’s well-suited for surface-mounted spot lighting in facilities where dependable, high-intensity lighting supports process monitoring and inspection tasks. Copper-free aluminum housing plus a heat-resistant glass lens provide corrosion resistance and thermal stability in harsh environments. The result is longer fixture life and reduced maintenance, even in damp or dusty areas, with retrofit-friendly compatibility to Pauluhn 700 Series layouts that minimize downtime during upgrades. Shock mounting and a rugged enclosure improve resistance to vibration and impact common in industrial settings, lowering replacement cycles and total cost of ownership while simplifying wiring on 120 Vac systems. Certifications and compliance—IP66 and NEMA 4 with NEC/CEC—allow deployment in ordinary locations without extra enclosures, streamlining procurement and installation. Surface-mount capability and a weight-conscious profile support quick mounting on walls or structures, while the broad optical distribution helps facilities meet strict task lighting standards without overbuilding electrical systems. Overall, the 741ASMRSWFL blends reliability, code compliance, and ease of install to support safer, more productive operations in challenging environments.
Get a Quick Quote for a Eaton 741ASMRSWFL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 741ASMRSWFL?
Enquire Now
FAQs
Installation begins with mounting the copper-free aluminum housing to a suitable wall or fixture surface using standard hardware. The unit’s surface-mount design simplifies alignment along sight-lines, and the shock-mounted assembly helps tolerate nearby vibration. Connect to a 120V AC power source, verify IP66/NEMA 4 seals are intact, and test illumination. This approach minimizes downtime and supports quick retrofits in non-hazardous areas.
The fixture uses a 300W incandescent lamp operating at 120 Vac. It is designed for surface mounting with a wide optical distribution to maximize coverage across large spaces. The assembly weighs about 10.2 lb, and the housing is copper-free aluminum with a heat-resistant glass lens, optimized for vibration and heat in industrial environments.
Yes. The unit is rated IP66 and NEMA 4, and is intended for Ordinary/Non-Hazardous Locations. This makes it appropriate for general manufacturing floors, control rooms, and other non-hazardous areas where robust protection against dust and water jets is required, while meeting NEC/CEC electrical standards.
The fixture complies with NEC/CEC electrical standards and carries a NEMA 4 enclosure rating along with IP66 ingress protection. These certifications ensure reliability in dusty and wet environments, and they support safe operation in ordinary location applications without additional enclosures.
The copper-free aluminum housing, heat-resistant lens, and shock-mounted design reduce corrosion and vibration-related failures, lowering maintenance costs and downtime. The surface-mount installation speeds retrofits, shortening commissioning times and enabling faster return on investment in both upgrades and new-build projects.
