Eaton 741DC Squeeze Connector - 90 Degree FMC
Part Number: 741DC
Quick Summary
The Eaton 741DC squeeze connector provides a secure FMC termination for control panels and equipment enclosures. In tight cabinets and crowded conduits, space constraints and misalignment slow builds; this 90° design speeds routing and field terminations while preserving a robust mechanical grip. The part meets NEC/CEC standards and carries UL certification for FMC connectors, including Canada, with area classification suitable for Ordinary/Non-Hazardous locations. Its zinc die-cast body, non-insulated interface, and 1-1/2" trade size support durable, cost-effective installations in automation projects. By streamlining routing, reducing hardware counts, and easing inspections, it achieves faster commissioning, lower maintenance risk, and consistent performance across industrial wiring and connectivity applications.
Product Information
Extended Description

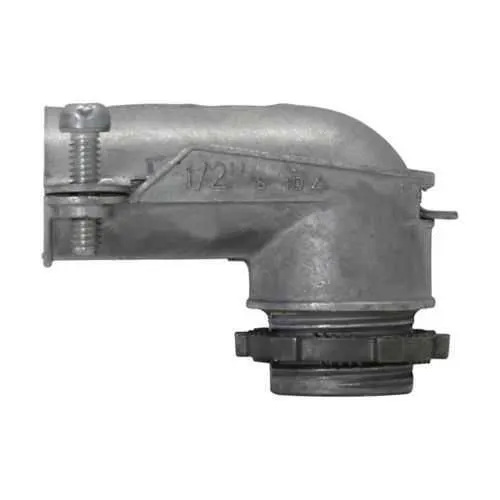

741DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, 90° angle, Non-insulated, Zinc die cast, 1-1/2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
741DC
UPC
784564003591
Product Length/Depth
4.77 in
Product Height
3.33 in
Product Width
3.38 in
Product Weight
1.17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
90° angle
Insulator
Non-insulated
Trade size
1-1/2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 741DC
Feature → Business Impact → Application: The 90° squeeze-type design simplifies routing in tight control panels, delivering faster, more reliable terminations and reducing install time for FMC conduit connections in automation projects. This improves panel throughput and wiring accuracy in complex machinery layouts. Feature: Zinc die-cast body; Impact: rugged durability and enhanced corrosion resistance for harsh factory environments, extending service life in industrial wiring applications. Application: control panels and equipment enclosures requiring long-term reliability. Feature: Non-insulated interface; Impact: lower material and labor costs during field terminations, enabling faster commissioning in ordinary locations. Application: FMC conduit fittings in mass assembly lines and process equipment. Feature: Trade size 1-1/2"; Impact: broad compatibility with standard FMC inventories, reducing parts variance and easing procurement. Application: new-build and retrofit wiring projects in automation systems. Feature: NEC/CEC compliance plus UL certification; Impact: faster approvals and safer installations, minimizing rework and inspection delays. Application: wiring and connectivity across automation environments. Feature: Dimensions and weight (4.77 in L, 3.38 in W, 3.33 in H, 1.17 lb); Impact: predictable space planning and inventory management for panel builders. Application: layout planning in control rooms and equipment cabinets.
Get a Quick Quote for a Eaton 741DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 741DC?
Enquire Now
FAQs
The 741DC is a squeeze-type FMC connector designed to join flexible metal conduit to equipment at a 90° angle. With a 1-1/2 inch trade size and a zinc die-cast body, it provides a secure, non-insulated termination suitable for ordinary locations, aiding clean routing in control panels and industrial machinery wiring.
The product data indicates NEC/CEC compliance and references UL certification in the downloadable materials, including Canada-specific listings. While primarily specified for NEC/CEC standards and ordinary/non-hazardous locations, the FMC UL certification pages confirm regulatory approval for multiple markets, including Canada where applicable.
The 741DC’s 90° squeeze design simplifies installation in confined spaces, reduces hardware counts, and provides a secure mechanical grip on FMC conduit. This translates to faster routing, fewer alignment issues, and lower labor costs during field terminations, especially in tight control panels and equipment enclosures.
Ideal for industrial control panels, machine wiring, and FMC conduit systems in ordinary locations, the 741DC supports quick routing and robust connections for automation equipment, robotics installations, and process lines where space constraints and NEC/CEC compliance matter.
Key specs include a 1-1/2" trade size, FMC conduit type, 90° angle, non-insulated insulator, zinc die-cast body, and dimensions of approximately 4.77 in length, 3.33 in height, and 3.38 in width, ensuring compatibility with standard FMC fittings and enclosure footprints.
