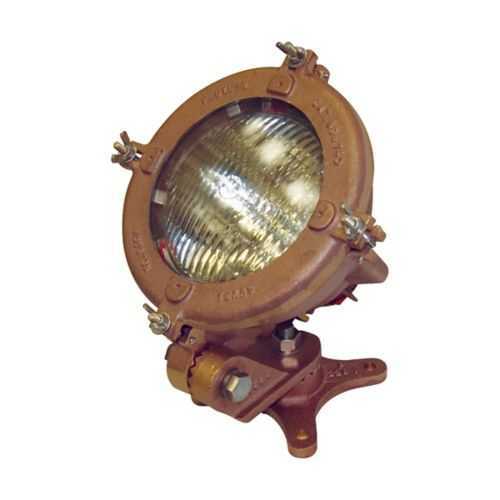

Eaton 741SM Spot Light - Brass Housing, 300W, IP66
Part Number: 741SM
Quick Summary
The Eaton 741SM spot light delivers high-intensity surface-mounted illumination for industrial facilities and process plants. It addresses the common pain of harsh environments where lens damage, heat buildup, and maintenance downtime disrupt production. The unit carries IP66 ingress protection, a NEMA 4 enclosure rating, and NEC/CEC compliance, giving robust performance in demanding locations. Built with brass housing and a heat-resistant glass lens, it is designed for long service life and predictable operation, even in challenging conditions. For Pauluhn 700 Series workflows, it provides a reliable lighting solution that integrates with standard 120 VAC power and typical facility layouts.
Product Information
Extended Description
741SM Eaton: Eaton Crouse-Hinds series Pauluhn 740/741 spot light, Incandescent lamp, Heat resistant glass lens, Brass, Surface mount, Medium optical distribution, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn 740/741 spot light
Catalog Number
741SM
UPC
662276386556
Product Length/Depth
10.06 in
Product Height
12.69 in
Product Width
8.88 in
Product Weight
19 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Material
Brass
Wattage
300W
Lamp type
Incandescent
Optical distribution
Medium
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Crouse-Hinds Pauluhn 700 Series Industrial Spot Lights catalog page
IF LBL1482 - Lens Replacement for 746M Industrial Spot Lights
Eaton Specification Sheet - 741SM
Feature → Business Impact → Application: 300W incandescent lamp in brass housing delivers bright, dependable illumination, improving visibility for operators and safety in spot lighting on equipment, docks, and work cells. This supports faster cycle times and fewer errors in production. Feature → Business Impact → Application: Heat-resistant glass lens resists thermal damage in high-temperature zones, reducing lens replacement costs and downtime; ideal for proximity to heat sources or open equipment. Feature → Business Impact → Application: Surface mounting with brass housing provides rugged, corrosion-resistant construction, extending service life in dusty or damp environments and simplifying field installation in ceilings, walls, or canopy mounts. Feature → Business Impact → Application: Medium optical distribution ensures balanced coverage across targets, minimizing hot spots and enabling consistent measurements in process areas. Feature → Business Impact → Application: IP66 protection and NEMA 4 enclosure deliver reliable performance in ordinary/non-hazardous locations, reducing maintenance cycles and safeguarding critical lighting. Feature → Business Impact → Application: The compact dimensions and 19 lb weight facilitate integration into mechanical layouts and mounting fixtures, supporting rapid deployment in new builds or retrofits.
Get a Quick Quote for a Eaton 741SM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 741SM?
Enquire Now
FAQs
To install the 741SM, mount the fixture on a suitable flat surface using the standard mounting method, connect to a 120 VAC supply, and ensure proper clearance for heat dissipation. If installing outdoors, use a weatherproof enclosure. For future maintenance or lens care, refer to the lens replacement guidance IF LBL1482 for proper procedures.
Key specifications include 300W incandescent lamp, 120 VAC, brass housing, heat-resistant glass lens, medium optical distribution, surface mounting, 10.06 in length, 12.69 in height, 8.88 in width, and 19 lb weight. Certifications include IP66, NEMA 4, and NEC/CEC compliance for ordinary/non-hazardous locations.
Yes. The 741SM is explicitly rated for Ordinary/Non-Hazardous Locations and combines IP66 ingress protection with a NEMA 4 enclosure, making it suitable for factory floors, warehouses, and outdoor cabinets without special hazardous-area modifications.
The unit meets NEC/CEC standards, provides IP66 ingress protection, and carries a NEMA 4 enclosure rating. It is designed for Pauluhn 700 Series applications and is appropriate for surface-mount installations in industrial facilities.
Maintenance is aided by a heat-resistant glass lens and brass housing that resist wear, with lens replacement guidance available via IF LBL1482 if needed. The robust construction supports long service life, reducing downtime and maintenance costs, which translates to lower total cost of ownership in demanding environments.
