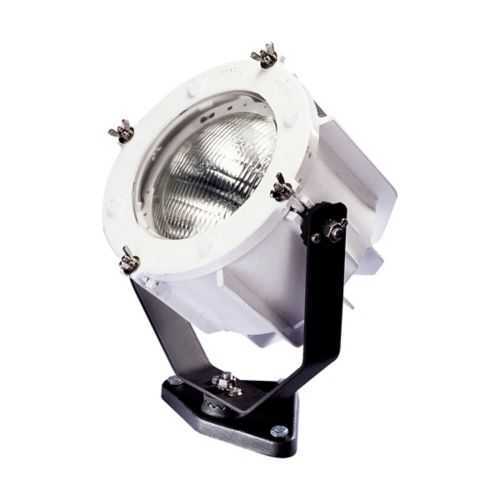

Eaton 746AMR Spot Light - IP66, 4X NEMA Rated, Weatherproof
Part Number: 746AMR
Quick Summary
The Eaton 746AMR spot light is a rugged illumination solution for industrial environments requiring reliable, surface-mounted lighting. It delivers focused output where task lighting and machine visibility matter most, helping operators maintain accuracy and safety. Maintenance downtime and lens damage are common pain points in harsh plants; this model mitigates those issues with a copper-free aluminum housing and a heat-resistant glass lens. With IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC compliance, it meets demanding industry standards while staying in ordinary or non-hazardous locations. The combination of a 120 VAC, 300W incandescent lamp and medium optical distribution supports consistent illumination across work cells, bays, and exterior plant areas, enhancing throughput and reducing energy waste in routine operations.
Product Information
Extended Description
746AMR Eaton: Eaton Crouse-Hinds series Pauluhn 746M spot light, Incandescent lamp, Heat resistant glass lens, Copper-free aluminum, Surface mount, Medium optical distribution, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn 746M spot light
Catalog Number
746AMR
UPC
662276386624
Product Length/Depth
14.63 in
Product Height
17 in
Product Width
11.25 in
Product Weight
22 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Wattage
300W
Lamp type
Incandescent
Optical distribution
Medium
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Crouse-Hinds Pauluhn 700 Series Industrial Spot Lights catalog page
IF LBL1482 - Lens Replacement for 746M Industrial Spot Lights
IF LBL1482 - Lens Replacement for 746M Industrial Spot Lights
Eaton Specification Sheet - 746AMR
Copper-free aluminum housing and heat-resistant glass lens deliver superior corrosion resistance in damp, washdown, and outdoor environments. This reduces maintenance costs and extends service life, lowering total cost of ownership for industrial lighting fleets. Applications span production floors, outdoor equipment enclosures, and material handling areas, where reliability directly impacts productivity. The 300W incandescent lamp at 120 VAC with medium optical distribution provides dependable, uniform illumination that supports operator accuracy and safety while meeting common facility standards. IP66 ingress protection and NEMA 4X enclosure protect against dust, water jets, and chemical exposure, dramatically reducing downtime in harsh facilities. Surface mounting simplifies retrofit and installation, especially when upgrading Pauluhn 700 Series fixtures; lens replacement guidance is readily available via LBL1482, ensuring quick maintenance. This fixture aligns with NEC/CEC standards, delivering compliant, long-life lighting in ordinary/non-hazardous locations. In automation-heavy environments, the 746AMR supports modular expansion and scalable maintenance planning, contributing to lower lifecycle costs and improved OEE. Long-tail keywords: Eaton 746AMR industrial lighting, Pauluhn 700 Series spot lights, copper-free aluminum housing, IP66 industrial lighting, surface-mounted light 120V, NEMA 4X enclosure, heat-resistant glass lens, ordinary locations LED not applicable here, 300W incandescent fixture.
Get a Quick Quote for a Eaton 746AMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 746AMR?
Enquire Now
FAQs
Yes. The 746AMR is designed as part of the Crouse-Hinds Pauluhn 700 Series family and supports surface mounting in retrofit applications. It uses a 120 VAC, 300W incandescent lamp with a copper-free aluminum housing and heat-resistant glass lens. For retrofit guidance, refer to the catalog page and installation sheets such as LBL1482, which outline lens replacements and mounting considerations to ensure a seamless upgrade path.
Key specs include a 300W incandescent lamp operating at 120 VAC, with medium optical distribution for balanced area lighting. The housing is copper-free aluminum, featuring a heat-resistant glass lens. The unit carries IP66 ingress protection and a NEMA 4X enclosure, making it suitable for ordinary/non-hazardous locations. Dimensions are 14.63 in length, 17 in height, and 11.25 in width, with a weight of 22 lb.
The fixture is rated for Ordinary/Non-Hazardous Locations and is designed for both indoor and outdoor industrial use. With IP66 protection and NEMA 4X enclosure, it withstands dust, water exposure, and harsh climates typical of factories, loading docks, and exterior plant areas. The surface-mount design supports straightforward installation in spaces with limited access or existing fixture footprints.
The 746AMR complies with NEC/CEC standards and features a NEMA 4X enclosure along with IP66 ingress protection. It is rated for Ordinary/Non-Hazardous Locations, ensuring regulatory alignment for non-hazardous industrial environments. These certifications support safety, reliability, and compliance in electrical installations across manufacturing facilities.
Eaton provides installation and maintenance resources including the lens replacement guidance labeled LBL1482 and the Eaton 746AMR specification sheet. Additional catalog pages for the 700 Series spot lights offer retrofit and part information. Regular maintenance should follow these documents to ensure seal integrity, avoid ingress issues, and extend lamp life, thereby reducing downtime and replacement costs.
