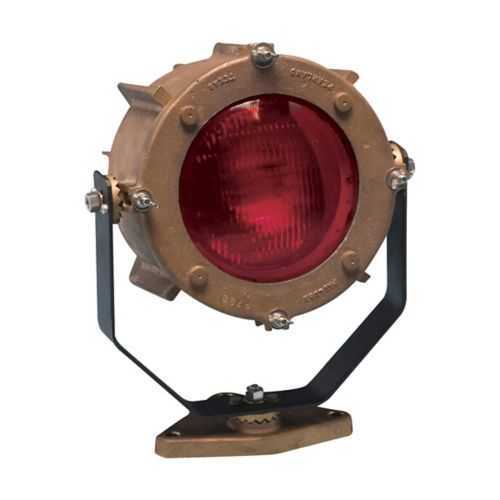

Eaton 746BMR-28V Industrial Spot Light - IP66 / 4X
Part Number: 746BMR-28V
Quick Summary
The Eaton 746BMR-28V industrial spot light delivers high-output illumination for perimeter and equipment areas in harsh environments. Engineers struggle with corrosion, dust ingress, and frequent maintenance in demanding industrial locations. This fixture aligns NEC/CEC standards, features NEMA 4X housing and IP66 ingress protection for reliable service. Designed for surface mounting with brass construction and heat-resistant glass, it reduces replacement cycles and downtime, while fitting Eaton's Pauluhn portfolio. For project timelines and operating budgets, this lighting solution supports dependable operation in washdown areas and remote facilities.
Product Information
Extended Description
746BMR-28V Eaton: Eaton Crouse-Hinds series Pauluhn 746M spot light, Incandescent lamp, Heat resistant glass lens, Brass, Surface mount, Medium optical distribution, 28 Vdc, 450W
Product Name
Eaton Crouse-Hinds series Pauluhn 746M spot light
Catalog Number
746BMR-28V
UPC
662276386785
Product Length/Depth
14.63 in
Product Height
17 in
Product Width
11.25 in
Product Weight
50 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
Brass
Wattage
450W
Lamp type
Incandescent
Optical distribution
Medium
Mounting Method
Surface
Voltage rating
28 Vdc
Lens material
Heat resistant glass
Crouse-Hinds Pauluhn 700 Series Industrial Spot Lights catalog page
IF LBL1236 - 746M Industrial Spot Lights
IF LBL1236 - 746M Industrial Spot Lights
Eaton Specification Sheet - 746BMR-28V
Feature: Rugged brass enclosure provides robust protection in demanding environments. Business Impact: With IP66 ingress protection and NEMA 4X enclosure, the light resists dust, water, and corrosion, reducing field service calls and extending service life. Application: Outdoor yards, wet plant rooms, and facilities subject to washdowns benefit from durable, long-life lighting. Feature: 28 Vdc, 450W incandescent lamp with heat-resistant glass lens delivers reliable, high-intensity illumination. Business Impact: High lumen output with improved beam stability minimizes shadowed zones and operator fatigue, lowering risk and downtime. Application: Equipment bays, control panels, and assembly lines requiring strong, focused lighting. Feature: Surface mounting simplifies installation and retrofits into existing Pauluhn 700 Series setups. Business Impact: Faster commissioning and lower installation cost, enabling scalable deployment across multiple lines. Application: Retrofit projects and new-builds in industrial plants. Feature: Medium optical distribution optimizes light spread to reduce glare while maximizing task visibility. Business Impact: Enhanced safety and productivity due to better visibility in critical work zones. Application: Aisles, workbenches, and front-of-machine lighting. Feature: NEC/CEC compliance and ordinary/non-hazardous location suitability streamline procurement and regulatory alignment. Business Impact: Reduces certification risk and accelerates project approvals. Application: General industrial facilities and non-hazardous environments needing compliant lighting. Insight: Pauluhn 700 Series heritage combines reliability with proven field performance across sectors, supporting predictable maintenance cycles and total cost of ownership improvements.
Get a Quick Quote for a Eaton 746BMR-28V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 746BMR-28V?
Enquire Now
FAQs
Installers should verify the mounting surface is clean and level, then attach the brass housing to the mounting plate using standard hardware. The 746BMR-28V is designed for compatibility with Pauluhn 700 Series fixtures, enabling straightforward retrofits. Ensure electrical connections are made to a 28 Vdc supply with appropriate protection and follow the Instructions LBL1236 for 746M configurations to avoid voiding NEC/CEC compliance.
The 746BMR-28V operates at 28 Vdc with a 450W incandescent lamp. It uses a brass enclosure with a heat-resistant glass lens and provides medium optical distribution. It carries IP66 ingress protection and a NEMA 4X rating, suitable for ordinary/non-hazardous locations. Dimensions include approximately 14.63 in length, 17 in height, and 11.25 in width.
Yes. The IP66 ingress protection and NEMA 4X enclosure allow operation in harsh, dusty, and wet environments. It is intended for ordinary/non-hazardous locations and provides reliable performance in outdoor yards, plant exterior spaces, and washdown areas.
The fixture complies with NEC/CEC standards and is rated for ordinary/non-hazardous locations. It features NEMA 4X and IP66 protection, ensuring suitability for rugged industrial environments while aligning with North American electrical and safety codes.
The brass housing and heat-resistant glass lens help resist corrosion and lens damage, reducing maintenance cycles. Its rugged IP66/NEMA 4X construction supports longer service life in harsh environments, while compatibility with existing Pauluhn components simplifies spares management and total cost of ownership.
