Eaton 749AGRD Industrial Spot Light - IP66 Rated

Part Number: 749AGRD
Manufacturer
Eaton
Part number
749AGRD

Quick Summary

Eaton 749AGRD Industrial Spot Light provides high-intensity illumination for rugged industrial facilities. This fixture addresses downtime and maintenance challenges by delivering durable, long-life lighting in harsh environments. With IP66 ingress protection, a NEMA 4 enclosure, and NEC/CEC compliance, it meets core safety and reliability standards for manufacturing, mining, and automation facilities. The unit is designed for surface mounting with medium optical distribution, offering straightforward installation and predictable light output. Its copper-free aluminum housing and heat-resistant glass lens resist corrosion and heat, reducing replacement costs. By combining rugged construction with easy installation, it supports scalable lighting designs while helping facilities meet regulatory requirements and budget targets.

Product Information

Extended Description

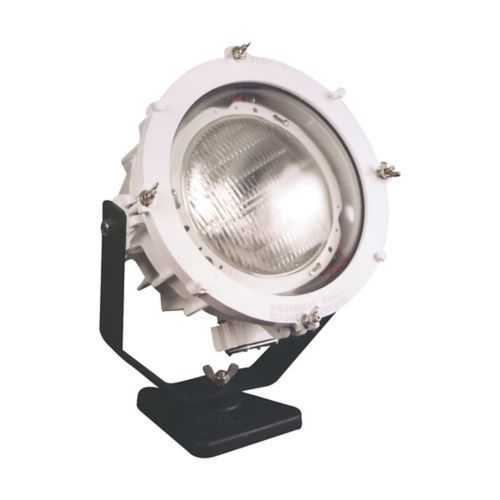

749AGRD Eaton: Eaton Crouse-Hinds series Pauluhn 749 spot light, Incandescent lamp, Heat resistant glass lens, Copper-free aluminum, Surface mount, Medium optical distribution, With Guard, 120 Vac, 500W
Product Name
Eaton Crouse-Hinds series Pauluhn 749 spot light
Catalog Number
749AGRD
UPC
662276386860
Product Length/Depth
14.5 in
Product Height
18 in
Product Width
11 in
Product Weight
24 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Wattage
500W
Lamp type
Incandescent
Optical distribution
Medium
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Special features
Guard
500W incandescent lamp delivers high luminous output for clear, detailed visibility in large spaces. This translates to faster inspections, safer equipment operation, and fewer reworks on manufacturing floors and maintenance bays. Ideal for surface-mounted installations in warehouses and outdoor enclosures where rugged performance matters. Copper-free aluminum housing provides excellent corrosion resistance while keeping weight manageable. The result is lower maintenance costs and longer service life, particularly in harsh or coastal environments. This makes it well suited for outdoor yards, loading docks, and exposed industrial areas. Heat resistant glass lens and built-in guard maximize durability against heat, impact and accidental contact. The business benefit is extended fixture life and safer operation around hot equipment. Applications include machine shops, ovens, and spray booths where heat and impact are ongoing concerns. Surface mounting with medium optical distribution simplifies installation and ensures consistent light coverage across work zones. This reduces field labor time and ensures compliant illumination layouts in new or retrofit projects. Compatible with Pauluhn 700 Series fixtures and Eaton catalogs, it aligns with existing infrastructure. IP66 ingress protection and NEMA 4 rating provide enclosure reliability in ordinary locations while meeting NEC/CEC standards. This combination reduces risk of water ingress and dust contamination, ensuring uptime in standard manufacturing environments. It supports cost-effective, code-compliant lighting designs for diverse facilities. Overall low maintenance and robust construction contribute to favorable total cost of ownership. The copper-free aluminum and standard mounting options enable quick replacements and spare parts compatibility, improving ROI in long-term facility upkeep.

Get a Quick Quote for a Eaton 749AGRD

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton 749AGRD? Enquire Now

FAQs

The 749AGRD is designed for surface mounting, enabling quick alignment and secure attachment to flat surfaces such as walls or equipment housings. It uses standard mounting provisions compatible with the Pauluhn 700 Series footprint, which minimizes field modifications. This simplifies retrofits and new installations, reducing labor time and startup delays.
The fixture uses a 500W incandescent lamp and operates at 120 VAC. It measures 14.5 inches in length, 18 inches high, and 11 inches wide, with an estimated weight of 24 lb. The combination provides robust illumination for larger work zones while maintaining predictable electrical performance in typical industrial circuits.
The 749AGRD is rated for Ordinary/Non-Hazardous Locations and features an IP66 enclosure with a NEMA 4 rating. It is not certified for hazardous area classifications. This makes it ideal for warehouses, workshops, and outdoor spaces where dust and water exposure occur, while meeting NEC/CEC compliance for general industry use.
It complies with NEC/CEC standards, carries a NEMA 4 enclosure rating, and IP66 ingress protection. These certifications confirm suitability for non-hazardous industrial environments and ensure resistance to dust and water ingress, supporting safe operation and regulatory adherence in manufacturing and facilities management.
Expect improved reliability and reduced maintenance with a copper-free aluminum housing and heat resistant glass lens that resist corrosion and heat. The guard and IP66/NEMA 4 construction minimize damage from impacts and environment, leading to lower replacement costs, less downtime, and a favorable total cost of ownership over the fixture’s life cycle.
