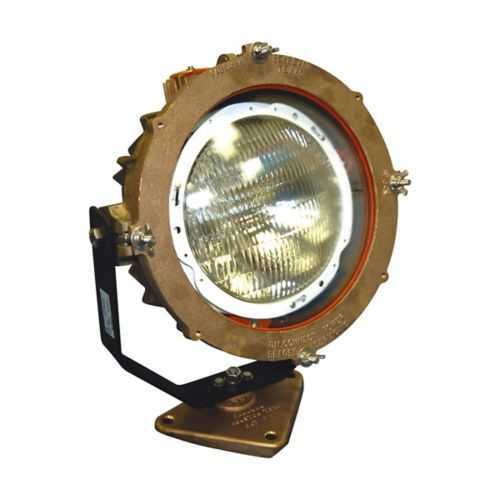

Eaton 749B Spot Light - IP66 NEMA 4 Brass, 120 Vac
Part Number: 749B
Quick Summary
The Eaton 749B spot light delivers robust illumination for industrial facilities and hazardous-area applications. Maintenance downtime and inconsistent lighting can compromise safety and productivity in harsh environments. With IP66 ingress protection, NEMA 4 enclosure, and NEC/CEC compliance, it thrives where others fail. Brass construction and a heat-resistant glass lens support long service life in washdowns and heat cycles, while surface mounting simplifies retrofits in existing installations and new builds. This proven combination delivers reliable, compliant lighting that reduces maintenance costs and supports safer, more productive operations across industrial facilities worldwide. Its rugged design also reduces total cost of ownership dramatically.
Product Information
Extended Description
749B Eaton: Eaton Crouse-Hinds series Pauluhn 749 spot light, Incandescent lamp, Heat resistant glass lens, Brass, Surface mount, Medium optical distribution, 120 Vac, 500W
Product Name
Eaton Crouse-Hinds series Pauluhn 749 spot light
Catalog Number
749B
UPC
662276386969
Product Length/Depth
14.5 in
Product Height
18 in
Product Width
11 in
Product Weight
54 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Material
Brass
Wattage
500W
Lamp type
Incandescent
Optical distribution
Medium
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Crouse-Hinds Pauluhn 700 Series Industrial Spot Lights catalog page
IF LBL1482 - Lens Replacement for 746M Industrial Spot Lights
IF LBL1482 - Lens Replacement for 746M Industrial Spot Lights
Eaton Specification Sheet - 749B
Feature: Brass housing and heat-resistant glass lens provide durable protection against corrosion, heat, and impact. Benefit: Extends service life in washdowns and high-temperature cycles, reducing replacement intervals. Application: Ideal for industrial spaces with frequent washdowns and exposure to heat. Feature: Surface mounting enables quick retrofit and clean aesthetic integration. Benefit: Minimized installation time and reduced commissioning costs, accelerating project timelines. Application: Retrofit projects in existing facilities and new builds alike. Feature: IP66 ingress protection and NEMA 4 enclosure. Benefit: Superior dust and water ingress resistance, ensuring reliable operation in harsh environments. Application: Outdoor bays, washdown areas, and machinery housing. Feature: Medium optical distribution and 500W incandescent lamp. Benefit: Predictable illumination patterns for task lighting and equipment work cells, improving worker safety. Application: Spots for conveyors, panels, and service corridors. Feature: 120 Vac electrical rating. Benefit: Simple, widely available power supply compatibility with minimal integration effort. Application: Most industrial plants with standard mains. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Benefit: Regulatory alignment and safe operation in common industrial settings. Application: Facilities requiring code-compliant lighting with straightforward approvals.
Get a Quick Quote for a Eaton 749B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 749B?
Enquire Now
FAQs
Plan for a surface-mount installation with a standard 120 VAC supply. The unit weighs 54 lb and measures 14.5 in long, 11 in wide, and 18 in high, so ensure adequate mounting surface and clearance. It is rated for Ordinary/Non-Hazardous locations and carries IP66 and NEMA 4 protection, suitable for washdowns and dusty environments.
The 749B is part of the Pauluhn line and uses surface mounting for quick retrofits. While it shares the Pauluhn lineage, verify mounting footprints and wiring configurations on site. Refer to the Crouse-Hinds Pauluhn catalog page for compatibility guidance and the installation sheets for lens and mounting details.
The 749B carries NEC/CEC standards compliance and a NEMA 4 rating, along with IP66 ingress protection. It is designed for Ordinary/Non-Hazardous locations, aligning with typical industrial safety and installation codes while enabling reliable, code-compliant operation in harsh environments.
The unit uses a heat-resistant glass lens. For lens replacements and related service, consult Eaton’s installation sheets (LBL1482 references) and the 700 Series catalog pages. These resources provide guidance on lens maintenance, part numbers, and replacement procedures to minimize downtime.
Operating at 120 VAC with a 500W incandescent lamp, the 749B delivers strong illumination with simple power delivery—beneficial where LED retrofits aren’t practical. Its brass housing and robust enclosure protect against corrosion and ingress, improving uptime and lowering maintenance costs in industrial environments.
