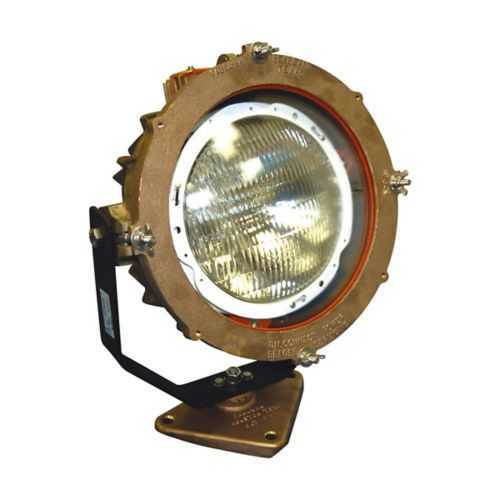

Eaton 749BQWFL Spot Light - IP66, 120V, 1000W
Part Number: 749BQWFL
Quick Summary
Eaton 749BQWFL Spot Light provides rugged illumination for industrial facilities, warehouses, and outdoor areas. Engineers often struggle with fixtures that corrode, fail in damp environments, or require frequent maintenance and costly replacements. This model delivers robust durability with IP66 ingress protection and a NEMA 4 enclosure, while NEC/CEC compliance keeps installations in scope for regulated facilities. The heat-resistant glass lens and brass construction help resist harsh operating conditions, reducing downtime and service calls. As a surface-mount lighting option, it integrates with existing electrical runs, enabling faster installations and lower total cost of ownership for industrial lighting upgrades. Designed for continuous operation and easy field replacement of the quartz halogen lamp.
Product Information
Extended Description
749BQWFL Eaton: Eaton Crouse-Hinds series Pauluhn 749 spot light, Quartz halogen lamp, Heat resistant glass lens, Brass, Surface mount, Wide optical distribution, 120 Vac, 1000W
Product Name
Eaton Crouse-Hinds series Pauluhn 749 spot light
Catalog Number
749BQWFL
UPC
662276387010
Product Length/Depth
14.5 in
Product Height
18 in
Product Width
11 in
Product Weight
59 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Material
Brass
Wattage
1000W
Lamp type
Quartz halogen
Optical distribution
Wide
Mounting Method
Surface
Voltage rating
120 Vac
Lens material
Heat resistant glass
Crouse-Hinds Pauluhn 700 Series Industrial Spot Lights catalog page
IF LBL1381 - 749 Industrial Spot Lights
IF LBL1381 - 749 Industrial Spot Lights
Eaton Specification Sheet - 749BQWFL
Feature: 1000W quartz halogen lamp delivers high luminous intensity and quick start-up, enabling effective coverage of large work areas. Business Impact: Reduces required fixture count and improves task lighting quality, lowering capital expense and energy-related downtime. Application: Ideal for warehouses, production floors, and outdoor loading zones where bright, dependable illumination is essential. Feature: Brass housing with heat resistant glass lens provides exceptional durability in dusty, humid, and high-temperature environments. Business Impact: Minimizes corrosion- and heat-related maintenance, extending service life and reducing maintenance cycles. Application: Outdoor installations and interior spaces with proximity to heat sources. Feature: Wide optical distribution supports broader light reach with fewer fixtures, improving uniformity and reducing installation complexity. Business Impact: Higher efficiency per lumen, lower labor costs for mounting and wiring, and faster project completion. Application: General area lighting for large rooms, aisles, and outdoor yards. Feature: IP66 ingress protection and NEMA 4 enclosure deliver weatherproof performance in ordinary/non-hazardous locations. Business Impact: Ensures reliable operation during rain, dust, and wash-down cycles, improving safety and uptime. Application: Harsh environments, docks, and exterior applications where compliance with NEC/CEC is required. Feature: 120 VAC operation and 59 lb brass fixture with surface mounting simplifies integration into existing electrical layouts. Business Impact: Streamlined installation, predictable power planning, and robust physical support for high-wattage lighting. Application: Retrofit and new-builds in industrial facilities seeking durable, code-compliant lighting.
Get a Quick Quote for a Eaton 749BQWFL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 749BQWFL?
Enquire Now
FAQs
The 749BQWFL uses surface mounting and runs on a 120 VAC supply. Plan for a sturdy support surface capable of handling approximately 59 lb. Ensure compliance with NEC/CEC for ordinary/non-hazardous locations and provide proper conduit and housing connections. Use a qualified electrician to handle wiring, grounding, and securing the heavy fixture to prevent vibration or shift during operation.
IP66 and NEMA 4 provide superior protection against dust, water spray, and harsh weather, which is critical in outdoor loading docks, dusty production zones, and damp facilities. This combination reduces corrosion risk, lowers maintenance frequency, and ensures consistent performance in environments where standard fixtures might fail or require frequent servicing.
Wide optical distribution delivers broad, uniform illumination across large areas with fewer fixtures. This reduces capital expenditure on fixtures, lowers installation labor, and improves visibility for operators across aisles and work zones. The result is higher productivity, safer handling of materials, and more efficient space utilization.
Quartz halogen lamps are widely available and straightforward to replace, but expect periodic lamp replacement due to lumen depreciation. The heat-resistant glass lens and brass housing resist high-temperature and dusty environments, reducing corrosion. Schedule lamp-change intervals based on duty cycle and keep spare lamps readily available to minimize downtime during maintenance windows.
Eaton provides multiple resources: a Crouse-Hinds Pauluhn 700 Series catalog page, installation sheets LBL1381 (two versions for 749), and the Eaton specification sheet for the 749BQWFL. These documents cover installation steps, wiring, mounting guidance, and performance data to help ensure NEC/CEC compliance and proper integration into existing electrical systems.
