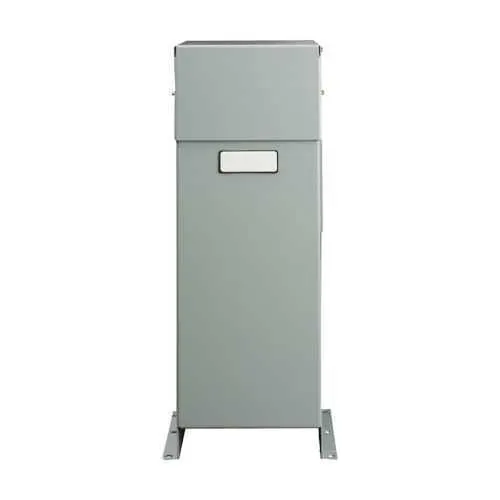

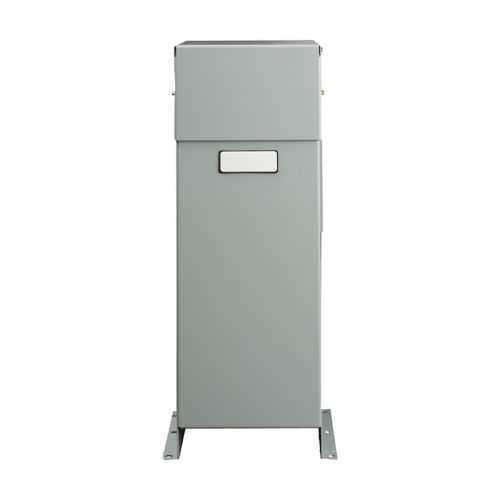

Eaton 75232HMURF LV Unipak capacitor bank - CSA Certified UL Listed
Part Number: 75232HMURF
Quick Summary
Eaton LV Unipak capacitor bank is designed to deliver precise reactive power control for three-phase industrial electrical systems. Facilities often wrestle with voltage swings, poor power factor, and rising energy costs, especially under heavy loads. CSA Certification and UL Listing ensure safety compliance during installation and operation. With a 75 kVA rating at 240V and a compact footprint, it supports scalable power-factor correction while minimizing space, installation time, and long-term operating costs for manufacturing, processing, and other demanding processes. It also helps reduce energy waste through improved PF and harmonic control, delivering measurable business value. This aligns with efficiency goals.
Product Information
Extended Description
75232HMURF Eaton: Eaton LV Unipak capacitor bank, Fixed Filter, 75 kvar 240V 3ph
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
75232HMURF
UPC
786685139623
Product Length/Depth
19.3 in
Product Height
36 in
Product Width
9.5 in
Product Weight
114.4 lb
Certifications
CSA Certified UL Listed
Phase
Three-phase
Voltage rating
240V
kVA rating
75 kVA
Fixed-filter design provides targeted harmonic suppression and reliable reactive power support, delivering a predictable 75 kVA at 240V. This reduces harmonic currents in upstream transformers and drives, lowering heat, improving transformer life, and minimizing drive trips on busy production lines. In practice, it supports effective power-factor correction in applications with mixed loads, including conveyors, pumps, and large HVAC systems where stability matters most. Three-phase, 240V operation with a 75 kVA rating provides scalable charging and discharge of reactive power to match load changes. The result is improved utility power factor, lower energy losses from line resistance, and reduced demand charges in facilities with fluctuating peak loads. This makes it well suited for manufacturing lines, processing facilities, and large motor drives where PF correction yields measurable financial returns. Compact footprint and weight support easy installation in existing electrical rooms. With a length/depth of 19.3 inches, a height of 36 inches, and a width of 9.5 inches, the unit minimizes space impact while maintaining robust protection in industrial environments. Weighing about 114.4 lb, it can be handled by standard crane or pallet equipment, simplifying retrofits and new installations alike. Certifications and safety approvals drive procurement confidence and regulatory compliance. CSA Certified and UL Listed markings validate electrical safety, enclosure integrity, and performance in North American facilities. These certifications simplify procurement, expedite safety approvals, and support ongoing maintenance programs by providing clearly documented conformance. In sensitive environments such as food processing or data centers, these approvals help satisfy internal and external audit requirements. Compatibility and installation efficiency are further enhanced by standard electrical interface expectations and customer support. The capacitor bank integrates with typical distribution schemes and benefits from Eaton's broader portfolio for spare parts and service. This reduces total cost of ownership by cutting commissioning time, simplifying diagnostics, and delivering consistent performance across multiple shifts and demanding production cycles.
Get a Quick Quote for a Eaton 75232HMURF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 75232HMURF?
Enquire Now
FAQs
The 75232HMURF is a three-phase 240V fixed-filter capacitor bank designed for standard electrical rooms. It fits a 19.3 inch depth, 36 inch height, and 9.5 inch width enclosure and weighs approximately 114.4 lb. Ensure adequate clearance for maintenance, proper enclosure, and a compliant connection to a suitable 240V distribution panel per applicable electrical codes.
It delivers 75 kVA at 240V in a three-phase configuration with a fixed-filter design for harmonics mitigation and reliable reactive power support. Core specs include 240V rating, three-phase operation, and safety approvals (CSA Certified, UL Listed). This makes it suitable for industrial drives, pumps, and large motors where consistent power-factor correction and reduced line losses matter.
Yes. The fixed-filter design targets harmonic current and supports PF correction in environments with significant harmonic content from drives and motors. By filtering specific noise components at the source, it minimizes adverse interactions with upstream transformers and switchgear. It is well-suited for manufacturing lines, HVAC systems, and material handling setups where harmonic distortion and voltage fluctuations are common.
The unit is CSA Certified and UL Listed, confirming compliance with North American electrical safety standards and enclosure integrity. These certifications simplify procurement, expedite safety approvals, and support ongoing maintenance programs by providing clearly documented conformance. In sensitive environments such as food processing or data centers, these approvals help satisfy internal and external audit requirements.
Maintenance for the 75232HMURF is minimal due to its passive components and solid-state operation, with no moving parts to wear. Energy savings from improved PF reduce utility charges and can shorten payback in facilities with heavy motor loads. Typical maintenance focuses on periodic inspection, safe enclosure, and verification of connections during scheduled outages.
