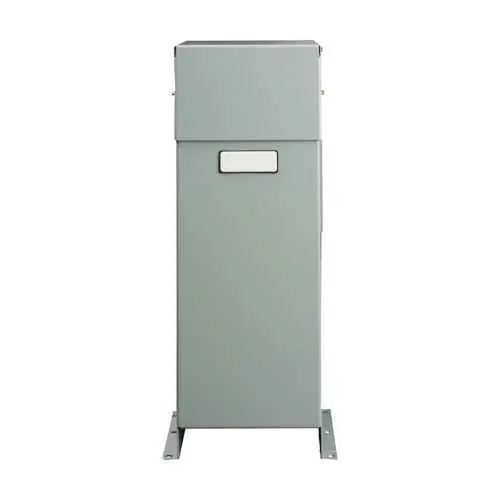

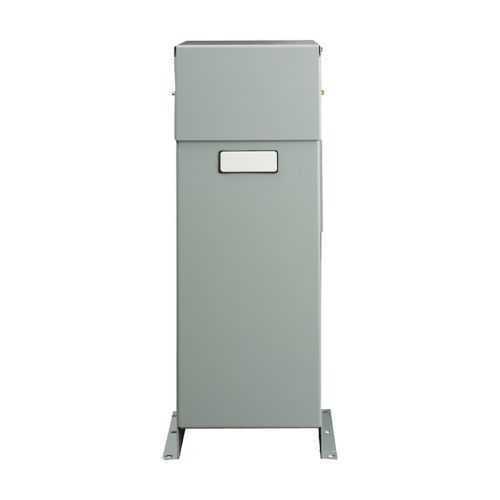

Eaton 75632HMURFY LV Unipak Capacitor Bank - UL 508A
Part Number: 75632HMURFY
Quick Summary
Eaton LV Unipak capacitor bank delivers detuned harmonic filtering and reactive power support for industrial electrical systems. Nonlinear loads can drive harmonics that overheat motors, trip breakers, and erode efficiency; this solution targets those challenges with a tuned, compact approach and robust build. Certifications UL 508A, UL 810, IEEE Std. 18, and CSA C22.2 No. 190 ensure safety and reliability when installed in control panels or switchgear environments. Designed for straightforward installation, scalable to 3-phase 600 V systems, and backed by Eaton’s warranty and service, it helps facilities meet power-quality targets while lowering lifecycle costs.
Product Information
Extended Description
75632HMURFY Eaton: Eaton LV Unipak capacitor bank, Fixed UNIPAK harmonic filter, Detuned, 75 kVAR, 600V, 74A, Three-phase, 60 Hz, 4.2 Harmonic tuning
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
75632HMURFY
UPC
786685878706
Product Length/Depth
33 in
Product Height
36 in
Product Width
21 in
Product Weight
280 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the product or eighteen (18) months from the date of shipment of the product, whichever occurs first. Plus 5 years on capacitor cells.
Certifications
UL 508A UL 810 IEEE Std. 18 CSA Std. C22.2 No. 190
Type
Detuned
Amperage Rating
74A
Frequency rating
60 Hz
Phase
Three-phase
Tuning
4.2H
Voltage rating
600 V
kVA rating
75 KVR
Eaton Specification Sheet - 75632HMURFY
Selling Policy 25-000 - Distribution and Control Products and Services
Detuned 75 kVAR, 600 V, 74 A, three-phase arrangement is engineered to suppress low-order harmonics without compromising reactive support. This yields lower line currents, reduced transformer losses, and improved voltage profiles for heavy loads. It’s ideal for manufacturing lines and data centers where non-linear equipment drives harmonic distortion, enabling smoother motor operation and fewer nuisance trips. In practice, you’ll notice steadier voltage sag performance and less audible hum on critical lines. With a 4.2 H tuning, the bank is tuned to the site harmonic spectrum, reducing resonance risk and optimizing filter effectiveness for your specific loads. This translates to predictable power quality, easier coordination with upstream reactors, and better compliance with harmonic limits. The detuned design minimizes adverse interactions with nearby equipment, supporting safer commissioning in busy switchgear rooms. Certified to UL 508A and UL 810 with IEEE Std. 18 and CSA C22.2 No. 190, the module supports safe installation in control panels and switchgear enclosures. Meeting these standards reduces procurement risk and accelerates commissioning for new or retrofit projects. The certifications also provide a clear benchmark for maintenance practices, diagnostics, and service standards that your electrical team can rely on. The enclosure-friendly footprint (33 in L, 36 in H, 21 in W) and 280 lb weight align with common panel layouts, easing mounting, wiring, and service access. It’s compatible with standard Eaton accessories and field wiring practices, simplifying installation and future upgrades. The three-phase, 60 Hz electrical rating ensures straightforward integration with existing plant infrastructure. Eaton backs the unit with a one-year installation warranty (or 18 months from shipment, whichever comes first) and provides 5-year coverage on capacitor cells, supporting long-term reliability and predictable maintenance budgeting. This combination reduces downtime risk for critical processes and helps justify the capital investment to stakeholders.
Get a Quick Quote for a Eaton 75632HMURFY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 75632HMURFY?
Enquire Now
FAQs
Plan for a three-phase 600 V panel environment with sufficient clearance for the 33 x 36 x 21 inch footprint and 280 lb weight. Ensure wiring practices follow NEC guidelines, use appropriate disconnects, and provide a stable mounting surface. Confirm space for future expansion and easy access for maintenance and testing per the UL 508A/UL 810 requirements.
Detuning shifts the filter’s resonant frequency away from dominant harmonic orders, reducing amplification of 5th and 7th harmonics. This lowers current distortion, minimizes voltage distortion, and decreases the likelihood of resonance with system impedances. The result is cleaner power, improved equipment performance, and easier compliance with harmonic limits for industrial loads.
Yes. The unit is designed for straightforward integration with standard Eaton control panels and switchgear. It adheres to common wiring practices, supports Eaton accessories, and aligns with UL 508A/UL 810 expectations. Compatibility simplifies commissioning, accelerates retrofit projects, and reduces field engineering time.
The product carries UL 508A and UL 810 certifications, along with IEEE Std. 18 and CSA C22.2 No. 190. These standards assure electrical safety, electrical noise and thermal performance, and panel-level reliability. For buyers, this means lower procurement risk, smoother audits, and warranties that align with industry best practices.
The unit includes a one-year warranty from installation or 18 months from shipment, whichever occurs first, plus a 5-year warranty on capacitor cells. This structure supports predictable maintenance budgeting, reduces unexpected downtime, and provides a clear path for field diagnostics and spare parts planning.
