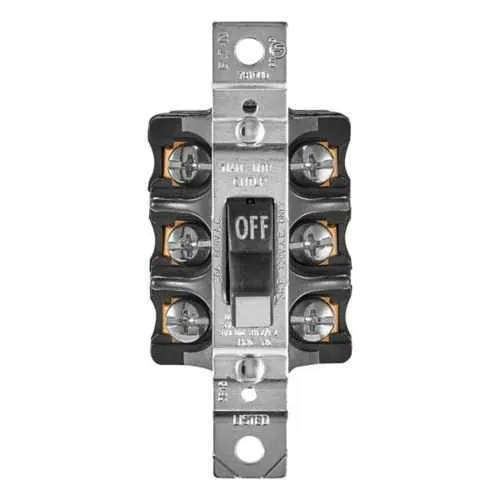

Eaton 7810UDST Manual Motor Controller - cULus Listed
Part Number: 7810UDST
Quick Summary
The Eaton 7810UDST manual motor controller provides reliable front-wiring control for 3-phase industrial motors in harsh environments. Operators and engineers often face miswiring and unsafe maintenance when wiring in tight panels, leading to downtime and costly repairs. This unit carries cULus Listing, a NEMA 1 enclosure, and a stainless steel housing, delivering safety and durability in demanding settings. The maintained, short-toggle actuator supports simple start/stop operations without accidental resets, while the front-wiring method simplifies field connections for #14-10 AWG conductors. With a 30A, 600V rating and three-pole, three-phase configuration, it aligns with common motor control schemes and procurement workflows, helping minimize spare parts and commissioning time while meeting industrial reliability goals.
Product Information
Extended Description
7810UDST Eaton: Eaton manual motor controller, #14-10 AWG, 30A, Industrial, 600V, Front, Short toggle, Maintained, Gray, NEMA Type 1, Enclosure: Stainless steel, Three-pole, Three-phase, Short toggle, Single-throw, Glass-filled nylon
Product Name
Eaton manual motor controller
Catalog Number
7810UDST
UPC
040893681825
Product Length/Depth
2.5 in
Product Height
3.88 in
Product Width
2.5 in
Product Weight
0.38 lb
Certifications
cULus Listed
Enclosure
NEMA 1
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Enclosure material
Stainless steel
Application
Industrial
Device grade
Industrial
Wiring method
Front
Switch type
Short toggle
Closure type
Maintained
Allowable wire size
#14-10 AWG
Material
Glass-filled nylon
Throw
Single-throw
Actuator
Short toggle
Color
Gray
Feature: The 3-pole, three-phase configuration is rated for 30A at 600V, aligning with standard industrial motors. This sizing minimizes over-dimensioning and helps control inrush during startup. Application-wide, it integrates with conveyors, pumps, and machine tools in manufacturing lines, delivering reliable torque, predictable performance, and reduced overheating in demanding environments. Feature: Front wiring with support for #14-10 AWG conductors simplifies field connections. Business Impact: Faster panel assembly, lower risk of miswiring, and easier termination in tight spaces. Application: Ideal for control panels and MCCs in space-constrained facilities. Feature: NEMA 1 stainless steel enclosure provides rugged indoor protection against dust and incidental moisture. Business Impact: Enhances longevity and reduces maintenance cycles in busy shop floors. Application: Suitable for factory floors, assembly lines, and instrument rooms where dependable enclosure integrity matters. Feature: Maintained, short-toggle operation offers a decisive on/off action with clear state indication. Business Impact: Improves safety during maintenance and reduces inadvertent starts. Application: Ideal for start/stop sequences in automated lines and manual overrides. Feature: Glass-filled nylon actuator and front-access wiring improve durability and serviceability. Business Impact: These materials resist wear in harsh environments, reducing replacement cycles. Application: Well-suited for harsh factory floors, automotive plants, and process lines. Feature: cULus Listing and compatibility with standard motor control practices. Business Impact: Streamlines procurement, supports regulatory compliance, and reduces spare parts complexity. Application: Integrates with control panels, MCCs, and plant-wide motor control architectures.
Get a Quick Quote for a Eaton 7810UDST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 7810UDST?
Enquire Now
FAQs
Mount the 7810UDST in a clean indoor panel with accessible front terminals. Use #14-10 AWG conductors rated for 600 V, connect the three-phase supply to the proper terminals, and secure the enclosure per NEMA 1 guidelines. Verify torque settings and insulation integrity before applying power to ensure safe operation.
The 7810UDST is rated for 30A at 600V in a three-pole, three-phase configuration. It uses a front-wiring method with a maintained short-toggle switch, designed to provide reliable start/stop control while minimizing inrush issues and heat buildup during motor startup.
Yes. The 7810UDST’s 30A/600V rating and 3-phase design suit common motors used on conveyors, pumps, and process equipment. Its front wiring simplifies panel wiring, while the maintained toggle offers clear start/stop signaling, improving reliability in material handling and fluid control applications.
The unit is cULus Listed and housed in a NEMA 1 enclosure with a stainless steel body, providing robust indoor protection and compliance with common industrial procurement standards. Always verify regional regulatory requirements for your specific installation.
Maintenance benefits come from front-access wiring points and a durable glass-filled nylon actuator, which resist wear and simplify serviceability. The maintained switch reduces mis-starts, while the compact, rugged enclosure minimizes panel footprint and spare parts needs, delivering lower lifecycle costs and faster return on investment for motor-control projects.
