Eaton 800413MVF3 LV Unipak capacitor bank - CSA Certified
Part Number: 800413MVF3
Quick Summary
Eaton LV Unipak capacitor bank provides reliable reactive power support for 4160 V three-phase systems in industrial facilities. Facility teams often wrestle with voltage instability, oversized capacitor banks, and maintenance access challenges that disrupt production schedules. CSA Certified and IEEE Std. 18 compliant designs, paired with rugged NEMA 1, 3R, and 12 enclosures, ensure safe operation in indoor, outdoor, and harsh environments. As a fixed capacitor bank, it enables faster deployment, predictable ROI, and a clear path to improved power quality, helping facilities reduce penalties and optimize energy cost across critical loads.
Product Information
Extended Description

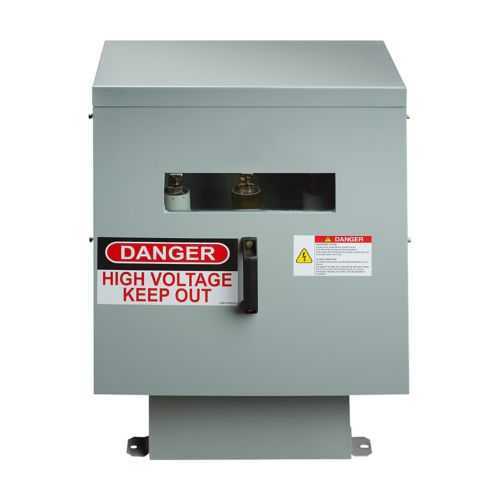

800413MVF3 Eaton: Eaton UNIVAR XV, Fixed Capacitor Banks, 4160V, Three-phase, 800 kVAR, Three-fuse, NEMA 1, 3R, and 12, 14 ga. steel finished with durable baked-on enamel, Viewing window, top and side entry, removable front cover
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
800413MVF3
UPC
786685260693
Product Length/Depth
20.42 in
Product Height
41.94 in
Product Width
26.68 in
Product Weight
319 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified (Canada Only) IEEE Std. 18
Catalog Notes
The wiring enclosure is gasketed to create a weatherproof, dustproof seal. Universal mounting flanges are provided for floor installation. The elimation of knockouts permits indoor/outdoor use.
Type
UNIVAR XV
Fuse type
Three-fuse
Options
Viewing window, top and side entry, removable front cover
Phase
Three-phase
Product Category
Fixed Capacitor Banks
Voltage rating
4160 V
Enclosure
NEMA 1, NEMA 3R, NEMA, NEMA 12
Enclosure material
14 gauge steel finished with durable baked-on enamel
Rating
800 kVAR
Feature → Business Impact → Application: The UNIVAR XV fixed capacitor bank delivers stable reactive power for 4160 V three-phase feeders. This translates to improved power factor, reduced line losses, and steadier voltage profiles across essential loads, especially in large manufacturing lines and heavy equipment. Feature → Business Impact → Application: Three-fuse protection provides reliable fault isolation and enhanced downtime resilience, enabling safer maintenance windows and faster restoration in critical production areas. Feature → Business Impact → Application: Rugged enclosure options (NEMA 1/3R/12) with gasketed seals support indoor/outdoor use and weather exposure, suitable for outdoor substations and protected plant rooms. Feature → Business Impact → Application: The 14 gauge steel, baked-on enamel finish delivers long service life with low maintenance in dusty or humid environments, while the viewing window minimizes unnecessary opening of enclosures during inspections. Feature → Business Impact → Application: Universal mounting flanges and top/side entry with a removable front cover simplify installation and service, enabling flexible retrofits into existing layouts and reducing installation time and wiring changes. Warranty notes reinforce ongoing support, helping maintain lifecycle cost predictability and budgeting accuracy in multi-year capital plans.
