Eaton 800483MVF3 LV Unipak capacitor bank - NEMA 1/3R/12, 4800 V
Part Number: 800483MVF3
Quick Summary
Eaton LV Unipak capacitor bank provides efficient reactive power support for industrial plants and motor-driven systems. Facilities often contend with voltage sags, poor power factor, and higher utility charges when large inductive loads run. With NEMA-rated enclosures (NEMA 1, 3R, and 12) and a rugged UNIVAR XV design, plus three-fuse protection, this solution stands up to challenging environments. This approach supports cost-efficient power factor correction and scalable operations, aligning with maintenance-friendly and reliable performance for expanding production lines.
Product Information
Extended Description

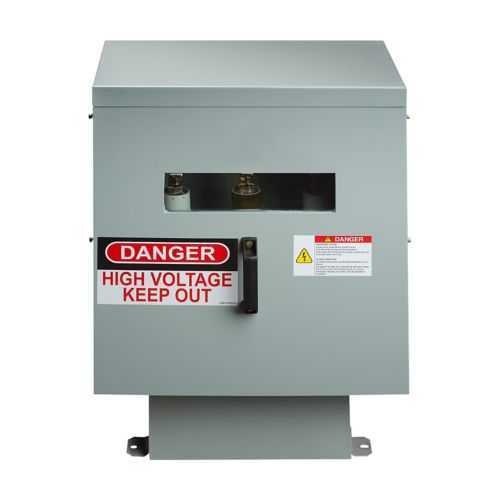

800483MVF3 Eaton: Eaton UNIVAR XV, Fixed Capacitor Banks, 4800V, Three-phase, 800 kVAR, Three-fuse, NEMA 1, 3R, and 12, 14 ga. steel finished with durable baked-on enamel, Viewing window, top and side entry, removable front cover
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
800483MVF3
UPC
786685261775
Product Length/Depth
20.42 in
Product Height
41.94 in
Product Width
26.68 in
Product Weight
319 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Catalog Notes
The wiring enclosure is gasketed to create a weatherproof, dustproof seal. Universal mounting flanges are provided for floor installation. The elimation of knockouts permits indoor/outdoor use.
Type
UNIVAR XV
Fuse type
Three-fuse
Options
Viewing window, top and side entry, removable front cover
Phase
Three-phase
Product Category
Fixed Capacitor Banks
Voltage rating
4800 V
Enclosure
NEMA 1, NEMA 3R, NEMA, NEMA 12
Enclosure material
14 gauge steel finished with durable baked-on enamel
Rating
800 kVAR
Feature UNIVAR XV fixed capacitor bank delivers precise reactive power control, reducing voltage drop on motor drives and improving overall energy efficiency. Benefit The installation translates into measurable efficiency gains and lower utility charges, enabling your facility to sustain higher production without grid penalties. Application Use this solution for large motors, pumps, and HVAC systems in manufacturing and process industries to maintain stable voltage and improved PF. Feature 4800 V rating supports high-voltage distribution with compact footprint; Benefit Allows fewer cascading steps in system design and easier integration with existing switchgear; Application Suitable for utility-scale or facility-wide power factor correction needs. Feature Three-fuse protection and dedicated viewing window plus top/side entry; Benefit Enhanced safety, easier maintenance, and quicker fault isolation; Application Ideal for indoor and outdoor installations with accessible service. Feature Weatherproof enclosure options (NEMA 1/3R/12) and 14 gauge steel with baked-on enamel; Benefit Durable, weather-resistant construction lowers lifecycle costs; Application Outdoor-rated or harsh-environment deployments. Feature Universal mounting flanges for floor installation; Benefit Simplified installation and reduced site prep time; Application Retrofit and new builds alike. Overall, the unit’s robust design supports compliance with industrial electrical standards while delivering predictable, long-term performance for fixed capacitor banks in high-demand environments.
Get a Quick Quote for a Eaton 800483MVF3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 800483MVF3?
Enquire Now
FAQs
Plan for full-load clearance and access around the 20.42 in L, 41.94 in H, and 26.68 in W enclosure. Use the universal mounting flanges for floor installation, ensure correct three-fuse protection, and connect per the UNIVAR XV wiring scheme. Take advantage of the viewing window and removable front cover for periodic inspection without full disassembly.
The 800 kVAR rating provides substantial reactive power support to correct PF and reduce line losses in motors and pumps. In a 4.8 kV, three-phase network, this enables stable voltage profiles, decreased demand charges, and improved equipment efficiency, especially when inductive loads are prominent in the facility.
Yes. The enclosure options include NEMA 1, NEMA 3R, and NEMA 12, and the gasketed wiring enclosure supports weatherproof and dustproof sealing. Indoor/outdoor versatility is further enhanced by the top and side entry options and the durable baked-on enamel finish on 14 gauge steel.
Warranty terms follow Eaton Selling Policy 25-000, offering one year from the date of installation or eighteen months from the date of shipment, whichever occurs first. This supports maintenance planning and protects against manufacturing-related defects during the initial installation and operation phase.
The unit ships with viewing window, top and side entry, and removable front cover for straightforward serviceability. The enclosure’s gasketed design, along with universal mounting flanges, simplifies both retrofit and new-build installations, enabling easier access for inspection, cooling, and component replacement without compromising enclosure integrity.
