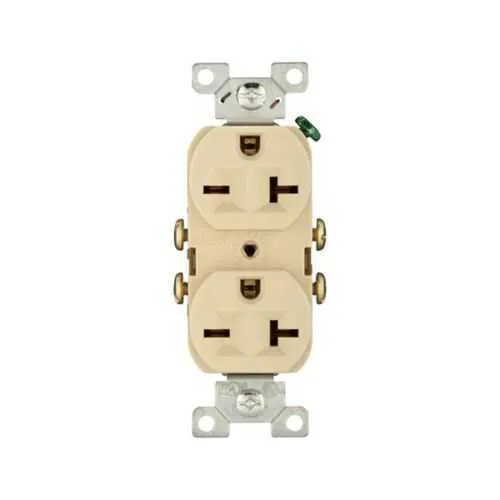

Eaton 815V-BOX Duplex Receptacle - RoHS Compliant
Part Number: 815V-BOX
Quick Summary
The Eaton 815V-BOX duplex receptacle delivers reliable 250V, 20A power connections for commercial installations. For engineers and procurement teams, ensuring a flush-mount, durable, and code-compliant outlet in ED boxes can be a major challenge. This receptacle carries RoHS compliance and cULus listing, plus NOM/Federal Specification 6233 01, giving you confidence in safety and regulatory alignment. The design supports side wiring with auto-grounding, 3-wire configurations, and a two-pole NEMA 6-20R interface, reducing field rework. Manufactured with a nylon face and PVC body, brass contacts, and a 14 lbf-inch torque rating, it delivers reliable performance and long service life for commercial environments. Choosing Eaton 815V-BOX helps standardize hardware across facilities and supports faster maintenance cycles, improving total cost of ownership.
Product Information
Extended Description
815V-BOX Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 250V, Side wire, Ivory, Brass, Nylon, 6-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
815V-BOX
UPC
032664182006
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.82 in
Product Weight
0.01 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
250V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Ivory
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
6-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - 815V-BOX
Eaton Specification Sheet - 815V-BOX
Feature: Commercial-grade 20A 250V receptacle with side wiring and 6-20R NEMA configuration. Business Impact: Enables standard, high-use circuits in commercial spaces, minimizing rework and enabling rapid commissioning. Application: Flush-mounted in ED Boxes for clean, code-compliant installations. Long-tail keywords: commercial-grade duplex receptacle, 20A 250V outlet, NEMA 6-20R, ED Box wiring. Feature: Auto-grounding with screw terminals and a torque rating of 14 lbf-in. Business Impact: Consistent, secure terminations and safer systems reduce maintenance callbacks. Application: Industrial and office environments where vibration or repeated connections occur. Feature: Nylon face and PVC body with brass contact material. Business Impact: Improved wear resistance and corrosion resistance extend life in harsh environments, lowering replacement costs. Application: High-traffic commercial systems and OEM integrations. Feature: Flush mounting and #14-10 AWG compatibility. Business Impact: Simplifies installation in tight enclosures and ensures reliable power delivery for branch circuits. Application: New construction and retrofit projects using ED Box packaging. Feature: RoHS compliance and cULus listing. Business Impact: Meets regulatory requirements and simplifies compliance audits. Application: Regulated facilities and projects with strict sustainability and safety standards.
Get a Quick Quote for a Eaton 815V-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 815V-BOX?
Enquire Now
FAQs
To install the 815V-BOX, prepare the ED Box, connect wires to the side terminals using #14-10 AWG, tighten to the specified torque of 14 lbf-in, and ensure the auto-grounding feature is engaged. Secure the receptacle so the face sits flush with the box opening, then verify continuity and insulation resistance. This configuration minimizes field errors and speeds up commissioning in commercial spaces.
The 815V-BOX is rated for 20A at 250V, uses a 3-wire side-wire connection, and follows the 6-20R NEMA configuration. It features brass contact material, nylon face, and PVC body, with an operating torque of 14 lbf-in. These specs support reliable power delivery for commercial circuits while meeting safety standards.
Yes. The 815V-BOX is designed for commercial-grade use, with flush-mount installation in ED Boxes, side-wire wiring for easy field connections, and a robust construction that withstands daily use in offices and light industrial settings. Its RoHS compliance and cULus listing further support regulatory alignment in regulated facilities.
The receptacle carries RoHS compliance and cULus listing, along with NOM Federal Specification Classification 6233 01. These certifications indicate compliance with environmental, safety, and regulatory requirements, helping simplify audits and procurement for regulated projects.
The durable nylon and PVC construction with brass contacts reduces wear, corrosion, and failure rates, lowering replacement and maintenance costs. Side-wire terminals enable faster installations, and the compatibility with ED Boxes supports standardized hardware across facilities, contributing to lower total cost of ownership and faster maintenance cycles.
