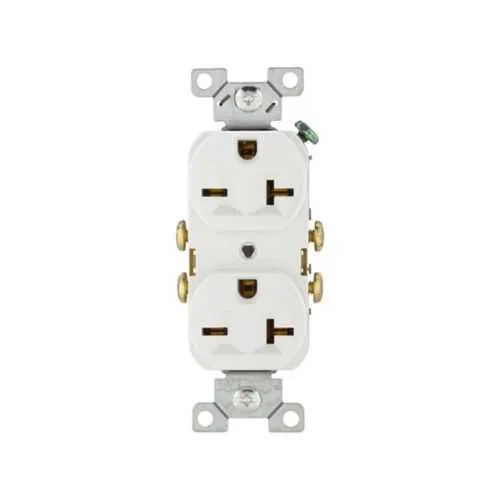

Eaton 815W-BOX Receptacle - Commercial Grade, cULus Listed
Part Number: 815W-BOX
Quick Summary
Eaton 815W-BOX duplex receptacle is a commercial-grade electrical outlet designed for reliable, flush-mount power in busy facilities. Installers often grapple with time-consuming wiring, awkward fitment in standard boxes, and the need for durable components that survive constant use. This model is RoHS compliant, cULus listed, and NOM 6233 01 classified, helping you meet regulatory requirements across building codes. Built for commercial applications, the 815W-BOX features a side-wire connection, auto-grounding, and a sturdy nylon face with a PVC body. By choosing this receptacle, you gain easy wiring with #14-10 AWG, secure terminations, and a design that minimizes maintenance costs in high-traffic environments. The result is dependable power delivery that supports modern equipment while simplifying procurement and installation.
Product Information
Extended Description
815W-BOX Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 250V, Side wire, White, Brass, Nylon, 6-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
815W-BOX
UPC
032664654626
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.82 in
Product Weight
0.001 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
250V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
6-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - 815W-BOX
Eaton Specification Sheet - 815W-BOX
Feature: 20A at 250V with a NEMA 6-20R configuration. Business Impact: Supports higher power loads and reduces voltage drop in commercial circuits, enabling reliable operation of equipment like advanced computing, displays, and small motor loads. Application: Ideal for offices, retail spaces, and educational facilities that require robust 250V outlets. Feature: Side-wire wiring method for #14-10 AWG conductors with a 14 lbf-in torque rating. Business Impact: Speeds up installation, ensures a secure termination, and minimizes rework due to loose connections. Application: New builds and retrofits where fast field wiring is critical. Feature: Flush mounting in a durable ED Box with a white nylon face and PVC body. Business Impact: Provides a clean, professional look and predictable box alignment, reducing concealment and rework. Application: Commercial interiors requiring precise fit and easy replacement. Feature: Auto-grounding with brass contacts and corrosion-resistant nylon face. Business Impact: Improves safety and longevity in high-traffic environments, lowering maintenance costs. Application: High-use spaces like lobbies, classrooms, and hospital corridors. Feature: RoHS compliant, cULus listed, and NOM 6233 01 classified. Business Impact: Ensures regulatory compliance and safer supply chain, reducing risk during audits. Application: Projects with strict environmental and safety standards in retail, healthcare, and corporate facilities.
Get a Quick Quote for a Eaton 815W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 815W-BOX?
Enquire Now
FAQs
The 815W-BOX supports flush-mount installation in an ED Box with side-wire terminations for #14-10 AWG conductors and a screw connection. The torque rating is 14 lbf-in, ensuring secure, code-compliant terminations. This design simplifies retrofit projects and aligns with standard commercial electrical boxes for quick, repeatable installations.
Yes. The receptacle is RoHS compliant, cULus Listed, and NOM 6233 01 classified, making it suitable for commercial wiring across a variety of jurisdictions. It features a 20A, 250V rating with a NEMA 6-20R configuration and side-wire terms compatible with #14-10 AWG, supporting common building circuits.
Reliability comes from brass contact materials, a nylon face, PVC body, and auto-grounding features that endure frequent use. The flush mounting reduces wear on the face and edges, while the solid construction resists impact and corrosion. Together these factors minimize maintenance cycles and support continuous operation in busy spaces.
Best suited for offices, retail environments, educational facilities, and healthcare settings that require 250V circuits and 20A demand. With NEMA 6-20R configuration and side-wire wiring, it supports high-load receptacle needs while maintaining a clean, professional look in commercial interiors.
Plan for periodic inspection of terminations to ensure torque remains within 14 lbf-in and that side-wire connections remain secure. The RoHS and NOM 6233 01 certifications support regulatory audits, while durable brass contacts and nylon/PVC construction reduce corrosion-related downtime and replacement costs in long-term installations.
