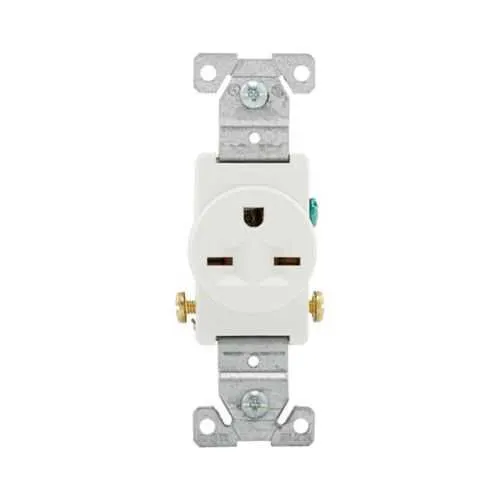

Eaton 816W-BOX Receptacle - Commercial Grade, cULus Listed
Part Number: 816W-BOX
Quick Summary
The Eaton 816W-BOX is a commercial-grade single receptacle designed for durable commercial wiring installations. Engineers often struggle with reliable grounding, easy termination, and long-term durability in flush-mount outlets. It carries cULus listing and NOM certification, aligned with Federal Specification Classification 6233 01, helping meet code requirements across North America. With side-wire #14-10 AWG termination, 15A at 250V, and auto-grounding, the device delivers safer, faster installation and consistent performance. This receptacle's nylon body and brass contacts resist corrosion in commercial environments, reducing maintenance costs and downtime.
Product Information
Extended Description
816W-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 250V, Side wire, White, Brass, Nylon, 6-15R, Single, Screw, Nylon, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
816W-BOX
UPC
032664627361
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
0.82 in
Product Weight
0.15 lb
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
250V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
Nylon
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
6-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 816W-BOX
Eaton Specification Sheet - 816W-BOX
Feature: Auto-grounding enhances safety by ensuring a reliable ground path without additional field work. Business Impact: Reduces risk of ground faults, improves compliance with grounding requirements, and lowers service calls. Application: Ideal for high-traffic commercial outlets in offices, retail, and institutional settings. Feature: Side-wire termination for #14-10 AWG conductors enables quick, secure connections. Business Impact: Speeds up installation, minimizes termination errors, and lowers labor costs. Application: New construction and retrofit projects where large gauge wiring is used. Feature: NEMA configuration 6-15R two-pole, 250V rating supports standard commercial equipment. Business Impact: Broad compatibility with 230V systems and compatible gear, reducing the need for adapters. Application: Commercial kitchens, labs, and data/telecom rooms. Feature: Nylon body with brass contacts delivers durability and corrosion resistance. Business Impact: Extends service life, reduces maintenance cycles, and preserves grounding integrity. Application: Flush-mount receptacles in busy environments such as corridors and customer areas. Feature: ED Box packaging and 14 lbf-in torque rating ensure proper installation and secure mounting. Business Impact: Lower rework rates, consistent torque, and reliable engagement over time. Application: Field installations in commercial buildings requiring dependable mounting and serviceability.
Get a Quick Quote for a Eaton 816W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 816W-BOX?
Enquire Now
FAQs
To install the 816W-BOX, first power down the circuit and remove the mounting face. Prepare #14-10 AWG conductors, strip to the appropriate length, and secure them to the side-wire terminals. Tighten to the specified torque of 14 lbf-in to ensure solid electrical contact. Mount the receptacle flush in the ED Box, then verify auto-grounding engages properly and the face sits evenly for a clean, code-compliant finish.
The 816W-BOX is rated for 15A at 250V and uses a 6-15R NEMA configuration, which matches common 230/240V commercial equipment. With brass contact material and a nylon body, it provides reliable current handling, durability, and corrosion resistance, reducing the risk of voltage drop and hot spots in everyday commercial circuits.
Yes. The nylon body and brass contacts offer robust durability and corrosion resistance, while the flush-mount design minimizes snag hazards and wear in busy spaces. Auto-grounding and secure side-wire termination further enhance safety and reliability in offices, retail, hospitality, and institutional environments.
The receptacle carries cULus listing and NOM certification, with Federal Specification Classification 6233 01. These certifications confirm compliance with North American safety and performance standards, supporting code conformity, easing approval in commercial projects, and reducing compliance risk during inspections.
The combination of a durable nylon body, brass contacts, and auto-grounding reduces wear and grounding faults, leading to fewer field failures and maintenance visits. Side-wire terminations speed installation, lowering labor costs, while the sturdy construction extends service life in high-traffic environments, delivering a favorable total cost of ownership for facilities teams.
