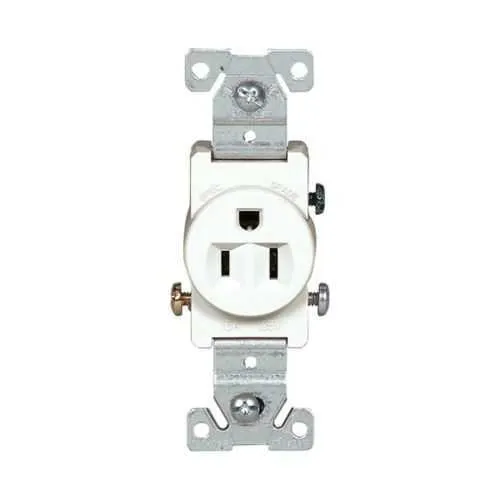

Eaton 817-2W-BU Receptacle - cULus Listed 6233
Part Number: 817-2W-BU
Quick Summary
The Eaton 817-2W-BU receptacle delivers a commercial-grade 15A 125V single power outlet for general-purpose electrical installations. Users often wrestle with wiring compatibility, grounding reliability, and flush-mount fit, which can slow installs and invite inspection issues. This unit carries cULus listing, NOM certification, and Federal Specification 6233 01, ensuring regulatory alignment across many facilities. Designed for commercial receptacle applications with auto-grounding and a durable nylon body, it supports quick, code-compliant installations. Its white PVC face and brass contacts deliver long-term reliability while enabling straightforward procurement across bulk projects.
Product Information
Extended Description
817-2W-BU Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, White, Brass, Nylon, 5-15R, Single, Screw, PVC, Bulk
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
817-2W-BU
UPC
032664662591
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.83 in
Product Weight
0.14 lb
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Bulk
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 817-2W-BU
Eaton Specification Sheet - 817-2W-BU
Feature: The 15A, 125V rating pairs with a standard 5-15R single receptacle for familiar, universal power delivery in modern commercial spaces. Business Impact: This alignment reduces sourcing complexity and minimizes compatibility issues across building systems, lowering project risk and accelerating commissioning. Application: Ideal for offices, retail counters, healthcare reception areas, and light-industrial spaces where reliable outlets support uninterrupted operations. Paragraph 2: Feature: Side wire wiring method supporting #14-10 AWG with a 3-wire configuration delivers straightforward, secure terminations. Business Impact: It streamlines field wiring, improves termination consistency, and supports faster, code-compliant installations with fewer callbacks. Application: Suitable for new construction and retrofit projects in commercial environments, including wall plates and multi-outlet strips. Paragraph 3: Feature: Auto-grounding and brass contact design provide a low-resistance ground path and durable electrical contact under frequent use. Business Impact: Improves safety and electrical continuity while reducing maintenance needs and likelihood of ground-related faults. Application: High-traffic areas like lobbies, break rooms, and service zones where quick, safe power access is critical throughout the day. Paragraph 4: Feature: Nylon face with PVC body delivers rugged durability and resistance to impact, moisture, and chemical exposure in demanding environments. Business Impact: Reduces replacement cycles and warranty claims, supporting longer service life in commercial installations. Application: Harsh or busy environments such as warehouses, manufacturing floors, and repair stations where tough components matter. Paragraph 5: Feature: Flush mounting and bulk packaging align with standard construction practices and procurement workflows. Business Impact: Maintains clean aesthetics, minimizes on-site waste, and lowers total project cost through efficient ordering of standardized parts. Application: Commercial fit-outs, facilities upgrades, and large-scale renovations requiring consistent product parity and predictable lead times.
Get a Quick Quote for a Eaton 817-2W-BU
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 817-2W-BU?
Enquire Now
FAQs
Use the side wiring method with #14-10 AWG conductors in a 3-wire configuration (hot, neutral, ground). Pair this with standard US wall boxes for flush mounting and NEMA 5-15R receptacle spacing. This approach simplifies field terminations and ensures code-compliant, reliable connections in commercial spaces.
Brass contacts provide low resistance and durable, repeatable connections, while auto-grounding creates a direct ground path without extra wiring steps. This combination reduces contact wear, minimizes ground faults, and speeds up installation, making it well-suited for high-traffic commercial environments where reliability matters.
Yes. With a 15A, 125V rating and a NEMA 5-15R single receptacle configuration, it supports common office and retail loads. The flush-mount design, durable Nylon/PVC construction, and bulk packaging align with project timelines and procurement needs typical of commercial fit-outs.
The unit is cULus Listed, NOM certified, and references Federal Specification 6233 01. These certifications help ensure regulatory compliance across North American facilities, simplify inspections, and support use in code-driven projects without additional part substitutions.
Bulk packaging reduces procurement time and standardizes parts across multiple outlets, while the durable nylon/pvc construction lowers maintenance and replacement cycles. The combination of easy side wiring, auto-grounding, and a robust build translates to faster field installs and lower lifecycle costs for large-scale commercial deployments.
