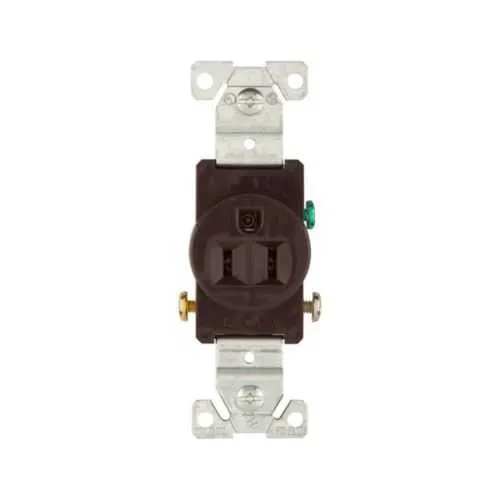

Eaton 817B-BOX Single Receptacle - cULus Listed 6233
Part Number: 817B-BOX
Quick Summary
The Eaton 817B-BOX Single Receptacle delivers reliable power delivery in flush-mount commercial installations. Engineers often struggle with cramped enclosures, inconsistent wiring, and regulatory gaps that slow projects. It carries cULus listing with NOM, and Federal Specification 6233 01, providing regulatory confidence and easy compliance across markets. Designed for side-wire connections on #14-10 AWG copper conductors and a 15A, 125V rating, it reduces field errors and rework. With a nylon face and brass contacts plus auto-grounding, this receptacle offers durability, safer ground paths, and faster installation—helping you stay on schedule and within budget.
Product Information
Extended Description
817B-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Brown, Brass, Nylon, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
817B-BOX
UPC
032664182303
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.83 in
Product Weight
0.161 lb
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Brown
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 817B-BOX
Eaton Specification Sheet - 817B-BOX
Feature: 15A at 125V with NEMA 5-15R configuration. Business Impact: Supports common commercial loads with reliable performance and minimal voltage drop in everyday outlets. Application: Service outlets in control panels or wall enclosures where standard commercial receptacles are required. Feature: Side-wire wiring for #14-10 AWG. Business Impact: Simplifies field wiring, reduces install time, and lowers labor costs with a secure, durable connection. Application: New installation projects and retrofit work in busy electrical rooms. Feature: Flush mounting in an ED Box. Business Impact: Maximizes space, reduces protrusions, and improves enclosure aesthetics while meeting code requirements. Application: Commercial buildings with tight panel footprints. Feature: Auto-grounding and brass contact design. Business Impact: Improves safety and reduces grounding faults, leading to fewer field service calls. Application: Environments subject to vibration or frequent plug/unplug cycles. Feature: Nylon face/body and 14 lbf-inch torque rating. Business Impact: Delivers rugged, long-lasting performance with predictable torque for consistent terminations. Application: High-use commercial settings and equipment racks. Feature: Packaging as an ED Box receptacle. Business Impact: Streamlines procurement and installation with a standard, easy-to-identify component. Application: New electrical closets and panel assemblies requiring standardized parts.
Get a Quick Quote for a Eaton 817B-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 817B-BOX?
Enquire Now
FAQs
The 817B-BOX uses side-wire wiring for #14-10 AWG conductors and employs a screw connection. With a torque rating of 14 lbf-in, it ensures a secure, repeatable termination that resists loosening due to vibration in commercial panels.
Yes. It is designed for flush mounting in ED Boxes, featuring compact dimensions (1.31 in depth, 3.28 in height, 0.83 in width) to maximize space in control panels and wall enclosures while staying code-compliant.
The 817B-BOX is cULus Listed, complies with NOM, and references Federal Specification Classification 6233 01, ensuring regulatory compatibility across North American markets and facilitating approval for commercial installations.
This receptacle is a NEMA 5-15R, two-pole, single-receptacle design suited for 125V circuits. It uses a straight blade, standard configuration with brass contacts for dependable, room-standard power delivery.
Key benefits include auto-grounding for safer ground paths, a durable nylon face and brass contacts that resist wear, and straightforward wiring with side-wire terminals. Together, these reduce install time, service calls, and rework while improving long-term reliability in control panels and service outlets.
