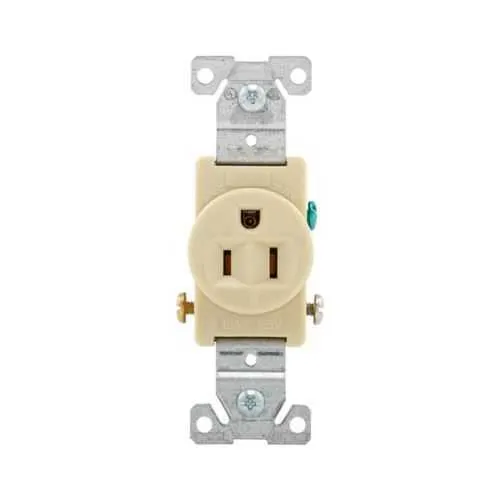

Eaton 817V-BOX Receptacle - 15A/125V, cULus Listed
Part Number: 817V-BOX
Quick Summary
The Eaton 817V-BOX receptacle delivers reliable, flush-mount power for commercial spaces. Many installers struggle with side-wire terminations and compatibility in retrofit projects. It carries cULus listing, NOM compliance, and Federal Specification Classification 6233-01, ensuring safety and interchangeability. Designed for commercial-grade electrical installations, it supports standard NEMA 5-15R configurations with auto-grounding, reducing field calls and downtime, while offering a compact Nylon face and PVC ED Box for durable, easy installations. Facility managers can reduce replacement cycles, simplify compliance audits, and future-proof their electrical infrastructure with a consistent, readily available part. Moreover, the Eaton 817V-BOX supports standard commercial procurement channels, enabling faster stocking and consistent performance across sites.
Product Information
Extended Description
817V-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Ivory, Brass, Nylon, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
817V-BOX
UPC
032664182402
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.83 in
Product Weight
0.15 lb
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Ivory
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 817V-BOX
Eaton Specification Sheet - 817V-BOX
The 817V-BOX uses a side-wire wiring method compatible with #14-10 AWG conductors, delivering secure, torque-rated terminations with 14 lbf-in torque to minimize loosening over time. This straightforward installation reduces commissioning time and offers predictable performance in busy service environments. Business impact: faster installs and consistent electrical integrity translate to lower labor costs and fewer callbacks on job sites. Application: ideal for commercial outlets in offices, retail, and institutional facilities requiring dependable 125V power with a 15A rating. The brass contact design provides durable conduction, while the nylon face and PVC ED Box resist impact and exposure in HVAC closets, corridors, and data rooms.
Get a Quick Quote for a Eaton 817V-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 817V-BOX?
Enquire Now
FAQs
Installers can terminate conductors #14-10 AWG using the side-wire clamp, tightening to 14 lbf-in torque. Verify polarity, tighten screws, and mount flush in an ED Box. This reduces wire strain and ensures a solid mechanical and electrical connection for new builds or retrofit projects.
The unit is cULus Listed, NOM compliant, and meets Federal Specification Classification 6233-01. These certifications indicate electrical safety, reliability in commercial environments, and compliance with common standards used in building projects, helping you pass inspections without field rewiring.
Yes. It is a two-pole, single receptacle configured as 5-15R with a 15A, 125V rating, designed for flush mounting in nylon face and PVC ED Box assemblies, making it compatible with standard commercial electrical layouts.
The receptacle uses brass contacts for durable conduction, a nylon face, and a PVC body, providing chemical resistance and impact durability. The design supports auto-grounding and is rated for commercial use, reducing maintenance in high-traffic areas.
With a compact ED Box, compliant wiring, and reliable performance, this receptacle reduces installation time, minimizes field service calls, and ensures code-compliant power delivery for 125V circuits in commercial facilities, delivering lower total cost of ownership over the product life cycle.
