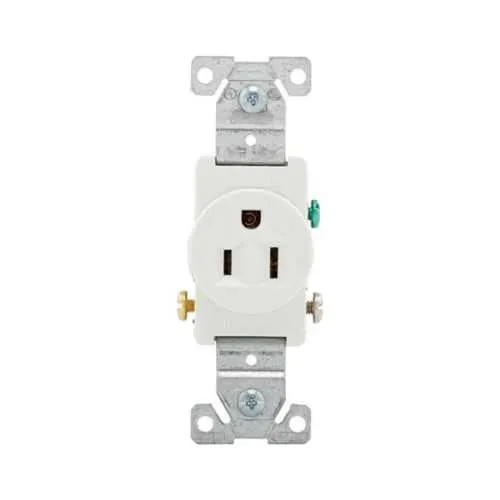

Eaton 817W-BOX Receptacle - 15A 125V, cULus Listed
Part Number: 817W-BOX
Quick Summary
The Eaton 817W-BOX single receptacle provides reliable 15A, 125V power for commercial spaces. In busy installations, miswiring, non-compliance, and grounding gaps can delay projects and compromise safety. This unit carries cULus Listed, NOM, and Federal Specification 6233-01 certifications, ensuring regulatory compliance and performance across demanding environments. Its compact, flush-mount design fits standard ED boxes, while side wiring supports quick, secure terminations for #14-10 AWG conductors. The nylon face and brass contacts offer durability and corrosion resistance in high-traffic areas, helping reduce maintenance costs. Used in offices, retail, and hospitality, it delivers predictable operation and dependable power delivery where it matters most.
Product Information
Extended Description
817W-BOX Eaton: Eaton commercial specification grade single receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, White, Brass, Nylon, 5-15R, Single, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade single receptacle
Catalog Number
817W-BOX
UPC
032664182501
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.83 in
Product Weight
0.161 lb
Certifications
cULus Listed NOM Federal Specification Classification 6233 01
Device type
Receptacle
Type
Single receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Single
Residential straight blade receptacles
Eaton Specification Sheet - 817W-BOX
Eaton Specification Sheet - 817W-BOX
Feature: 15A, 125V NEMA 5-15R design with brass contacts and auto-grounding. Business Impact: consistent power delivery with reliable grounding reduces field failures and service calls. Application: ideal for commercial offices and hospitality outlets needing dependable outlets. Feature: Side wire wiring supports #14-10 AWG conductors. Business Impact: faster terminations and cleaner boxes lower installation time and labor costs. Application: new builds and retrofit projects in busy environments. Feature: Flush mount in a PVC ED Box. Business Impact: neat, code-compliant installations with better moisture resistance in wall cavities. Application: wall outlets in corridors, lobbies, and work areas. Feature: Nylon face with brass contacts and 3-wire, two-pole configuration. Business Impact: durable, corrosion-resistant components extend service life and reduce replacement cycles. Application: high-usage commercial spaces requiring long-term reliability. Feature: 14 lbf-in torque rating and screw connections. Business Impact: consistent terminal tightness minimizes loose connections and callbacks. Application: standard electrical outlets installed by multiple teams or contractors.
Get a Quick Quote for a Eaton 817W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 817W-BOX?
Enquire Now
FAQs
To install the 817W-BOX, prepare the ED box and feed #14-10 AWG conductors through the box. Terminate conductors to the brass screws per the device markings, secure the ground, and tighten to the manufacturer’s torque specification of 14 lbf-in. Mount the receptacle flush with the wall and secure the device screws. This method provides a reliable, code-compliant finish with straightforward field wiring.
The 817W-BOX is a 15A, 125V NEMA 5-15R single receptacle featuring brass contact material and a nylon face. It supports side wiring for #14-10 AWG conductors and uses a PVC body in a flush ED box packaging. The device is designed for commercial applications with auto-grounding for enhanced safety.
Yes. The 817W-BOX is specifically intended for commercial use with a 15A, 125V rating and NEMA 5-15R configuration. Its durable nylon face, brass contacts, and auto-grounding make it well-suited for offices, retail, hospitality, and other high-traffic areas where reliable, code-compliant power receptacles are required.
The device carries cULus Listed, NOM, and Federal Specification Classification 6233 01 certifications. These attest to safety, reliability, and regulatory compliance for commercial environments, helping you pass inspections and maintain safety standards across multi-site installations without customization delays.
Durable nylon construction and brass contacts resist corrosion, reducing replacement and service calls. Auto-grounding improves safety performance, while side-wire termination simplifies installation, speeding projects and lowering labor costs. Over the lifecycle, these features translate to lower maintenance, fewer outages, and a quicker return on investment for commercial deployments.
