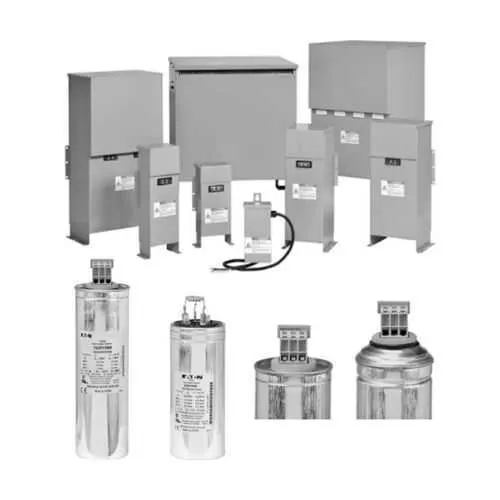

Eaton 825243MVF3 LV Unipak capacitor bank - 2400 V, 825 kVAR
Part Number: 825243MVF3
Quick Summary
The Eaton LV Unipak capacitor bank improves power factor for three-phase industrial systems. Maintenance and installation challenges often slow commissioning and reduce uptime in demanding environments. The unit uses NEMA-rated enclosures (NEMA 1, 3R, 12) for indoor or outdoor service, backed by a rugged 14-gauge steel shell. Rated at 2400 V and 825 kVAR with a three-fuse design, it provides reliable reactive power support and fault isolation. With a compact footprint and serviceable features, this fixed capacitor bank helps facilities cut energy waste and simplify expansion of heavy industry power systems, supporting efficient, scalable power management for fixed-capacitor-bank deployments.
Product Information
Extended Description
825243MVF3 Eaton: UNIVAR XV, Fixed Capacitor Banks, 2400V, Three-phase, 825 kVAR, Three-fuse, NEMA 1, 3R, and 12, 14 ga. steel finished with durable baked-on enamel, Viewing window, top and side entry, removable front cover
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
825243MVF3
UPC
786685239811
Product Length/Depth
20.42 in
Product Height
41.94 in
Product Width
26.68 in
Product Weight
331 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Catalog Notes
The wiring enclosure is gasketed to create a weatherproof, dustproof seal. Universal mounting flanges are provided for floor installation. The elimation of knockouts permits indoor/outdoor use.
Type
UNIVAR XV
Fuse type
Three-fuse
Options
Viewing window, top and side entry, removable front cover
Phase
Three-phase
Product Category
Fixed Capacitor Banks
Voltage rating
2400 V
Enclosure
NEMA 1, NEMA 3R, NEMA, NEMA 12
Enclosure material
14 gauge steel finished with durable baked-on enamel
Rating
825 kVAR
Durable, gasketed enclosure provides weatherproof and dustproof protection, enabling reliable outdoor and harsh-environment operation. This directly reduces maintenance cycles and downtime, powering continuous production in demanding facilities. The three-fuse design delivers selective fault isolation, improving system reliability, reducing cascading faults, and helping facilities meet uptime targets in critical manufacturing lines. A 14-gauge steel cabinet finished with baked-on enamel resists corrosion, extending service life in challenging environments and lowering total cost of ownership. The ability to top- and side-entry wiring and a removable front cover simplifies installation, retrofits, and service, cutting labor time during commissioning and routine maintenance. A viewing window supports quick visual verification of capacitor status, minimizing inspection time and enabling proactive maintenance planning. With a 2400 V, 825 kVAR rating, the LV Unipak is ideal for scalable power factor correction in large, three-phase systems while remaining compatible with standard fixed-capacitor-bank practices in data centers, process plants, and heavy industry.
Get a Quick Quote for a Eaton 825243MVF3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 825243MVF3?
Enquire Now
FAQs
Yes. The unit is specified for 2400 V three-phase operation and is designed to integrate with standard fixed capacitor-bank practices used in 2400 V distribution networks, including compatible connection points for top or side wiring entry and a removable front cover for service access.
The capacitor bank provides 825 kVAR reactive power at a 2400 V rating, using a three-fuse configuration for fault isolation. This combination improves power factor, reduces line losses, and supports voltage stability across large, variable-load environments such as manufacturing lines and data centers.
Yes. The enclosure is designed with gasketed sealing and NEMA-rated protection (NEMA 1, 3R, 12), enabling indoor or outdoor use. The durable 14-gauge steel shell with baked-on enamel further enhances weather resistance and long-term reliability in outdoor installations.
The product features NEMA-rated enclosures for protection against dust and weather, supporting reliability in both indoor and outdoor settings. The design and construction align with Eaton’s published specifications, including viewing window, enclosure access, and three-fuse protection to improve maintainability and fault containment.
The 825243MVF3 supports predictable energy savings through improved PF, reducing utility costs in high-load facilities. Easy maintenance is enabled by features such as a viewing window and removable front cover, alongside a top/side entry design that simplifies wiring. With a weight of 331 lb and floor-mounting capability, installation and future expansion are straightforward, contributing to a favorable total cost of ownership over the product life cycle.
