Eaton 82911685NPC Souriau Power Solution PCB Contact - RoHS
Part Number: 82911685NPC
Quick Summary
Eaton Souriau 8291 series power solution PCB contact provides secure, high-current PC board interconnects. Engineers often face mating misalignment, plating wear, and space constraints in compact control panels. This part is RoHS and REACH compliant, aligning with global manufacturing standards and sustainability goals. Designed with a nickel-plated finish and precise machined tolerances, it supports up to AWG #8 conductors and comes in bulk packaging for straightforward sourcing. When integrated with other Souriau 8291 components, it delivers reliable power delivery, reduces maintenance intervals, and supports scalable panel designs in harsh industrial environments.
Product Information
Extended Description

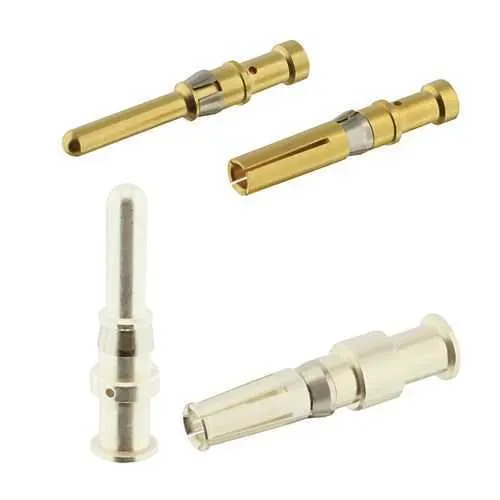

82911685NPC Eaton: Male machined PCB contact, size #8, Nickel plating; 82911685NPC
Product Name
Eaton Souriau 8291 series power solution up to AWG #8 core
Catalog Number
82911685NPC
Product Length/Depth
25.5 mm
Product Height
6.3 mm
Product Width
6.3 mm
Product Diameter
6.3 mm
Product Weight
4.4 g
Environmental conditions
REACH RoHS
Contact gender
Pin (Male)
Contact plating
Other
Contact size
8 AWG
Contact type
PCB
Packaging type
Bulk
Manufacturing process
Machined
Machined nickel plating and a male PCB contact design deliver durable, low-resistance power connections for boards using up to AWG #8 conductors. This construction reduces contact wear and improves mating reliability in repeated connect/disconnect cycles. The precise nickel finish minimizes fretting corrosion and maintains stable contact resistance across service life. It is ideal for compact board-level power interconnects in automation controllers and drive systems. Bulk packaging from the Souriau 8291 family enables straightforward stocking, faster kit assembly, and lowered total cost of ownership by standardizing power interconnects across devices. The combination fits standard Souriau mating interfaces, speeding assembly in control panels, motor drives, and distributed power architectures where space is at a premium. Environmental robustness comes from RoHS and REACH compliance with nickel plating, supporting global regulatory requirements while ensuring long-term reliability in harsh environments. The compact geometry, 25.5 mm length and 6.3 mm square footprint, enables higher panel density, easier routing, and lighter overall assembly, translating to faster production cycles. The 4.4 g weight further assists in minimizing enclosure weight in portable or space-constrained installations. A male pin PCB contact with 8 AWG support and a machined manufacturing process ensures repeatable electrical performance across batches and simplifies field maintenance. It pairs with Souriau 8291 series connectors for scalable, modular power architectures in automation systems.
Get a Quick Quote for a Eaton 82911685NPC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 82911685NPC?
Enquire Now
FAQs
82911685NPC is part of the Eaton Souriau 8291 series and is designed to mate with matching Souriau 8291 power solution connectors. It supports up to AWG #8 conductors and uses a male PCB contact for straightforward board-level interconnections.
Yes. The 82911685NPC features RoHS and REACH compliance with a nickel-plated contact finish, ensuring regulatory alignment across global manufacturing and environmental standards.
The device features a length of 25.5 mm, and a width, height, and diameter of 6.3 mm, with an approximate weight of 4.4 g. It is designed as a compact PCB contact for dense panel layouts.
Use cases include control cabinets, motor drives, and distributed power boards in industrial automation where reliable high-current interconnects are needed in a compact footprint.
Plan for bulk-packaged components that integrate with Souriau 8291 mating interfaces. Ensure proper alignment with the PCB and mating connector, respect RoHS/REACH requirements, and select compatible assembly methods for nickel-plated contacts to minimize wear and ensure repeatable performance.
