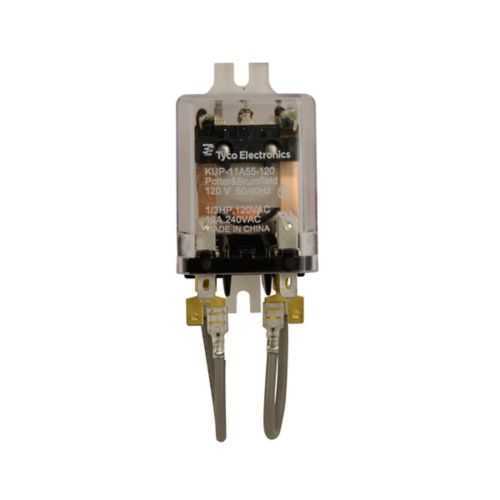

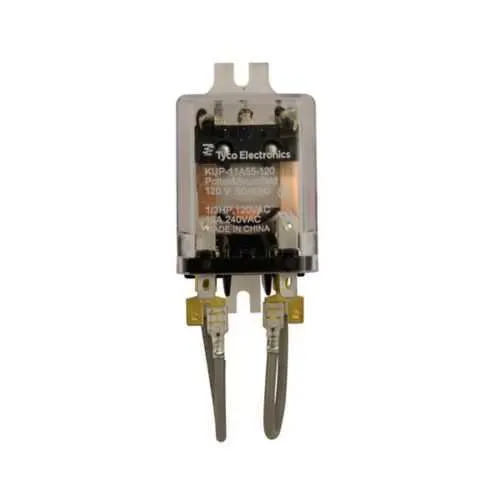

Eaton 8293A06G01 DS/DSII Relay Module - UL Listed
Part Number: 8293A06G01
Quick Summary
The Eaton 8293A06G01 DS/DSII power relay module provides compact, universal-frame control for industrial automation applications. Engineers often struggle to find a relay that supports both AC and DC control while fitting a variety of panel layouts. UL Listed certification underpins safety and regulatory compliance, while its universal frame and compatibility with DSII/DS series simplify installation across machines. The 0.25 lb weight and small footprint help reduce enclosure space, and a 1-year warranty adds vendor reliability for maintenance planning. This combination delivers faster builds, lower stocking costs, and improved uptime in control panels and machine controls.
Product Information
Extended Description
8293A06G01 Eaton: Eaton DS/DSII power relay module, 120 Vac/dc, Universal frame
Product Name
Eaton DS/DSII power relay module
Catalog Number
8293A06G01
UPC
786670270003
Product Length/Depth
4.2 in
Product Height
2.5 in
Product Width
3 in
Product Weight
0.25 lb
Warranty
1 year
Certifications
UL Listed
Frame
Universal
Accessories
Power relay module
Series
DSII DS
Universal-frame design enables flexible mounting across panel styles, reducing SKU proliferation and stocking costs. This translates into faster configuration during builds and easier retrofits in existing machines. Ideal for control panels, machine cabinets, and OEM equipment that demand adaptable mounting footprints. Dual voltage operation (120 VAC/DC) simplifies wiring schemes and minimizes the need for separate coil relays. The business impact is lower wiring errors and faster changeovers in evolving control circuits, particularly valuable in OEM equipment and machine tools that must support both legacy and modern control electronics. Compact footprint and lightweight construction save panel space and reduce enclosure costs. Reduced size improves airflow and simplifies enclosure design, leading to lower cooling requirements for densely packed panels, with applications in compact control panels, motor starters, and distributed I/O assemblies. UL Listed certification provides trusted safety compliance, helping you meet installation standards and regulatory audits. The 1-year warranty adds assurance for maintenance planning and total cost of ownership, reducing risk for system integrators and field teams during deployments. DSII DS-series compatibility ensures you can mix modules within established families, easing procurement and spare-part management. Quick-field replacement and consistent pinouts reduce downtimes during outages or firmware updates, supporting longer equipment lifecycles in plant environments.
Get a Quick Quote for a Eaton 8293A06G01
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8293A06G01?
Enquire Now
FAQs
Begin by mounting the universal-frame relay in the available panel opening, secure with mounting hardware, and connect the coil to the 120 VAC or 120 VDC supply as appropriate. Wire the common and switching contacts per the DSII/DS series guidelines, tighten terminal screws to specification, and verify clearances and isolation. This approach minimizes wiring errors and supports rapid field replacements.
The module supports 120 VAC/DC operation with a compact footprint of 4.2 inches in length, 3 inches in width, and 2.5 inches in height, weighing 0.25 pounds. It carries UL Listed safety certification and comes with a 1-year warranty, aligning with typical industrial control panel requirements and DSII/DS series compatibility.
Yes. The 8293A06G01 is designed for universal-frame use within the DSII and DS series family, enabling seamless integration with existing DSII components. This compatibility reduces procurement complexity, simplifies spare-part management, and supports consistent pinouts and mounting practices across the family.
The module is UL Listed, providing recognized safety certification for electrical protection and control devices. This certification supports regulatory compliance in many industrial environments, reduces commissioning risk, and aids in passing safety audits. The combination with a universal frame also simplifies installation in diverse panel configurations.
The compact, lightweight design and universal-frame mounting reduce panel space and installation time, while DSII/DS series compatibility lowers spare parts inventory. The included 1-year warranty adds assurance against unexpected failures, contributing to lower total cost of ownership through improved uptime and faster field service response.
