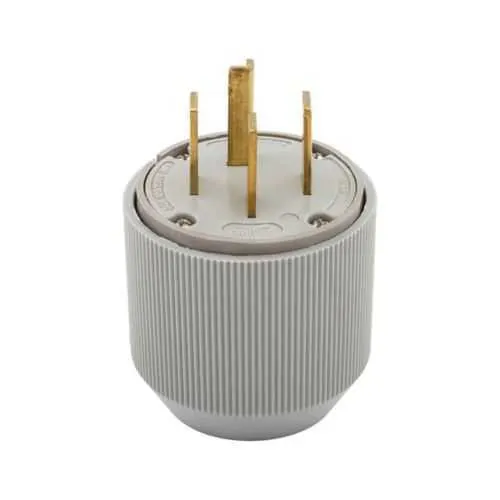

Eaton 8332N Plug - UL 6233 01
Part Number: 8332N
Quick Summary
The Eaton 8332N Plug is a rugged industrial power connector designed for reliable, high-current service in demanding environments. For maintenance teams, miswired connections and slow terminations drive downtime; this plug features secure back-wire and screw terminations to speed installs. UL certification and Federal Specification 6233 01 support safety compliance, while 120/208 V operation and a 30 A rating match common industrial needs. In practice, this translates to faster installs, simplified spares planning, and dependable power delivery for control panels and heavy machinery. Known for NEMA compatibility and robust thermoplastic housing, the 8332N also handles core-pack packaging for efficient stocking, making it a strong fit for OEM and MRO programs seeking durable plug solutions that reduce field failures.
Product Information
Extended Description
8332N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 30A, Industrial, 120/208V, Back wire, Gray, Brass, Thermoplastic, 18-30P, Four-pole, four-wire, non grounding, Screw, Thermoplastic, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
8332N
UPC
040893052991
Product Length/Depth
3.12 in
Product Height
3.81 in
Product Width
3.12 in
Product Weight
1.05 lb
Certifications
UL Federal Specification Classification 6233 01
Device type
Plug
Type
Plug
Amperage Rating
30A
Voltage rating
120/208 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
4
Number Of Poles
Four-pole
Style type
Power, Straight body
Material
Thermoplastic
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
18-30P
Torque rating
20-24 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic
Receptacle type
Four-pole, four-wire, non grounding
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section A
Eaton Specification Sheet - 8332N
Feature: 30 A at 120/208 V with four-pole, four-wire configuration. Benefit: Handles high-current applications with a compact footprint, reducing the need for parallel outlets and simplifying wiring in industrial equipment. Application: Control panels and heavy machinery. Feature: Back-wire and screw termination options with a torque rating of 20–24 lbf-in. Benefit: Secure, repeatable terminations that cut installation time and cut field rework costs. Application: Harsh environments where vibration or temperature changes threaten loose connections. Feature: Brass contact material in a thermoplastic body. Benefit: Improved conductivity with corrosion resistance and durable insulation for long life. Application: High-cycle industrial wear points. Feature: NEMA 18-30P compatibility and gray four-pole receptacle. Benefit: Streamlined integration with standard industrial power systems and rapid modernization of existing panels. Application: OEM and retrofit projects. Feature: Core pack packaging and 12–4 AWG wire compatibility. Benefit: Efficient stocking and flexible wiring options for maintenance crews. Application: MRO programs and field installations. Certifications: UL 6233 01 compliance reinforces industry standards and regulatory alignment. Application: Compliance monitoring and risk reduction in audits.
Get a Quick Quote for a Eaton 8332N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8332N?
Enquire Now
FAQs
The 8332N supports back-wire terminations with a screw connection, enabling quick, secure wiring in a four-pole, four-wire configuration. Use #12–4 AWG conductors and tighten to 20–24 lbf-in torque to ensure a reliable termination. This approach reduces wiring time and minimizes the risk of loose contacts that can cause overheating or arcing.
Yes. The 8332N is designed for NEMA 18-30P configurations, featuring four poles and four wires with non-grounding operation. It supports 120/208 V and is intended for heavy industrial use, making it a suitable match for control panels and equipment requiring a robust 30 A, four-wire connection.
The 8332N carries UL certification and Federal Specification 6233 01 compliance, indicating adherence to recognized safety and performance standards for industrial power connectors. This helps meet regulatory requirements, simplify audits, and reduce risk in OEM and maintenance applications.
Ideal for industrial power distribution in heavy machinery, control panels, and equipment that run on 30 A at 120/208 V. Its back-wire and screw terminations simplify field wiring, while the four-pole, four-wire configuration supports reliable, secure connections in rugged environments commonly found in manufacturing and processing facilities.
The combination of back-wire and screw termination reduces wiring time and labor costs, while the solid brass contacts and thermoplastic body improve reliability and longevity. This results in fewer field failures, lower maintenance intervals, and a faster return on investment for panel upgrades and equipment retrofits.
