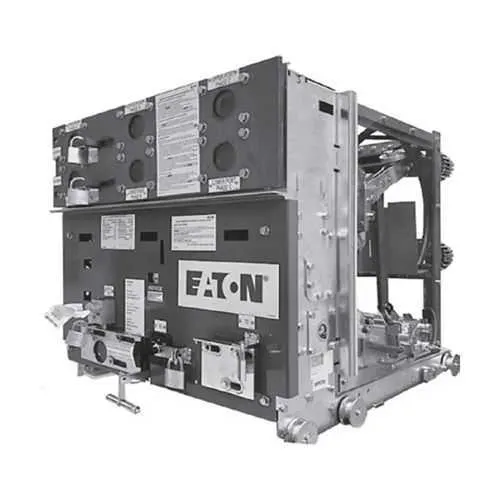

Eaton 83C4950G13 VCP-W Test Kit - 3000 A G&T Device
Part Number: 83C4950G13
Quick Summary
Eaton VCP-W test kit verifies high-capacity protection in switchgear for DC and AC distribution networks. Engineers struggle to test safely at high fault currents while maintaining regulatory compliance and controlling outage costs. This solution is designed to meet CE conformity and adhere to rigorous IEC safety standards, with potential compatibility for SIL‑rated and IP‑rated environments. For procurement teams, it delivers reliable performance, reduced testing time, and clear documentation, boosting efficiency in circuit protection verification and maintenance programs. By standardizing test workflows and providing a clear catalog path (83C4950G13), teams can shorten qualification cycles and improve project ROI.
Product Information
Extended Description
83C4950G13 Eaton: Eaton VCP-W test kit, 3000 A, 250 Vdc or 240 Vac G&T Device.
Product Name
Eaton VCP-W test kit
Catalog Number
83C4950G13
UPC
786689832155
Product Length/Depth
29.32 in
Product Height
27.88 in
Product Width
36.84 in
Product Weight
525 lb
High-current capability defines the core value of this kit. The 3000 A rating enables testing of heavy-duty protection schemes in switchgear and G&T devices, reducing the need for multi-stage or alternative test setups. This translates to faster commissioning and more accurate fault-condition verification in critical electrical networks. The kit also supports testing across both DC and AC systems (250 Vdc or 240 Vac), delivering versatile protection verification for diverse installations and simplifying procurement with a single, standardized solution. Its substantial footprint—measuring 29.32 in long, 36.84 in wide, and 27.88 in high at a 525 lb weight—provides a stable, floor-mounted platform, while space planning and proper ventilation ensure safe, long-term operation. Included training resources and comprehensive documentation accelerate installation and reduce commissioning risk. Together, these elements support improved maintenance cycles and regulatory compliance while lowering lifecycle costs.
Get a Quick Quote for a Eaton 83C4950G13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 83C4950G13?
Enquire Now
FAQs
The VCP-W test kit is designed for electrical protection verification in switchgear and G&T devices, supporting both DC and AC circuits (250 Vdc or 240 Vac). It suits medium to large installations and helps validate protective devices and circuit breakers before commissioning, reducing commissioning risk and improving test accuracy.
With a 3000 A capability, the kit handles high-current fault conditions, reducing the need for staged or multiple test setups. This improves test accuracy, shortens testing time, and enhances safety by providing a controlled, compliant test environment for high-current protection devices across diverse protection schemes.
The kit is designed to comply with CE marking and supports standard IEC safety practices for protection testing. While the exact certification suite isn't listed here, users should verify site compliance requirements and ensure compatible test protocols for their IEC-based systems to maintain regulatory alignment.
The unit measures 29.32 in long, 36.84 in wide, and 27.88 in high, weighing 525 lb. Plan for dedicated floor space with level access, adequate ventilation, and safe clearance for cables and maintenance. Ensure the installation area accommodates service access and future scalability.
Included is the multimedia resource 'Circuit Breakers Explained' along with Eaton's installation documentation to speed commissioning, reduce misconfiguration risk, and support ongoing maintenance for high-current protection test scenarios, helping teams ramp up quickly and sustain long-term performance.
