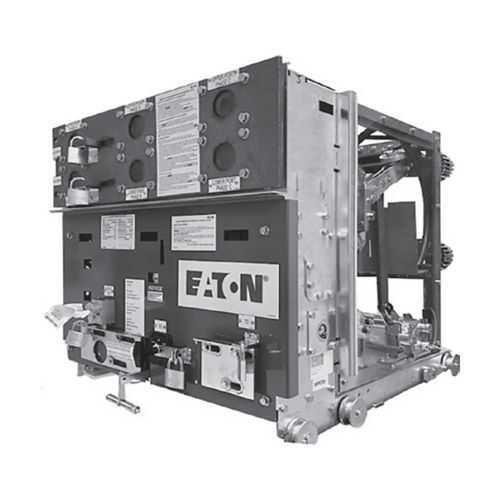

Eaton 83C4950G21 VCP-W test kit - 48 Vdc G&T Device
Part Number: 83C4950G21
Quick Summary
The Eaton VCP-W test kit enables on-site testing of VCP-W protection relays in DC power systems. Engineers often wrestle with downtime and inconsistent results when testing high-current protection devices in the field. While this data set doesn't list exact certifications, many deployments rely on CE safety compliance and consider SIL-rated controls and IP-rated enclosures in mission-critical environments. The kit's rugged cabinet design and documented performance deliver tangible business value, enabling faster commissioning and safer testing. With a 1200/2000 A current range and 48 Vdc operation, it supports realistic test scenarios and helps reduce the total cost of ownership for electrical protection programs.
Product Information
Extended Description
83C4950G21 Eaton: 1200/2000 A, 48 Vdc G&T Device
Product Name
Eaton VCP-W test kit
Catalog Number
83C4950G21
UPC
786689832070
Product Length/Depth
29.32 in
Product Height
27.88 in
Product Width
36.84 in
Product Weight
525 lb
High-current test capability enables direct validation of Eaton VCP-W protection schemes. With a 1200/2000 A current rating, the kit supports realistic fault simulations on 48 Vdc DC buses, reducing guesswork during commissioning. This translates to faster qualification of Eaton protection schemes in data centers, manufacturing lines, and energy storage installations. Safe 48 Vdc operation reduces risk to technicians and equipment during testing, enabling safer field trials and reducing arc-flash exposure. The integrated test harness and electrical isolation practices align with industry best practices, helping you meet safety and regulatory requirements more consistently. The rugged cabinet design and precise dimensions provide a stable, repeatable test platform that minimizes movement and measurement drift. Weighing 525 lb, with dimensions of about 29.32 in x 36.84 in x 27.88 in, it fits in dedicated test spaces and benefits from proper lifting equipment during installation. A multimedia training resource is included (Circuit Breakers Explained video), accelerating technician onboarding and reducing time-to-competency on Eaton protection hardware. Compatibility with Eaton VCP-W devices and a 48 Vdc DC bus ensures straightforward integration into existing protection architectures, improving procurement efficiency and reducing integration risk. The 83C4950G21 catalog number and UPC simplify asset tracking and spares planning. Industry-ready test capability supports large-current testing in controlled environments, enabling quicker fault-reproduction and faster troubleshooting, so teams can shorten commissioning windows and improve overall system reliability.
Get a Quick Quote for a Eaton 83C4950G21
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 83C4950G21?
Enquire Now
FAQs
The kit is designed to work with Eaton VCP-W protection relays and standard 48 Vdc DC bus configurations used in Eaton protection schemes. It provides a compatible test interface and mounting considerations, simplifying integration with your current Eaton protection hardware. Always confirm terminal and connector compatibility with your specific VCP-W model to ensure a smooth installation.
Key specifications include a 1200/2000 A current rating and 48 Vdc operating voltage, enabling realistic fault simulations across typical DC protection applications. The large cabinet footprint supports stable bench testing, and the included UPC and catalog data streamline procurement and asset management. These specs help reduce measurement drift and improve repeatability during field and shop tests.
Yes. The kit is purpose-built for heavy-current DC protection testing in data centers, manufacturing lines, and energy storage installations. Its high-current capability, integrated safety considerations, and documented dimensions support controlled testing in dedicated rooms or labs. Organizations benefit from faster commissioning, reduced downtime, and tighter control over protection settings across multiple shifts.
Explicit certifications are not listed in the provided data; check Eaton's documentation for CE safety compliance and any SIL or IP-related requirements relevant to your installation. When operating in regulated environments, verify enclosure ratings, shutdown reliability, and labeling to ensure alignment with your site’s safety program.
Maintenance involves routine inspection of connections, test harness integrity, and safety interlocks after heavy use. The on-site testing capability reduces field trips and downtime, accelerating fault reproduction and troubleshooting. The included training video shortens onboarding, while procurement via the catalog number improves asset utilization and overall return on investment.
