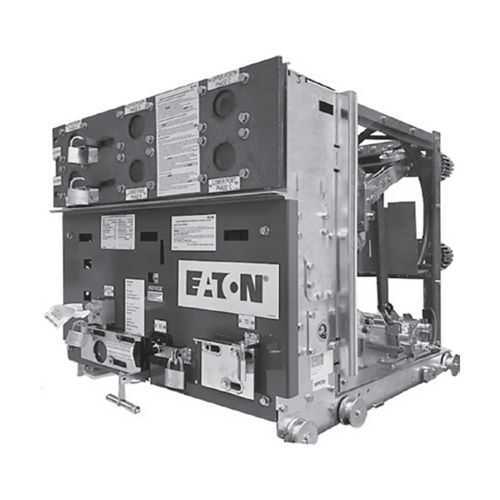

Eaton 83C4950G71 VCP-W test kit - G&T Device
Part Number: 83C4950G71
Quick Summary
Eaton 83C4950G71 VCP-W test kit is a high-current testing solution for validating VCP-W protective devices in electrical switchgear. Field engineers often face costly downtime and safety risks during on-site commissioning, and this kit streamlines verification with a portable, integrated test setup. When evaluating suppliers, consider certifications such as CE marking, SIL safety integrity levels, and IP ratings to ensure safe operation in harsh environments. Beyond compliance, the kit delivers reliability and speed in testing DC control circuits and protective relays, translating to faster project delivery, reduced rework, and stronger asset protection across industrial facilities.
Product Information
Extended Description
83C4950G71 Eaton: 1200/2000 A, 48 Vdc, G&T Device.
Product Name
Eaton VCP-W test kit
Catalog Number
83C4950G71
UPC
786689832162
Product Length/Depth
29.32 in
Product Height
27.88 in
Product Width
36.84 in
Product Weight
525 lb
Feature: High current capability supports 1200/2000 A tests. Business Impact: Enables accurate verification of large protection devices without improvisation, reducing commissioning time and limiting downtime. Application: Field and lab testing for heavy switchgear in data centers and industrial facilities. Feature: 48 Vdc control voltage interface. Business Impact: Safer, compatible control circuit testing with common DC control systems, lowering risk during setup. Application: DC-based protective relay and G&T testing workflows. Feature: G&T Device functionality. Business Impact: Facilitates specialized testing of ground and trip logic to ensure correct protection coordination. Application: Protective device verification in medium to high-power networks. Feature: Large footprint and rugged build (29.32 in x 36.84 in x 27.88 in; 525 lb). Business Impact: Stable, durable test platform suitable for lab benches or dedicated test bays; requires proper handling and space planning, improving safety and install efficiency. Application: Stationary test environment in industrial facilities. Feature: Clear procurement traceability (Catalog 83C4950G71, UPC 786689832162). Business Impact: Streamlined purchasing, consistent part numbers, and easier audits; reduces order errors. Application: Asset management and maintenance planning. Feature: Included training video Circuit Breakers Explained. Business Impact: Accelerates onboarding and knowledge transfer, lowering training costs. Application: New-hire training and facility-wide safety programs. Feature: Compatibility with Eaton VCP-W systems. Business Impact: Simplifies integration, reduces configuration time, and improves test repeatability. Application: System validation during upgrades or expansions in electrical protection schemes.
Get a Quick Quote for a Eaton 83C4950G71
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 83C4950G71?
Enquire Now
FAQs
The 83C4950G71 VCP-W test kit is designed to integrate with Eaton VCP-W protection systems and requires a suitable space for its 525 lb footprint (footprint roughly 29.32 in x 36.84 in x 27.88 in). Ensure 48 Vdc control interfaces are available and plan for lifting equipment or trained personnel during installation due to the unit’s size. Documentation and factory wiring diagrams support proper setup and safe operation within standard switchgear environments.
Key specifications include nominal current testing at 1200/2000 A and a dc control voltage of 48 V. Catalog number is 83C4950G71 with UPC 786689832162 for procurement traceability. The device is designed as a G&T test solution intended for high-current protective equipment validation, enabling accurate verification of trip and ground functions in Eaton VCP-W configurations.
Yes. The kit targets field commissioning and on-site verification of high-current protection devices, providing a portable, dedicated test setup. Its 1200/2000 A capability and 48 Vdc control interface align with typical Eaton VCP-W installations, helping electricians and engineers rapidly validate system performance while mitigating commissioning risk and downtime in industrial facilities.
Verify the appropriate safety and compliance markings for your application, including CE labeling, relevant SIL safety integrity levels, and IP ratings where exposure to dust or liquids is possible. While the data here provides model details and basic specs, confirm with Eaton documentation and your facility’s safety standards to ensure all regulatory requirements are met for your installation.
Maintenance focuses on routine inspection of power and control interfaces, safe handling of the heavy unit, and ensuring proper calibration alignment with your VCP-W system. ROI improves through reduced commissioning time, fewer field rework events, and accelerated personnel training thanks to included training materials like Circuit Breakers Explained. The kit’s reliability supports ongoing test accuracy and asset protection over the equipment lifecycle.
