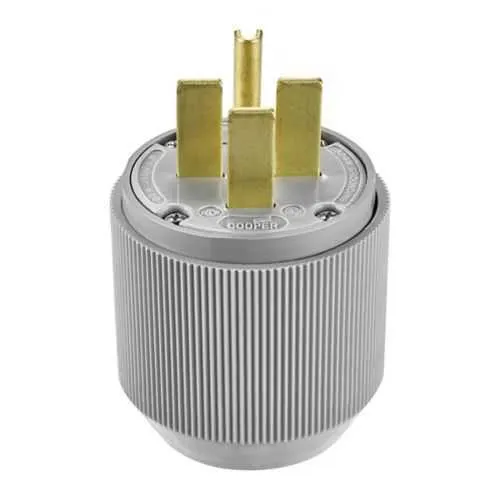

Eaton 8432N Extra Heavy-Duty Auto Grip Plug - 30A 250V
Part Number: 8432N
Quick Summary
Eaton Arrow Hart extra heavy-duty auto grip plug delivers rugged power connections for industrial range and dryer applications. When back-wire terminations loosen or corrosion threatens conductivity, downtime and maintenance costs rise. This plug is UL-listed and NOM-certified, meeting Federal Specification 6221 02 for critical safety and reliability. Its NEMA configuration 15-30P supports versatile, fast installations in industrial controls, helping OEMs streamline wiring and minimize downtime. Built for harsh environments, it combines a back-wire 4-wire setup with a durable nylon body to deliver consistent performance and long-term cost savings in demanding facilities.
Product Information
Extended Description
8432N Eaton: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 30A, Industrial, range and dryer, 250V, Back wire, Gray, Brass, Nylon, 15-30P, Three-pole, four-wire, grounding, Screw, Nylon, Core pack
Product Name
Eaton Arrow Hart extra heavy-duty auto grip plug
Catalog Number
8432N
UPC
040893021188
Product Length/Depth
3.12 in
Product Height
3.81 in
Product Width
3.12 in
Product Weight
1.05 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Plug
Type
Plug
Amperage Rating
30A
Voltage rating
250V
Contact material
Brass
Application
Industrial, range and dryer
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back wire
Number of wires
4
Number Of Poles
Three-pole
Style type
Power, Straight body
Material
Nylon
Packaging type
Core pack
Color
Gray
Connection type
Screw
Allowable wire size
#12-4 AWG
NEMA configuration
15-30P
Torque rating
20-24 lbf-inch
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Three-pole, four-wire, grounding
Flush mount receptacles sell sheet
Arrow Hart Buyers Guide Section A
Eaton Specification Sheet - 8432N
Feature: Extra heavy-duty auto grip plug construction provides a secure, vibration-resistant connection. Business Impact: reduces field failures and warranty costs while enabling reliable power delivery in dynamic industrial equipment. Application: ideal for heavy-use throttle and motor-driven ranges and dryers in manufacturing lines. Feature: Back-wire termination supports #12-4 AWG, enabling quick, error-free terminations. Business Impact: lowers installation labor, minimizes wiring mistakes, and speeds panel wiring. Application: control panels and power distribution where fast, dependable wiring is essential. Feature: Three-pole, four-wire grounding with NEMA 15-30P configuration ensures a complete ground path. Business Impact: enhances personnel safety and regulatory compliance in high-power installations. Application: industrial equipment requiring robust grounding in harsh environments. Feature: Nylon body with brass contacts offers chemical resistance and durability. Business Impact: extends service life in damp, dusty plants and reduces maintenance cycles. Application: range and dryer connections in manufacturing and processing facilities. Feature: Torque rating of 20–24 lbf-in supports proper screw termination. Business Impact: ensures secure connections that resist vibration and loosening over time. Application: field-installable plugs in motor control and industrial power systems. Feature: Certifications including UL, NOM, and Federal Specification 6221 02 provide compliance assurance. Business Impact: simplifies procurement and ensures adherence to stringent safety standards. Application: regulated industrial sectors where formal certification is mandatory.
Get a Quick Quote for a Eaton 8432N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8432N?
Enquire Now
FAQs
The 8432N uses back-wire termination for #12-4 AWG conductors, enabling fast, secure terminations without needing lugs or splice kits. This simplifies panel wiring, reduces field labor, and minimizes the risk of wire insulation damage during terminations, which translates to faster installs and lower defect rates on high-volume electrical assemblies.
Yes, the 8432N carries UL listing and NOM certification, aligned with Federal Specification 6221 02. These certifications indicate compliance with essential safety, performance, and reliability criteria for industrial power connectors used in ranges, dryers, and other heavy-duty equipment.
The 8432N is a three-pole, four-wire configuration with a 15-30P NEMA arrangement. This setup provides a grounded, four-conductor pathway suitable for industrial power distribution to motors, dryers, and other high-draw appliances in manufacturing environments.
With a torque rating of 20–24 in-lbf, the 8432N ensures terminations are tightened to spec, minimizing looseness due to vibration and thermal cycling. This improves connection integrity, reduces arcing risk, and prolongs both plug and receptacle life in continuous-operation facilities.
The plug’s nylon body and brass contacts resist chemical exposure and wear, lowering maintenance frequency. Its robust construction and secure back-wire connections reduce downtime and field service costs, delivering a favorable total cost of ownership for equipment operating in harsh plants, processing lines, and heavy-duty electrical installations.
