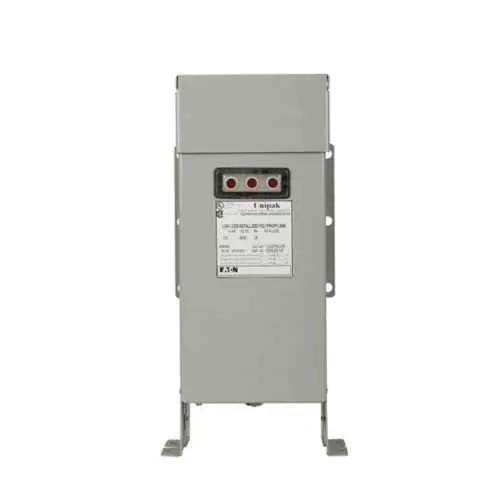

Eaton 843PMURN LV Unipak capacitor bank - CSA UL Listed
Part Number: 843PMURN
Quick Summary
Eaton LV Unipak capacitor bank 843PMURN provides fixed reactive power for three-phase power factor correction in industrial plants. Facility teams often face energy penalties and retrofit challenges when upgrading older equipment, making a compact, reliable solution essential. CSA Certified and UL Listed ensure regulatory safety, while the NEMA 1/NEMA 3R enclosure supports indoor and outdoor installations. Designed for 480 V systems with 9.6 A and 8 kVAR rating, this unit delivers dependable performance with minimal maintenance, helping facilities reduce energy costs and improve voltage stability. The compact 14 gauge steel frame with powder coat finish further simplifies retrofits and long-term service life.
Product Information
Extended Description
843PMURN Eaton: Eaton LV Unipak capacitor bank, UNIPAK, Low Voltage Fixed Capacitor Banks, 9.6A, 480V, Three-phase, 8 kVAR, Unprotected, Non-fused, 14 ga. steel finished with durable powder coat finish, A1 Frame
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
843PMURN
UPC
782116075737
Product Length/Depth
5.254 in
Product Height
17.3 in
Product Width
8.5 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Catalog Notes
Multiply the 240V kVAR rating by 0.75 to calculate the kVAR value at 208V.
Type
UNIPAK
Amperage Rating
9.60A
Phase
Three-phase
Product Category
Low Voltage Fixed Capacitor Banks
Voltage rating
480 V
Enclosure
NEMA 1, NEMA 3R
Enclosure material
14 gauge steel finished with durable powder coat finish
Frame size
A1
Protection
Non-fused
Rating
8 kVAR
Feature: UNIPAK three-phase low voltage fixed capacitor bank delivers 8 kVAR at 480 V with a 9.6 A operating current. Business Impact: Enables targeted power factor correction, reducing facility energy penalties and improving overall efficiency. Application: Ideal for manufacturing lines, pumps, and other motor-driven loads in industrial environments. Feature: Durable enclosure—14 gauge steel with powder coat, rated for indoor and outdoor use (NEMA 1, NEMA 3R). Business Impact: Provides reliable protection against dust and weather, minimizing maintenance and downtime. Application: Retrofit into existing switchgear or new installations in plants, warehouses, and outdoor equipment bays. Feature: Non-fused protection and unprotected configuration. Business Impact: Simplifies installation and lowers upfront cost; provides flexible integration with protective devices chosen by the system designer. Application: Suitable for controlled environments where external protection devices are used upstream. Feature: Frame size A1, compact form with 14 ga steel. Business Impact: Lightweight yet sturdy supports easy handling and mounting, reducing installation time. Application: Rack-mount or side-by-side bank installations in switchrooms and equipment rooms. Feature: Catalog notes for 240 V to 208 V correction (multiply by 0.75). Business Impact: Extends usable range without redesign, enabling use in facilities with voltage variations. Application: Utilities and facilities with mixed voltage profiles or uneven supply. Feature: Certifications CSA Certified UL Listed. Business Impact: Verifies compliance with safety and electrical standards, streamlining procurement and QA. Application: Projects requiring formal approvals and supplier qualification in North America. Feature: Warranty policy: one year from installation or 18 months from shipment. Business Impact: Provides protection against manufacturing defects and supports total cost of ownership. Application: Essential for maintenance planning and ROI calculations during procurement. Feature: Weight 20 lb, dimensions 5.254 in depth, 17.3 in height, 8.5 in width. Business Impact: Compact footprint supports flexible placement and minimal space requirements. Application: Retrofit in crowded electrical rooms or space-constrained installations.
Get a Quick Quote for a Eaton 843PMURN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 843PMURN?
Enquire Now
FAQs
The unit uses a compact 14 gauge steel frame with a powder-coated finish and weighs about 20 lb, enabling flexible mounting in commonly sized electrical rooms. It is enclosed in a NEMA 1, NEMA 3R housing suitable for indoor and outdoor use. Plan for 480 V supply and three-phase connections, and account for a non-fused protection scheme as configured by the system designer.
Catalog notes indicate to convert 240 V kVAR values for 208 V operation by multiplying the 240 V kVAR rating by 0.75. For this 8 kVAR bank, that corresponds to approximately 6 kVAR at 208 V, preserving the corrective effect while accommodating voltage variations in the site supply.
Yes. The 843PMURN employs an enclosure rated for indoor and outdoor environments (NEMA 1, NEMA 3R), and its powder-coated 14 gauge steel frame provides durable protection against weather and dust, making it suitable for outdoor or semi-exposed installations when properly mounted.
The unit is CSA Certified and UL Listed, signaling compliance with North American safety and performance standards. These certifications simplify procurement, regulatory approvals, and quality assurance, particularly for industrial facilities and data centers with strict supplier qualification requirements.
A one-year warranty from installation or 18 months from shipment helps cover early defects, while the robust powder-coated steel enclosure and non-fused design reduce maintenance time and upfront wiring requirements. Expect energy savings from improved power factor and reduced penalties, with a straightforward upgrade path for retrofit projects in motor-driven applications.
