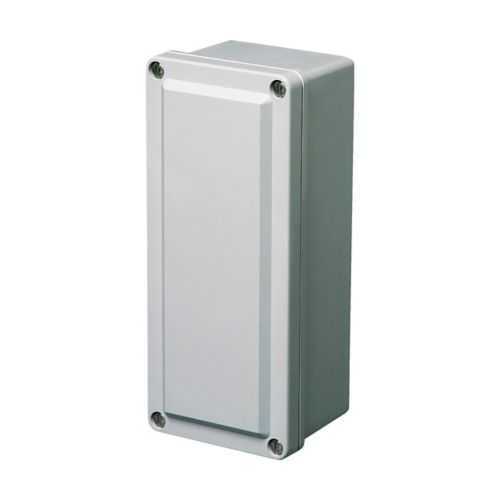

Eaton 844-4XFSC JIC Panel Enclosure - NEMA 4X Rated
Part Number: 844-4XFSC
Quick Summary
Eaton 844-4XFSC JIC Panel Enclosure is a fiberglass wall-mount solution that protects electrical controls in industrial environments. It provides reliable containment for control circuits while minimizing space usage on busy plant walls. A common challenge is keeping components safe from dust, moisture, and corrosion without sacrificing service access, especially in retrofit projects. This enclosure carries UL 50, NEMA 4X, and CSA C22.2 certifications to substantiate safety and performance in demanding facilities. By combining a rugged seal with a lightweight frame, it supports quick installation and straightforward maintenance. The unit is well-suited for control panels, electrical rooms, and outdoor installations where durability and ease of use drive uptime and total cost of ownership improvements.
Product Information
Extended Description
844-4XFSC Eaton: Eaton B-Line series JIC panel enclosure, 8.41" height, 3.14" length, 3.63" width, NEMA 4X, Screw cover, 4XFSC enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
844-4XFSC
UPC
782051523423
Product Length/Depth
3.14 in
Product Height
8.41 in
Product Width
3.63 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFSC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
Optional external mounting feet
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers superior corrosion resistance, extending enclosure life in humid or chemical environments. This reduces maintenance costs and minimizes downtime, making it ideal for outdoor plant floors or washdown areas where metal enclosures may degrade. The NEMA 4X rating provides dependable protection against water, dust, and corrosion while maintaining electrical integrity during harsh service conditions. Wall mounting with optional external feet enables space-saving layouts and retrofit flexibility, supporting rapid deployments in tight or retrofitted facilities. A seamless poured-in-place gasket and screw-cover door delivers a reliable seal, lowering ingress risk and simplifying routine inspections. With a compact 8.41 in height and 3.63 in width, the enclosure fits crowded electrical rooms without compromising accessibility. Compatibility with the Eaton B-Line series ensures straightforward integration with existing panels and accessories, reducing installation time and optimizing total cost of ownership.
Get a Quick Quote for a Eaton 844-4XFSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 844-4XFSC?
Enquire Now
FAQs
The 844-4XFSC is designed for wall mounting with optional external mounting feet. Start by selecting a flat wall surface, verify level mounting points, and attach feet or directly mount the enclosure using approved fasteners. Ensure the gasket is seated correctly and the screw cover is closed securely to preserve the NEMA 4X seal. This approach minimizes retrofit time and preserves the enclosure’s protective performance.
Yes. The enclosure is rated NEMA 4X and built from fiberglass, providing corrosion resistance and protection against dust, moisture, and washdown conditions. UL 50 and CSA C22.2 certifications further confirm its suitability for outdoor or challenging indoor environments where reliability and long service life are critical.
The 844-4XFSC carries UL 50, NEMA 4X, and CSA C22.2 certifications. These standards validate enclosure integrity, temperature tolerance, and weather resistance, ensuring compliance for electrical safety, hazardous area considerations, and regulatory procurement requirements. For industrial projects, these certifications support risk reduction and smoother audits.
Optional external mounting feet simplify mounting on uneven walls or retrofit sites, while a seamless gasket and screw-cover door enhance seal integrity and reduce ingress risks. Fiberglass construction provides durability with light weight, enabling easier handling during installation and faster service access for routine inspections or upgrades.
By combining corrosion resistance, reliable NEMA 4X protection, and a quick-install design, the 844-4XFSC minimizes maintenance, reduces downtime, and extends panel life in harsh environments. Its compatibility with the Eaton B-Line ecosystem ensures scalable integration with existing control architectures, delivering lower total cost of ownership and faster project turnaround.
