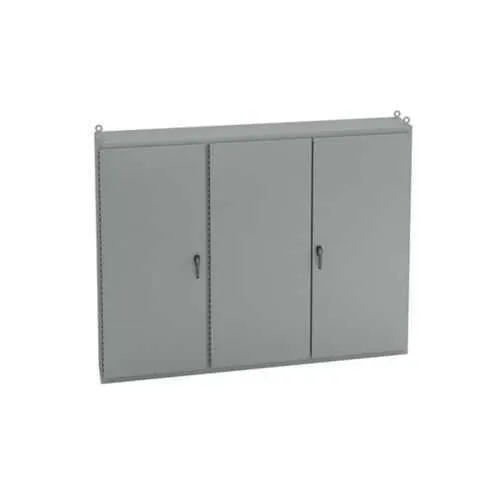

Eaton 8618714-12FS Panel Enclosure System - NEMA 12
Part Number: 8618714-12FS
Quick Summary
Eaton 8618714-12FS Panel Enclosure System is a ground-mounted NEMA 12 enclosure for industrial control panels, built to withstand harsh shop floors. Facility downtime and wiring damage are costly; this enclosure helps control dust ingress, moisture, and security with a rugged hinged cover, 12-gauge steel, and oil-resistant gasket. Certified to UL 508A, CSA C22.2, and NEMA, it supports critical compliance for electrical rooms, process lines, and machine installations across manufacturing facilities. With a commanding footprint, a durable ANSI 61 gray paint finish, and a design that accommodates large assemblies, it enables scalable control architectures while minimizing maintenance costs. This combination translates to faster service, safer operations, and long-term cost savings.
Product Information
Extended Description
8618714-12FS Eaton: Eaton B-Line series ground mounted panel enclosure, 86" height, 14" length, 187" width, NEMA 12, Hinged cover, 12FS enclosure, Ground mount, Large single door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series type 12 panel enclosures
Catalog Number
8618714-12FS
UPC
782051830187
Product Length/Depth
14 in
Product Height
86 in
Product Width
187 in
Product Weight
2184.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
12 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Large single door
Model
12FS enclosure
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key lock padlock provision
Closure type
Hinged
Special features
3-pt latching handle
NEMA Rating
12
Country of origin
US
Feature: Ground-mounted configuration with a large single-door enclosure. Business impact: Provides secure, floor-ready integration for large control panels, improving accessibility for maintenance and upgrades. Application: Ideal for machine rooms and factory floors where space is limited but panel size is substantial. Feature: 12-gauge carbon steel with oil-resistant gasket and painted ANSI 61 gray finish. Business impact: Delivers durable protection against dust, moisture, and chemical exposure, reducing corrosion risk and repaint cycles. Application: Harsh manufacturing environments and process lines requiring long service life. Feature: Hinged cover with 3-point latching handle and key lock padlock provision. Business impact: Enhances security and tamper resistance while enabling controlled access during maintenance. Application: Electrical rooms and unattended facilities. Feature: NEMA 12 rating with UL 508A and CSA C22.2 certifications. Business impact: Ensures regulatory compliance and safe operation, mitigating risk of non-compliance penalties. Application: Regulated industrial installations across facilities. Feature: Ground mounting with no mounting provisions; weight and dimensions require proper planning. Business impact: Encourages precise site prep, fall protection, and handling plans, reducing installation errors. Application: New builds and retrofit projects where heavy cabinets must be anchored securely. Industry context: Compatible with Eaton B-Line family accessories to optimize cable management and mounting, helping integrators deliver complete, standards-compliant solutions.
Get a Quick Quote for a Eaton 8618714-12FS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 8618714-12FS?
Enquire Now
FAQs
The 8618714-12FS is a ground-mounted enclosure with no mounting provisions, so plan to use a compatible base or Eaton mounting kits. Verify anchor spacing and gasket integrity to preserve the NEMA 12 seal and weight loading (2184.3 lb). For retrofit projects, consult Eaton’s mounting accessory catalog to ensure proper fit and clearance for service access.
This enclosure uses 12-gauge carbon steel with an oil-resistant gasket and ANSI 61 gray painted finish. It is rated NEMA 12 and certified to UL 508A and CSA C22.2, providing dust and limited-liquid protection along with recognized safety standards for industrial control panels.
NEMA 12 is intended for indoor use in general industrial settings with protection against dust and non-hazardous water exposure. For outdoor or wet/dust-prone locations, consider higher ratings such as NEMA 4X or IP-rated alternatives and appropriate climate conditioning or sealing accessories.
The enclosure carries UL 508A and CSA C22.2 certifications along with a NEMA 12 rating. These certifications confirm electrical safety and suitability for non-hazardous indoor environments, ensuring regulatory compliance and smoother procurement for regulated facilities.
The rugged carbon steel construction with a hinged door and oil-resistant gasket reduces corrosion risk and maintenance frequency. While initial handling is heavy (over 2,100 lb), secure installation minimizes downtime and costly panel replacements, providing a favorable total cost of ownership for long-term control system reliability.
