Eaton 864-1 Panel Enclosures Type 1 - NEMA 1, ANSI 61 Gray
Part Number: 864-1
Quick Summary
Eaton 864-1 panel enclosures deliver Type 1 protection for control panels in indoor industrial and commercial environments. This compact, wall-mounted solution addresses common panel-access and wiring challenges encountered during upgrades or new installations. With UL 50, CSA C22.2 and NEMA-rated performance, these enclosures meet essential compliance requirements while delivering dependable protection. The ANSI 61 gray painted carbon steel housing combines durability with a cost-effective footprint, enabling faster installations and predictable maintenance in busy production lines and switchgear rooms.
Product Information
Extended Description

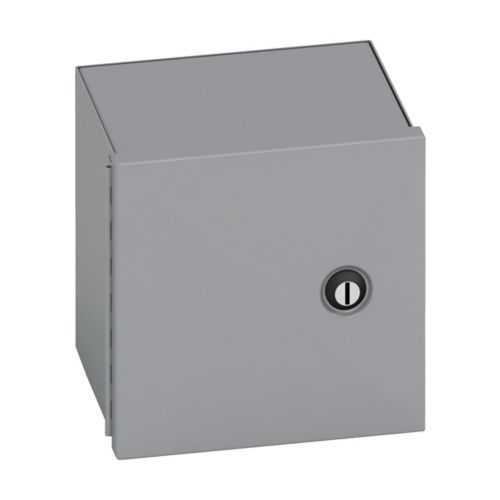

864-1 Eaton: Eaton B-Line series Type 1 panel enclosures, 8" height, 4" length, 6" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Small single door, Thru holes, Carbon steel
Product Name
Eaton B-Line series Type 1 panel enclosures
Catalog Number
864-1
UPC
782051792102
Product Length/Depth
4 in
Product Height
8 in
Product Width
6 in
Product Weight
4.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
1 enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Thru holes
Closure type
Hinged
NEMA Rating
1
Country of origin
US
Feature → Business Impact → Application: The Type 1 enclosure provides robust dust and dirt protection for indoor control panels, reducing component wear and unplanned downtime in manufacturing lines. This translates to lower maintenance costs and improved line availability, especially in open-floor areas where particulate exposure is common. Application-wise, it’s ideal for machine control cabinets and panel boards in food packaging, plastics, and packaging lines where clean indoor environments dominate. Feature → Business Impact → Application: Carbon steel construction with 16-ga wall thickness and ANSI 61 gray painted finish delivers a durable shell that withstands routine handling and impact events on the factory floor. The result is lower replacement cycles and more predictable lifecycle costs, supporting total cost of ownership planning for automation projects. Use it in environments where standard corrosion resistance and a clean aesthetic are valued, such as assembly benches and service kiosks. Feature → Business Impact → Application: Hinged cover, thru holes, and wall-mount capability enable fast access for wiring, diagnostics, and component replacement. This reduces installation and service time, accelerating changeovers and maintenance windows. Suitable for wall-mounted control panels in compact spaces where accessibility and neat cable routing are essential. Feature → Business Impact → Application: Small single-door design with a practical 8 in height, 6 in width, and 4 in depth footprint optimizes space in crowded control rooms and near conveyors. Its compact form supports modular factory layouts and quick reconfiguration of automation zones, especially in retrofit projects. Feature → Business Impact → Application: UL 50, CSA C22.2, and NEMA 1 certification provide regulatory and safety assurance for indoor installations. Compliance reduces project risk and simplifies procurement for systems integrating with standardized automation components, panels, and switchgear, fostering faster procurement cycles and consistent safety practices. Feature → Business Impact → Application: Finish, color, and mounting compatibility with common accessories enable straightforward integration with existing enclosures and wiring ducts. This minimizes customization, reduces lead times, and supports scalable automation architectures across multiple line cells.
