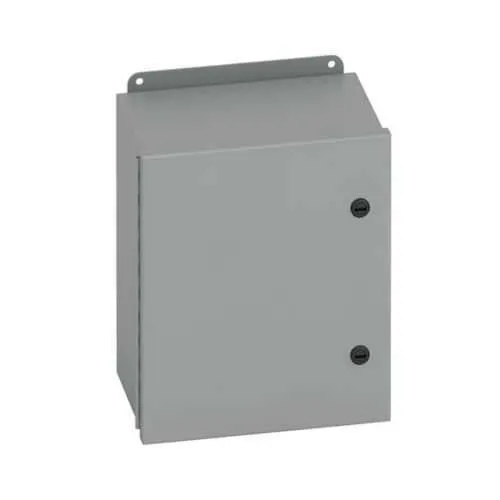

Eaton 864-4QT JIC panel enclosure - NEMA 4
Part Number: 864-4QT
Quick Summary
The Eaton 864-4QT JIC panel enclosure protects electrical controls in harsh industrial environments while fitting compact wall-mount layouts. This unit addresses common space constraints and accessibility challenges by delivering a sturdy, easy-to-assemble housing that simplifies panel installation. With UL 50 and CSA C22.2 certifications and a NEMA 4 rating, it offers reliable ingress protection and weather resistance for indoor and damp locations. Built for repeatable maintenance and scalable infrastructure, this enclosure supports standard B-Line accessories and quick access to mounted components, delivering long-term operational efficiency and reduced downtime in your control panels.
Product Information
Extended Description
864-4QT Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 6" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4QT
UPC
782051881684
Product Length/Depth
4 in
Product Height
8 in
Product Width
6 in
Product Weight
4.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
Feature → Business Impact → Application: The 864-4QT uses 16 gauge carbon steel with a seamless poured-in-place gasket, delivering robust corrosion resistance and a tight seal that reduces dust and moisture ingress. This improves equipment reliability and extends service intervals in manufacturing lines and processing plants. Application: Ideal for wall-mounted control panels in automotive, food & beverage, and general industrial settings where compact form factors and reliable sealing are required. Feature → Business Impact → Application: Hinged cover with continuous piano hinge ensures effortless, full-length access while maintaining panel integrity during frequent servicing. This design reduces maintenance time and helps technicians quickly reach wiring terminations in space-limited enclosures. Application: Food-grade production lines and packaging facilities where frequent access is necessary without compromising enclosure protection. Feature → Business Impact → Application: External mounting feet enable versatile installation on varied wall profiles and mounting surfaces, saving layout time and enabling rapid retrofits. Application: Retrofit projects in warehouse automation or utility panel rooms where existing walls vary in thickness and alignment. Feature → Business Impact → Application: Includes 1/4 turn latches and panel mount capability for secure closure and straightforward integration with interior components. This minimizes latch adjustments and improves enclosure integrity under vibration. Application: Control cabinets on conveyors and material handling equipment. Feature → Business Impact → Application: ANSI 61 gray painted finish with carbon steel construction balances visibility, longevity, and cost, supporting standardization across multiple sites. Application: Global manufacturing networks seeking uniform enclosure aesthetics and predictable maintenance needs. The enclosure’s compatibility with standard B-Line accessories ensures scalable, future-proof installations, while UL 50 and CSA C22.2 listings confirm compliance with essential electrical safety requirements.
Get a Quick Quote for a Eaton 864-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4QT?
Enquire Now
FAQs
The 864-4QT is designed for wall mounting and features external mounting feet to accommodate varied wall profiles. This enables quick, secure installation in confined control rooms or equipment bays while preserving easy access to internal components during maintenance.
Dimensions are 8 in (H) × 6 in (W) × 4 in (D) with a 16-gauge carbon steel wall, ANSI 61 gray finish, and a seamless gasket. It carries a NEMA 4 rating and UL/CSA listings, ensuring weather resistance and reliable electrical protection in diverse environments.
Yes. With a NEMA 4 rating and UL 50/CSA C22.2 certifications, the enclosure provides protection against dust, water ingress, and light outdoor exposure when properly mounted, making it suitable for indoor and damp outdoor areas.
The enclosure is UL 50 and CSA C22.2 listed with a NEMA 4 rating. These certifications verify enclosure integrity, safety, and suitability for electrical control applications, helping meet regulatory requirements and simplifying commissioning in industrial facilities.
Its hinged cover, continuous piano hinge, 1/4 turn latches, and external feet reduce installation and service time, improving uptime. The standardization with B-Line accessories supports scalable, cost-effective upgrades across sites, delivering predictable maintenance costs and faster panel upgrades.
