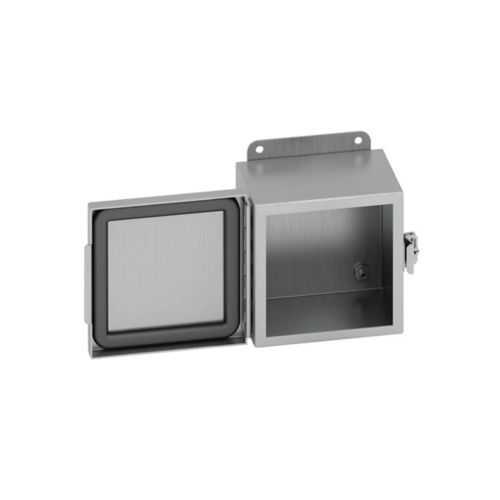

Eaton 864-4XACHC JIC Panel Enclosure - NEMA 4X
Part Number: 864-4XACHC
Quick Summary
The Eaton 864-4XACHC JIC panel enclosure is a rugged wall-mount housing designed to protect electrical controls in harsh industrial environments. It addresses downtime and equipment exposure by providing a sealed, corrosion-resistant enclosure that withstands washdowns and dust. Certifications UL 50, CSA C22.2, and a NEMA 4X rating underpin its reliability and compliance for demanding facilities. This enclosure delivers long-term protection with a lightweight aluminum body and a hinged cover, while integrating smoothly with standard B-Line accessories and compact control layouts to optimize space and efficiency in your electrical infrastructure.
Product Information
Extended Description
864-4XACHC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 6" width, NEMA 4X, Hinged cover, 4XACHC enclosure, Wall mount, Small single door, External mounting feet, Aluminum, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XACHC
UPC
782051702927
Product Length/Depth
9 in
Product Height
13 in
Product Width
0.106 in
Product Weight
2.3 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Aluminum
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XACHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Aluminum construction with 14 gauge wall thickness offers excellent corrosion resistance and structural integrity, translating to longer service life and reduced maintenance in outdoor and harsh environments. The NEMA 4X rating provides dependable protection against dust, water, and corrosion, helping facilities pass inspection and minimize unplanned downtime. A hinged cover and external mounting feet enable quick, tool-free access and flexible installation, accelerating panel servicing and reducing labor costs. The small single-door design supports compact control layouts, while the seamless gasket provides a reliable seal for washdowns and demanding environments. Cont. piano hinge, panel mount provisions, and stainless steel door clamps enhance durability and secure operation during frequent access. Finishes of #4 brushed gray offer an aesthetically pleasing, low-maintenance surface compatible with industrial environments and mounting rails.
Get a Quick Quote for a Eaton 864-4XACHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XACHC?
Enquire Now
FAQs
Install the enclosure on a suitable wall using external mounting feet for stable support. Ensure the surface is clean and level, then secure with appropriate fasteners. The hinged cover provides easy access, and the gasket should be inspected and seated to maintain the NEMA 4X seal. This design supports straightforward integration with standard B-Line accessories for rapid deployment.
The enclosure carries UL 50, CSA C22.2 certifications and a NEMA 4X rating. These indicate compliance with electrical safety standards and proven protection against dust, moisture, and corrosion. Meeting these certifications reduces risk, simplifies procurement for regulated facilities, and supports safe outdoor or washdown installations.
The unit features a 9 inch depth and 13 inch height, with a compact form designed for space-constrained installs. It weighs about 2.3 pounds, making it relatively easy to handle during installation while maintaining the durability of a metal enclosure. The 14 gauge aluminum construction provides sturdy protection without excessive bulk.
Yes. The NEMA 4X rating indicates robust protection against dust, water, and corrosion, making it appropriate for outdoor and washdown environments. The seamless gasket and aluminum construction further enhance durability, reducing maintenance needs and extending service life in demanding industrial settings.
The enclosure uses a hinged cover with a continuous piano hinge and stainless steel door clamps, enabling durable, long-lasting door operation. External mounting feet simplify mounting and service access, while the small single-door design optimizes space. These features together support efficient maintenance cycles and secure, dependable operation in busy control environments.
