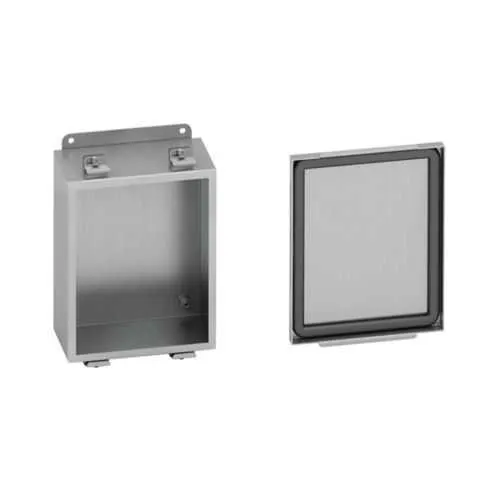

Eaton 864-4XALC JIC panel enclosure - NEMA 4X
Part Number: 864-4XALC
Quick Summary
The Eaton 864-4XALC JIC panel enclosure provides rugged aluminum housing for electrical control panels in demanding environments. Engineers often contend with corrosion, moisture, and space constraints that complicate mounting and maintenance. UL 50, CSA C22.2, and NEMA 4X ratings underpin robust protection and regulatory compliance in harsh installations. Its wall-mounted design with external feet and a tight gasket delivers fast, secure installation, reliable sealing, and long-term asset protection, while aligning with Eaton’s B-Line workflows to streamline project execution and reduce lifecycle costs.
Product Information
Extended Description
864-4XALC Eaton: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 6" width, NEMA 4X, Screw cover, 4XALC enclosure, Wall mount, Small single door, External mounting feet, Aluminum, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
864-4XALC
UPC
782051700985
Product Length/Depth
4 in
Product Height
8 in
Product Width
6 in
Product Weight
2.4 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Aluminum
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XALC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4X
Country of origin
US
Feature → Business Impact → Application: Aluminum 14-gauge wall-thick enclosure delivers durable, corrosion-resistant housing that withstands washdowns and HVAC exposure, reducing long-term replacement costs. Application: Ideal for small control panels in manufacturing lines, packaging machinery, and utility equipment. Feature → Business Impact → Application: NEMA 4X rating provides weatherproof and dust-tight protection, enabling outdoor installation and washdown readiness, lowering environmental risk and compliance overhead. Application: Outdoor racks, production floors, and outdoor control housings. Feature → Business Impact → Application: Screw cover with seamless poured-in-place gasket maintains enclosure integrity through door cycles, ensuring ingress protection without frequent resealing. Application: Enclosures in vibration-intensive environments. Feature → Business Impact → Application: External mounting feet and wall-mount design simplify installation and serviceability, reducing site deployment time. Application: Retrofit and new-build installations in factory settings. Feature → Business Impact → Application: Panel mount provisions and stainless door clamps support serviceability and security, enabling future upgrades with minimal disruption. Application: Modular control panels in regulated facilities.
Get a Quick Quote for a Eaton 864-4XALC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 864-4XALC?
Enquire Now
FAQs
Yes. The enclosure is designed for wall mounting with external feet, providing a secure, vibration-resistant installation on vertical surfaces in busy facilities. External feet simplify alignment, allow precise positioning, and accommodate common mounting hardware. This design reduces on-site labor, speeds commissioning, and minimizes risk of door misalignment or panel wobble during operation in harsh environments.
The enclosure measures 8 in high, 6 in wide, and 4 in deep, with a mass of approximately 2.4 lb. Constructed from 14-gauge aluminum, it preserves strength while keeping a compact footprint suitable for space-constrained control panels in manufacturing or process facilities. Maintaining precise tolerances and a weatherproof seal ensures consistent electrical performance across temperature swings.
Industries such as automotive, food and beverage, plastics, and general manufacturing benefit from this enclosure's corrosion resistance and small footprint. It is ideal for mounted control panels, motor starters, and electrical distribution near equipment where washdown or outdoor exposure occurs. The external feet support quick retrofits, while the screw cover and gasket deliver reliable protection against dust and moisture.
The enclosure carries UL 50 and CSA C22.2 certifications and a NEMA 4X rating, confirming electrical safety and weather resistance for harsh environments. This combination supports regulatory compliance and audit readiness, while the US origin and alignment with B-Line standards simplify supplier qualification and installation planning.
Maintenance costs are lowered through a durable aluminum build, stainless door clamps, and a gasketed seal that resists wear through repeated access. The enclosure’s compact size reduces cabinet space needs, while easy mounting and service access speed maintenance tasks and reduce downtime, delivering a favorable total cost of ownership in automation projects. Compatibility with existing B-Line components minimizes integration expenses and spare-part inventories, supporting faster startup and improved uptime.
